Description

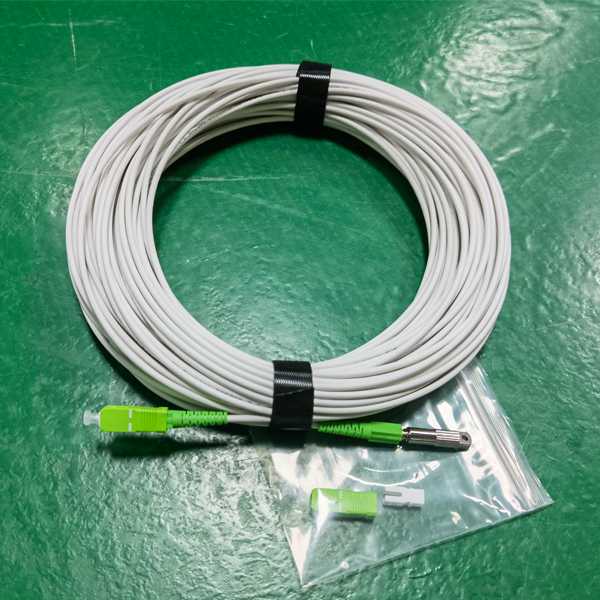

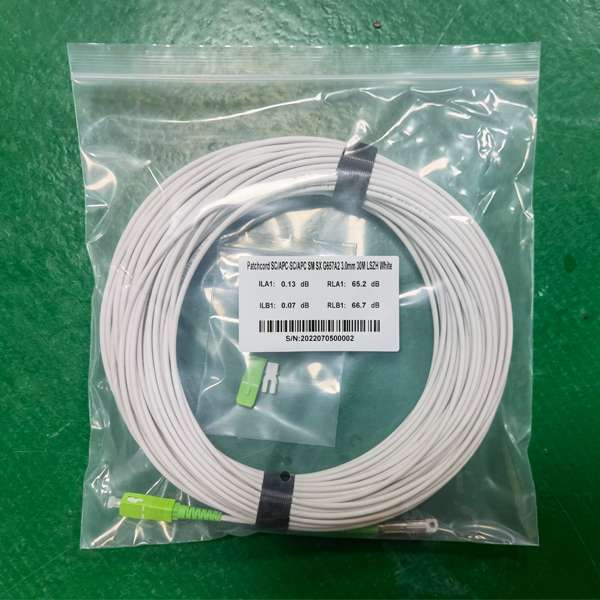

Yingda Pushable patch cords are pre terminated and polished SC connectors with a wall protective sleeve or case, after being pushed or pulled through a wall hole or microduct, the smooth wall protective sleeve is easily removed and an outer housing is snapped into place. The whole process dont need a fusion splicer or other fiber optic tools, easy to operate.
Pushable Patch Cord Features
- All patch cords meet GR-20, GR-326 and GR-1435 standards
- Available in SC/UPC, SC/APC connectors with 3mm boot

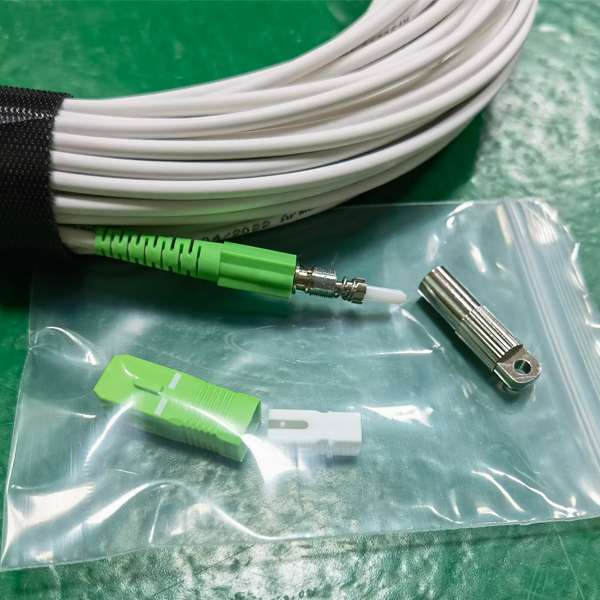

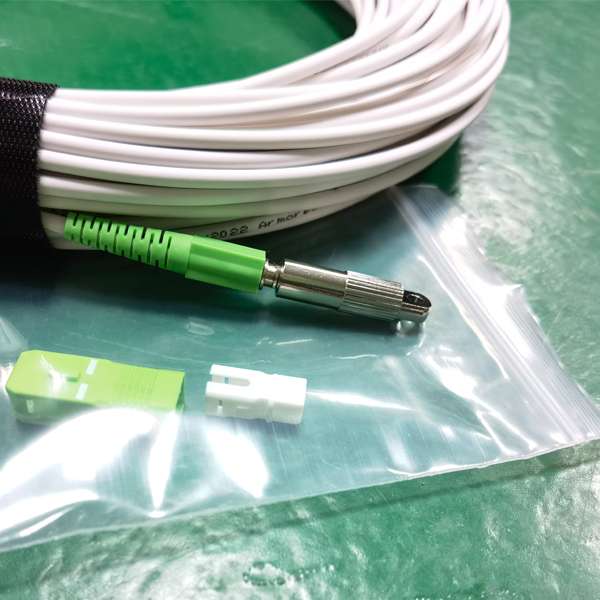

- Metal wall protection sleeve is easily removed and outer housing is snapped into place.
- Tool-less installation , tech friendly, decrease deployment time and reduce the installation cost
- Best choice for microduct, wall through, pipeline fiber optic cabling
Pushable Patch Cord Technical Specifications
| Connector type | SC |
| Fiber count | 1 core |
| Polish method | UPC, APC, PC |
| Protective sleeve material | Metal |
| Insertion loss | ≤0.3dB |
| Return loss | UPC≥50dB, APC≥60dB, PC≥30dB |
| Ferrule material | Ceramic |
| Working temperature | -40~+85℃ |
1 Core Armored Cable Strucutre and Specification
| Cable Model | GJSJV | |
| Cable diameter | Ø3.0±0.1 mm | |
| Jacket material | PVC、LSZH、TPU、ETFE | |
| Jacket color | G652—bule、G657—grey、G655—green、Multimode products —orange（or grey）,or other contracted color | |
| Stainless steel tube diameter | Ø1.4±0.05 mm | |
| Stainless steel tube material | SUS304、SUS204，or other contracted material | |
| Tight buffer fiber diameter | Ø0.9mm | |
| Tight buffer fiber color | Blue | |
| Fiber type | Single-mode fiber G652、G657、G655，Multimode fiber 50/125、 62.5/125、OM3 | |
| Cable weight | 11.kg/km | |
| Tensile | Short term | Long term |
| 200N | 100N | |
| Bend radius | Dynamic | Static |
| 50mm | 30mm | |
| Crush | 4500N/100mm | |
Note:
All the values only for reference.
If use G657 series, the bending radius will be less than 15mm.
