Desktop 1550nm Buy high power erbium doped fiber amplifier EYDFA, max, output power 40dBm (10W), SC / FC connector

The high-power erbium-doped fiber amplifier EYDFA-HP is based on double clad erbium-doped fiber amplification technology, using a unique optical packaging process and reliable hardware optical path protection design to achieve high-power laser output in the C-band or L-band. It has the advantages of high gain and low noise, and can be widely used in cable TV, fiber optic communication, laser radar, etc.

SKU EYDFA Category Tag

Description

EYDFA Features

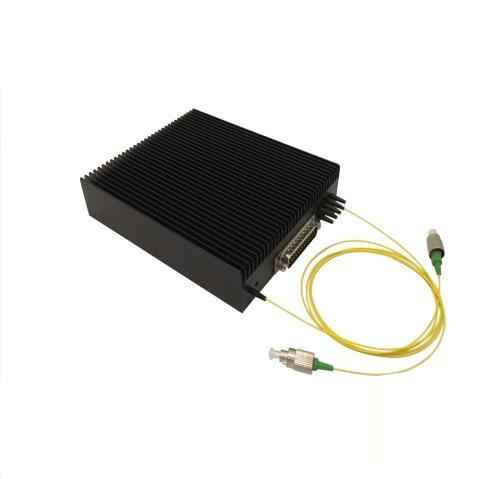

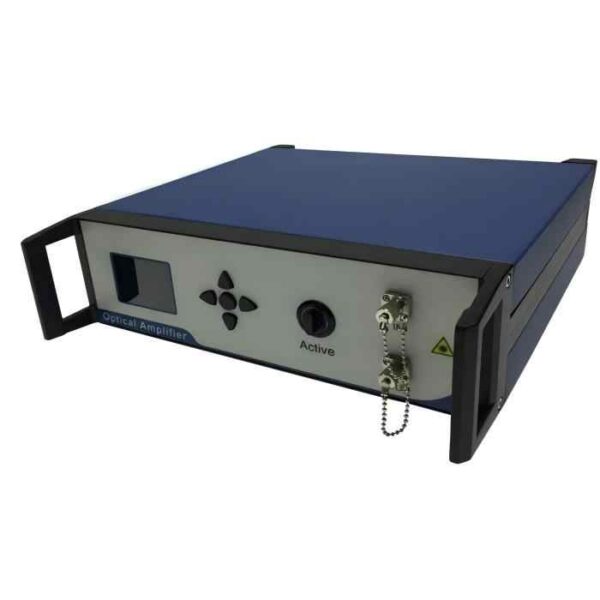

  • Desktop and modular options available
  • Maximum output power 40dBm (10W)
  • Wide working wavelength range and low noise
  • High calorie test and good temperature adaptability



EYDFA Application

  • Cable TV and fiber optic communication
  • Optical fiber sensing
  • Laser radar



EYDFA Specification

Item Unit Min Typical Max Remark
wavelength range nm 1530 1550 1570 C-band
Input power dBm -6 3
output power dBm 37 40 Customized
Noise Figure dB 6.0
polarization dependent gain dB 0.5
Isolation degree of input and output terminals dB 40
Working temperature range -20 +65
Operating humidity range % 70
Tail fiber connector type FC/APC
Tail fiber type SMF-28E singlemode fiber
Power supply mode DC 24V or AC 220V
size mm Desktop:296(W)X260(D)X89(H) Module:150(W)X125(D)X30(H)
communication protocol RS232 Optional power monitoring and upper computer software
Working mode ACC automatic current control, APC automatic power control



EYDFA Order information

EYDFA-HP-BA Output power (dBm) Pigtail loose tube diameter Pigtail length Connector type Package type
27

30

33

40

9=0.9mm

2=2mm

0= coupler

1=1m

2=2m

0=None

1=FC/APC

2=FC/UPC

3=SC/APC

4=SC/PC

B=desktop

M=module
