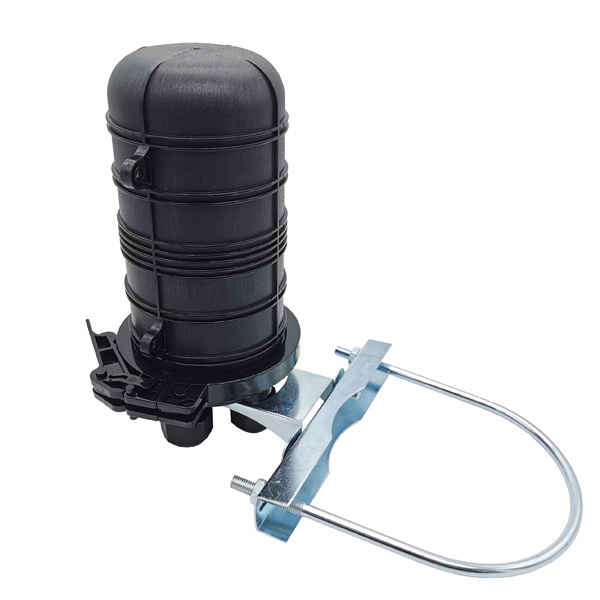

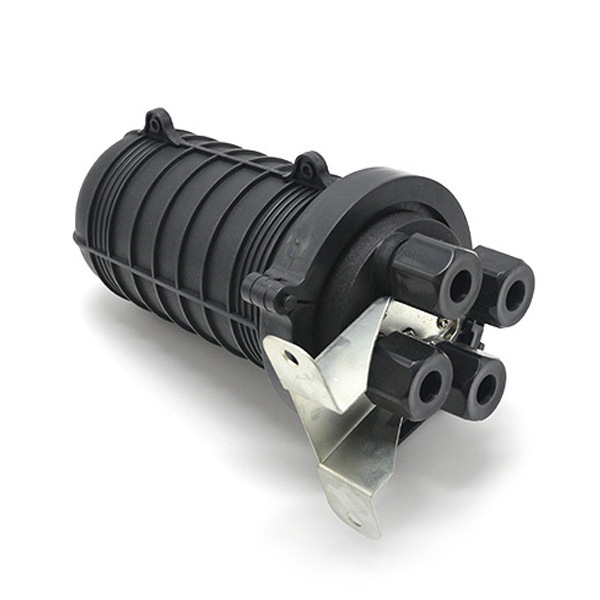

Description
Suitable for aerial, cable duct, direct buried, pedestal and provides the perfect solutions for the protection of fiber splice points from the environment. Suitable for multi-customer cables export, give a better solution for FTTH project.
Features
- High quality engineering plastic, long service life.
- Reliable gasket sealing system, rated to IP68.
- High compressive strength.
- Multi-cables are allowed to pass through a same port with mechanical lock.
- Suitable for aerial, wall, manhole and pole mounted.
Specification
| Model | GJS-D013 |
| Dimension | 288×Ø 180 |

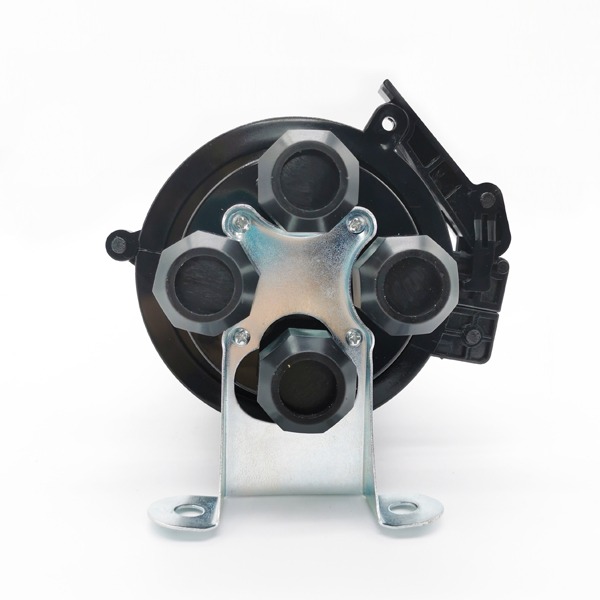

| Numbers of Cable ports | 4 |
| Cable diameter (Max.) | Ø 13mm |

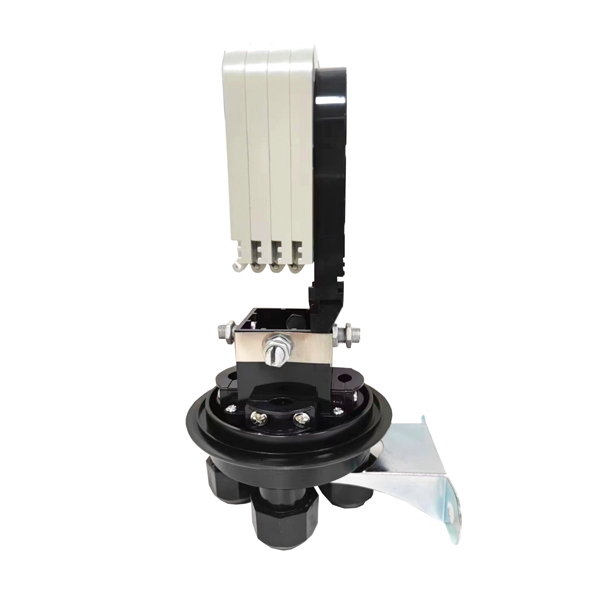

| Splice tray capacity | 6/12 FO |
| Maximum numbers of the splice tray | 4pcs |
| Splice capacity in total | 48 FO |
| Mounted way | aerial, wall, pole, underground, manhole |
| Material | Modified polycarbonate |
| IP grade | IP68 |
| Temperature range | -40 oC to +70 oC. |
Standard accessory:
- Closure body(with hoop),Heat shrink protection sleeve,Heat shrink tubes,Special wrench,Abrasive tape,Labeling paper,Nylon tie,Insulation tape,Pole mount kits,
Installation Method:
- wall-mounted, Pole mounting, duct mounting.
