Description
Features & Benefits
- High quality engineering plastic, long service life.
- Reliable gasket sealing system, rated to IP68.
- High compressive strength.
- Multi-cables are allowed to pass through a same port with mechanical lock.
- Suitable for aerial, wall, manhole and pole mounted.
Specification
| Part Number | GJS-9601-A |
| Dimensions (mm) | 415×。190 |

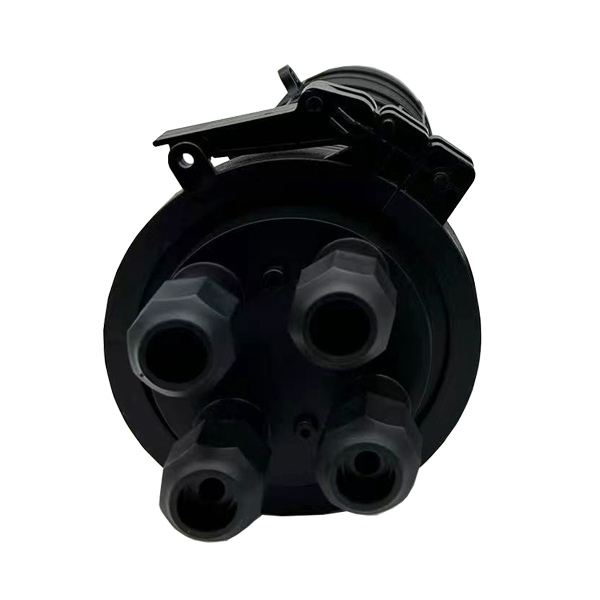

| Numbers of Cable ports | 4 |
| Cable diameter (Max.) | Ø8-13mm， |
| Splice tray capacity | 24 FO |
| Maximum numbers of the splice tray | 4pcs |
| Splice capacity in total | 96 FO |
| Mounted way | aerial, wall, pole, underground, manhole |
Performance
| Part No. | GJS-9601 |
| Material | Modified polycarbonate |
| Temperature range | -40 oC to +70 oC. |
| Life expectancy | 20years |
| UV resistant additives | 5% |
| Flame resistant | V1 |
| Seal material of the box | Rubber |
| Seal material of the ports | Rubber |
| Protection rating | IP68 |
