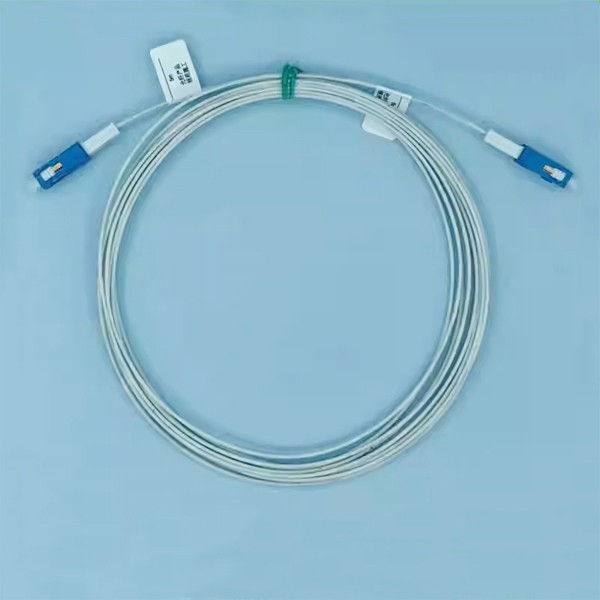

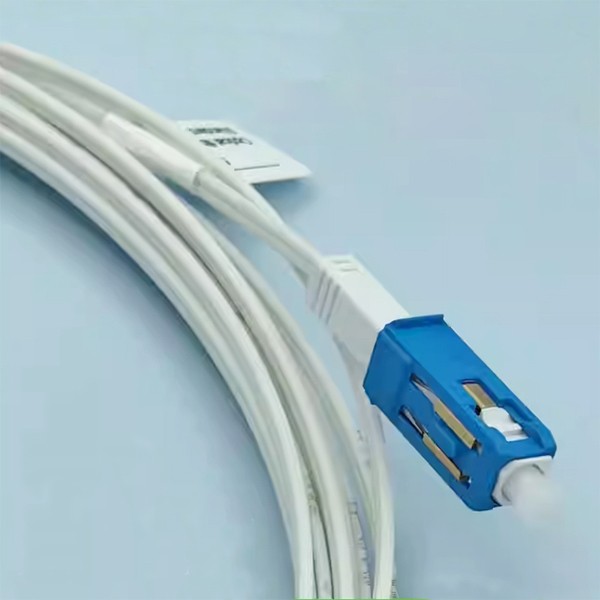

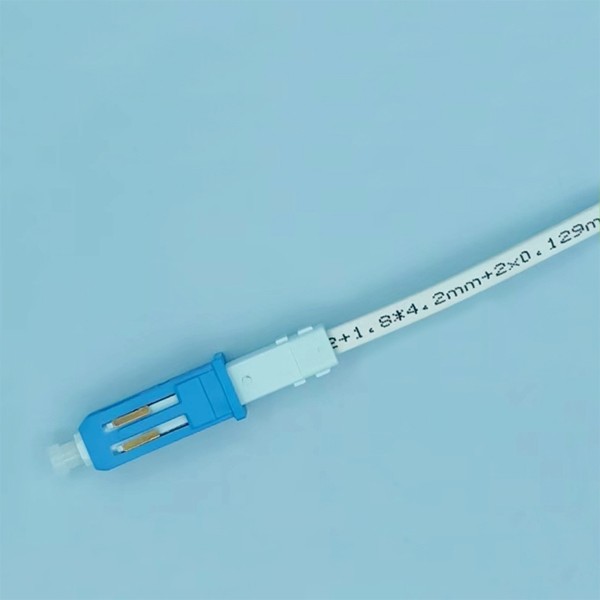

FTTR Optoelectronic Composite Connector Patch Cord Simplex SC UPC to SC UPC Black

The SC optoelectronic composite connector patch cord is with both optoelectronic composite connectors dedicated to Huawei or ZTE devices. The face-mounted optical AP and WIFI6 ceiling-mounted optical AP basically use this interface.

Category

Description

Indoor field optical fiber composite cables are hybrid cables that integrate optical fiber and power transmission copper cables. They are suitable for indoor conduit wiring, on-site optical fiber connection and power supply scenarios for terminal devices, providing data transmission and remote power supply functions.

SC Optoelectronic Composite Connector Patch Cord Features

  • The SCTconnector is compatible with SC fiber connectors from various manufacturers, ensuring excellent practicality.
  • Customization is available, including length, optical fiber cable, and connectors.
  • Low loss, high stability.
  • Pre-terminated with various SC UPC fiber connectors for quick installation and easy maintenance.



SC Optoelectronic Composite Connector Patch Cord Specification

Installation Environment Indoor
Ports Double-ended prefabricated SC/UPC optoelectronic connectors
Operating Temperature -10 ~ +65℃
Operating Humidity 0% ~ 95% (+40℃)
Storage Temperature -15 ~ +60℃
Rated Operating Voltage (DC) 48 ~ 56V
Rated Operating Current (DC) 0.25A
Maximum Loading Distance When the main optical-electrical hybrid cable is 20 meters long, the branch optical-electrical hybrid cable supports a maximum length of 80 meters. When the main optical-electrical hybrid cable is 2 meters long, the branch optical-electrical hybrid cable supports a maximum length of 150 meters.
Flammability Rating UL94-V0



Cross-section of Optical-electric Hybrid Cable

Fiber G.657A2 1 core
Conductor Material Twisted copper 16×0.16mm*2
Wire spacing 1.50±0.03mm (key size)
Optical-electric hybrid cable outer sheath Material White LSZH
Appearance 1.5mm x3.0mm
Optical-electric hybrid cable connector length 5/10/15/20/25/30/35/40/45/50/55/50/65/70/75/80m or customized



Connector optical and mechanical indicators

Connector type Both ends SC/UPC Optical-electric hybrid connector
Dimension (HXWXD) 8.8*8.2*40.5mm
Insertion loss ≤0.5dB
Return loss ≥50dB
Tension strength 50N
Plug times 50 times



Cable electrical performance indicators

Insulation resistance ≥500mΩ, DC300V, 1 minute at room temperature
Dielectric withstand voltage 1000V, 1 minute, leakage current less than 0.5mA
Continuity test No short circuit or open circuit, room temperature
Contact resistance Rtest (Rcable) + 2 x 50m



Mechanical performance indicators of indoor field optical-electric hybrid cables

Tension (short/long term) 100N/60N
Flattening (short/long term) 2200N/100mm, 1100N/100mm
Minimum bend radius (static/dynamic) 18mm/36mm
Wire bending 8 times, ±90°, 500g load, no cable cracks, mixed withstand voltage, insulation resistance test, no short circuits or opens.

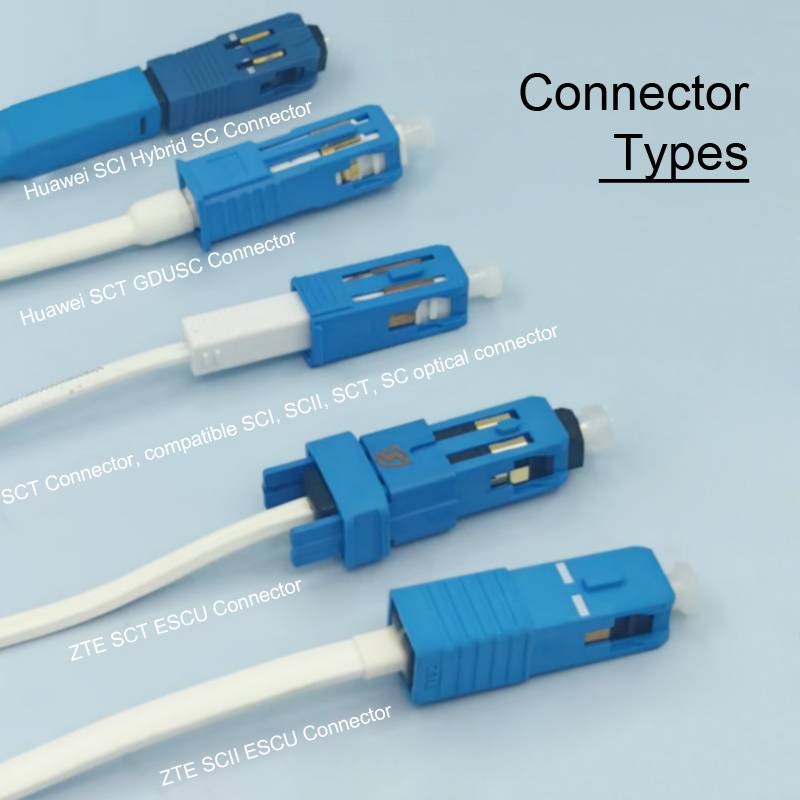

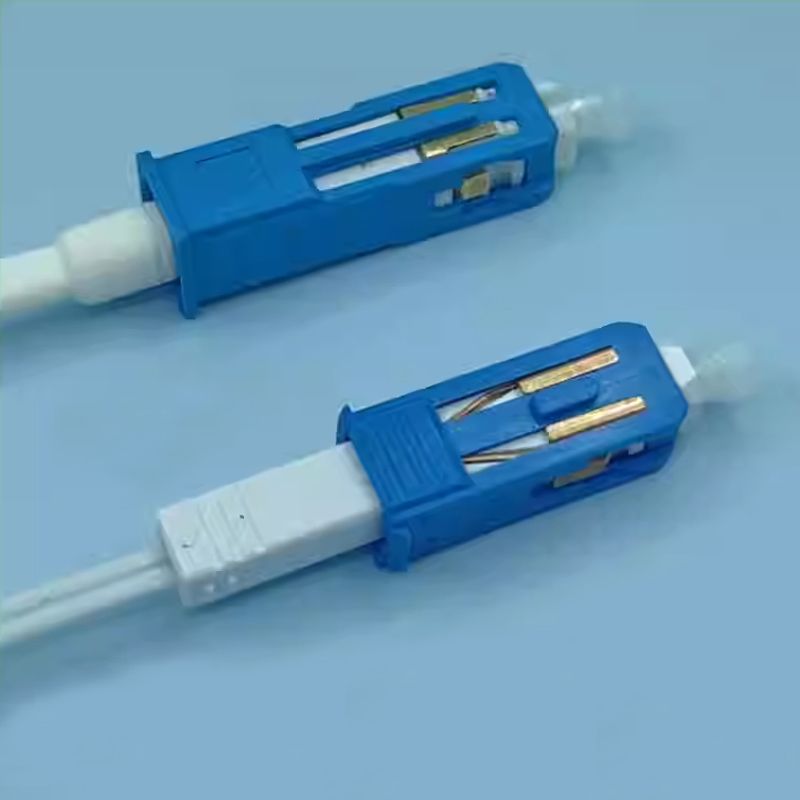

The SCT type connector has a set of electrical contacts on the top and a set of electrical contacts on the left and right sides, which are compatible with SCI and SCII types respectively, and can also be directly plugged into an SC pure optical plug.

fttr optoelectronic composite connector patch cord simplex sc upc to sc upc black

“YD/T 4305.1-203 Optoelectronic Hybrid Active Connectors for Communication Part 1: SC Type ” specifies the standard for SC type optoelectronic composite interfaces, laying a solid foundation for the further promotion and popularization of FTTR. The new standard has two models, SCI and SCII, with the difference being the position of the electrical contacts. In order to provide universality, SCT optoelectronic composite connectors compatible with SCI and SCII have been developed

fttr optoelectronic composite connector patch cord simplex sc upc to sc upc black
