Ftth Fat Box 2 Cores Sc Connectors, Fiber Optic Outlet, Left Cable Winding, Right Cable Distribution

This fiber optic outlet is FTTH wall mount optical rosette, acts as a termination point of the optical network, it use direct containerization or fusion splice in a pre-connectorized pigtail. It can be installed on the wall, and adapt variety of optical connection styles LC/SC, maximum 2 cores.

Description

Fiber Optic Outlet Features

  • Compact dimension, light weight, special design;
  • Easy handling, no special tools needed;
  • Bottom left for fiber storage, right for distribution;
  • Cable enter from bottom or sides;
  • Install normal SC adapter or shutter adapters without flange.

Fiber Optic Outlet Specification

ModelFTB86S Fiber Optic Outlet
Dimension (H*W*D)80*80*20mm
Max. Capacity2 core (single fiber)
Cable typeFlat/ indoor round cable
Adapter2 SC
Colorwhite
Protection levelIP30
 impact protectionIK01
Fiber typesingle mode & multimode
Guarantee12 months
StandardsDegree of protection: IEC 60529;

Temperature variation: IEC 61300-2-22;

Telcordia GR-771.

Fiber Optic Outlet Details

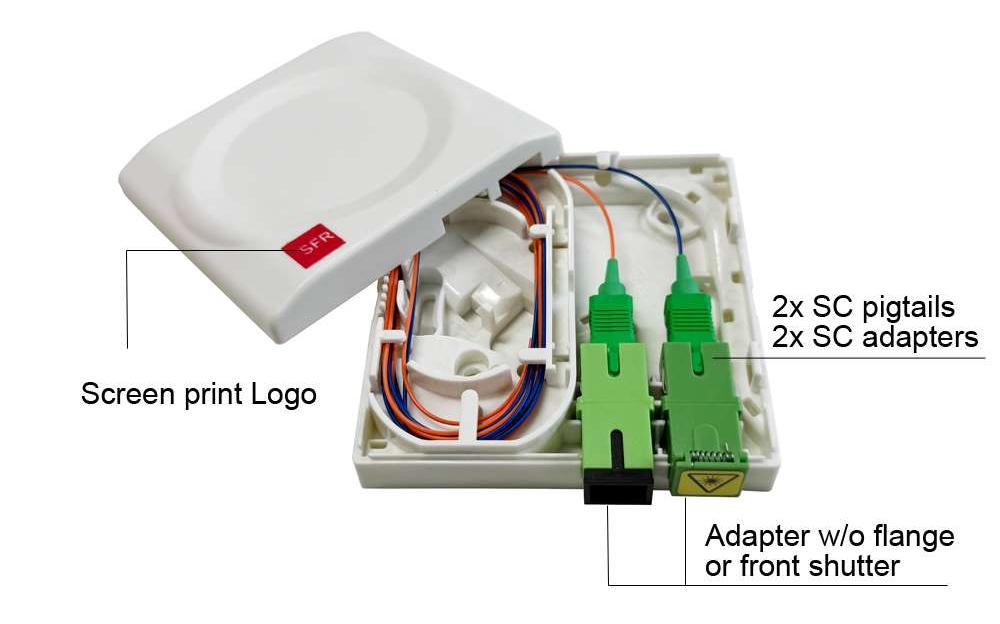

2 port fiber optic outlet are with separate cover, Yingda offer logo printing, assembly service for each socket panel, and this fiber optic outlet can hold 2 pcs SC pigtails and adapters without flange, or SC shutter adapter in front.

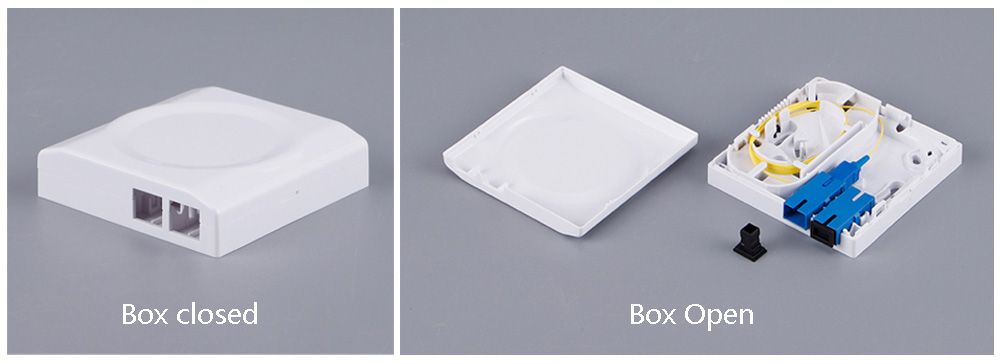

ftth fat box 2 cores sc connectors, fiber optic outlet, left cable winding, right cable distribution

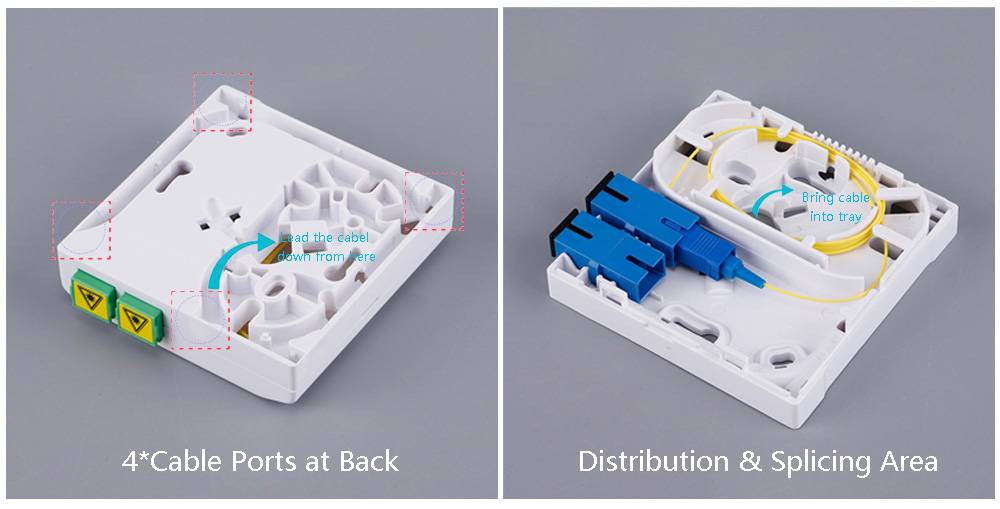

Compact size fiber optic outlet are made of ABS material, white color. And there is separate area for cable distribution on right and fiber storage on left. Due to this FTTH outlet is limited space, so suggest to use bend sensitive G.657A2 or G.657B3 fiber.



ftth fat box 2 cores sc connectors, fiber optic outlet, left cable winding, right cable distribution
The standard accessory are expansion screws x2 sets in a plastic bag, which will be pack in the empty box. If fully loaded with pigtails or adapter, we can put the screws in the inner box, fiber splicing sleeve can cable ties can be customize.

ftth fat box 2 cores sc connectors, fiber optic outlet, left cable winding, right cable distribution

Fiber Optic Outlet Related Products

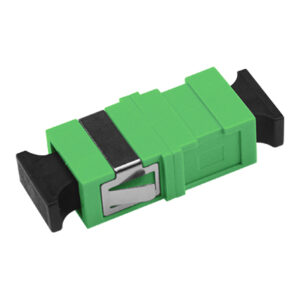

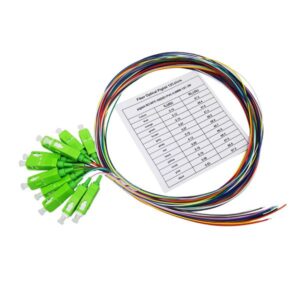

SC APC AdapterSC Adapter With ShutterSC APC Single Mode Fiber Optic Pigtails
