Description
Ftth Distribution Box Features
- 2pcs SC or LC duplex interface;
- 4 cable entry from back and sides;
- 2 x 40 mm heat shrink protection tubes available;
- Redundant fiber can be stored inside, easy to use and maintain;
- Pigtail fiber and cable can be heat or mechanical connected;
- Wide application, especially for multi-stereo and high rise buildings.
Ftth Distribution Box Specification
| Model | FTB86R |
| Dimension | 86*86*17mm |
| Max capacity | 2 cores (single fiber) |
| Adapter quantity | 2SC Simplex or 2LC duplex coupler |
| Cable diameter | Ø2.0mm, Ø3.0mm,3.0*2.0mm |
| Material | ABS or flame retardant |
| Net weight | 40g |
| Carton box size | 500*390*320mm |
| Color | White |
| Mounting way | Indoor wall mount with screws |

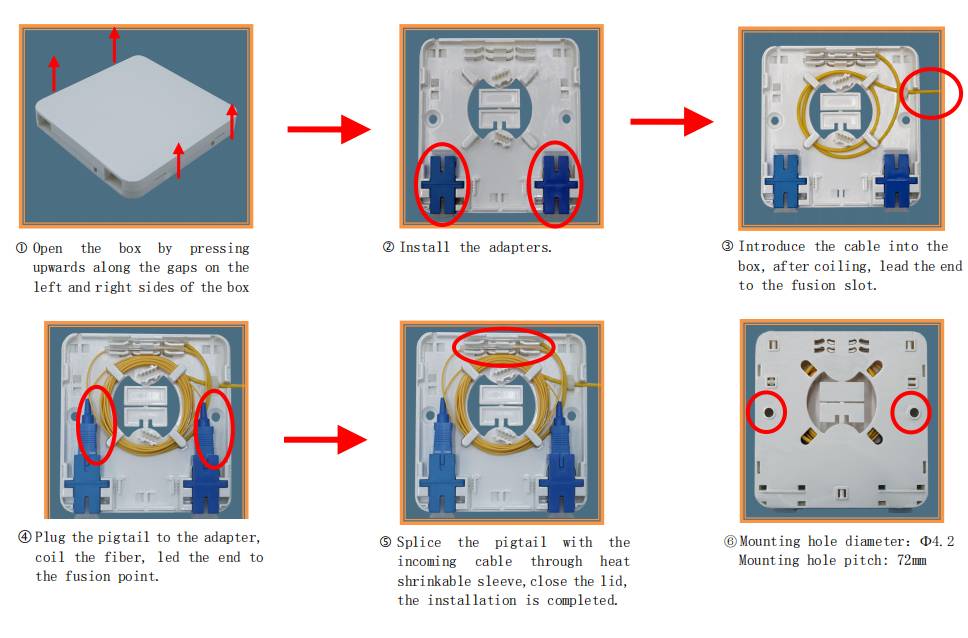

Ftth Distribution Box Installation Procedures
- Step 1: Open the box by pressing upwards alog the gaps on the left and right sides
- Step 2: Install the adapters at both sides
- Step 3: Bring the cable into the box, after coiling, lead the end to the fusion slot
- Step 4: Plug the pigtail connector side into the adapter, coil the fibers lead the bulkhead end to the fusion point
- Step 5: Splice thepigtail with the incoming cable through heat shrinkable sleeve, close the lid.
- Step 5: Drill 2 holes with φ4.2mm on wall with hole pitch 72mm, and install the expansion screws, then finish installation.
