Description
FTTH Outlet Features

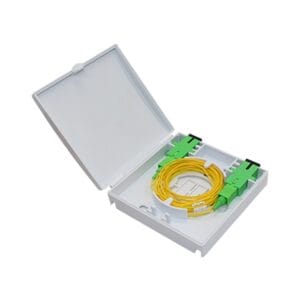

- 2 Port FTTH indoor wall mount, home or work area.
- No splice tray, 2in 2out cable ports
- Suitable for 2 pcs SC/LC duplex adapters and pigtails assembly
- White high strength telecom plastic, dust-proof, and ROHS proof, IP45 protection level.
- Laser mark on lid, non-smooth surface design.
- Suggest to open the box with screwdriver, it is very tightly closed.
FTTH Outlet Specification
| Model | FTB86N |
| Dimension (W*D*H) | 90*90*16.5mm |
| Max. Capacity | 4 core (single fiber) |
| Cable ports | 3 pcs |
| Cable diameter | φ0.9, φ2.0mm, φ3.0mm indoor cable and FTTH drop cable 2x3mm |
| Adapter | 2 SC / LC duplex adapter |
FTTH Outlet Details

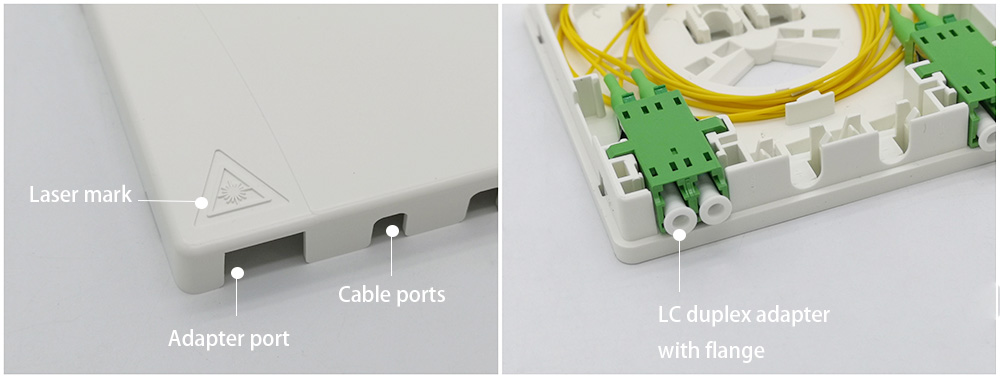

Yingda 2 Port plastic FTTH outlet all front operation, no matter cable in and out, and the drop cable with patch cord, adapter or pigtail, all operation in the same side.

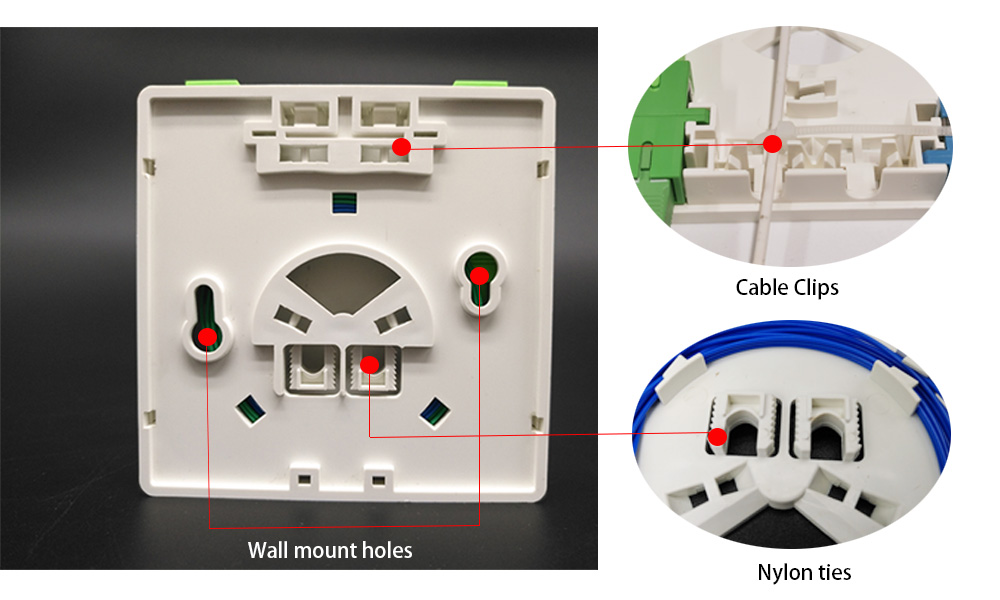

This wall outlet is very thin and close tightly, can only open by screwdriver to open at both sides, you can not open by hand. This makes the box more safe for long time use. Not anyone can open it. To keep the cable in place, there are reserved cable clips in the middle of the box, you can take if off when you need to fix the entering cable or use cable ties instead, like top right picture.

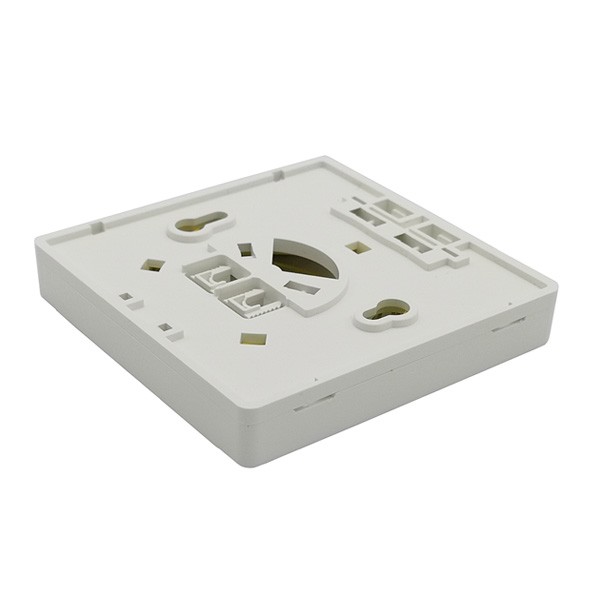

It is wall mounted with screws, please only need to drill 2 holes on holes. It is easy and fast to install. No other special tools needed.
This mini fiber FTTH outlet can use LC duplex adapter, which can maximum laode 4 cores fiber splicing; if use SC adapter, it can only load 2pcs fiber pigtails for splicing.
