Description
Optical Wall Outlet Features
- FTTH indoor wall mount, home or work area
- Lid and bottom is separate, press both sides for easy open.
- Provide users with optical access or data access
- Large store area for surplus fiber inside
- Suitable for 2pcs SC/LC duplexadapters
- High strength white plastic and ROHS proof
- Laser mark and strength strip on lid
Optical Wall Outlet Specification
| Model | FTB86M |
| Dimension (W*D*H) | 105*82*22 mm |
| Max Capacity | 2 core (single fiber) |
| Cable ports | 2 pcs |
| Cable diameter | φ2.0mm, φ3.0mm, φ0.90 mm cable and FTTH drop cable 2x5mm |
| Adapter | 2SC |
Optical Wall Outlet Details

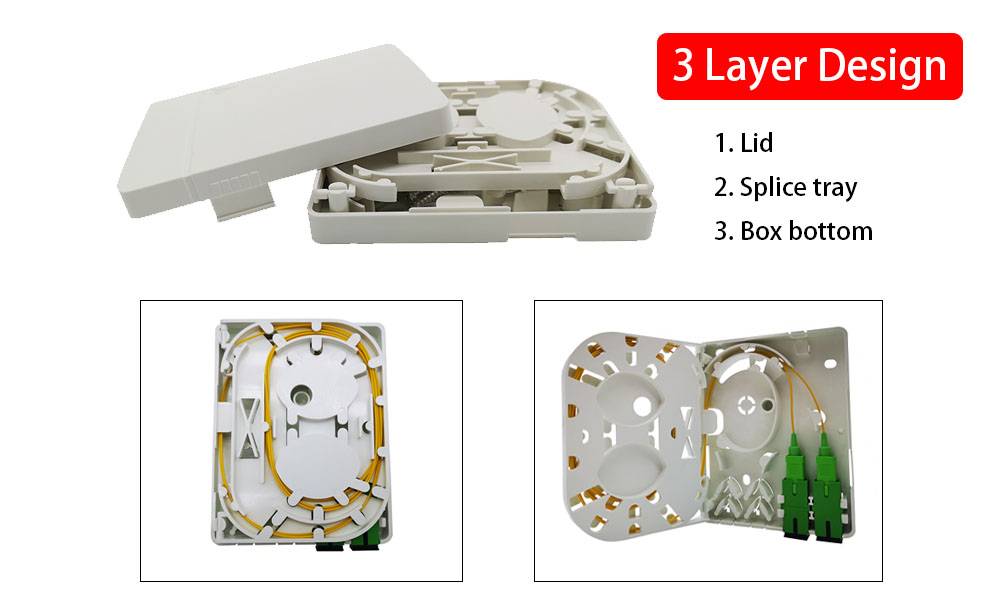

This hot selling fiber optical wall outlet adopt ABS materials, with a 2 cores splice tray, and all fiber optic operation in front. Bring the fiber optic cable inside of the box from front 2 ports or back 1 port, and after splicing and connection in the splice tray, you can bring the fiber out from the sc adapters, where drop cable patch cord pigtails with SC connector can be used.

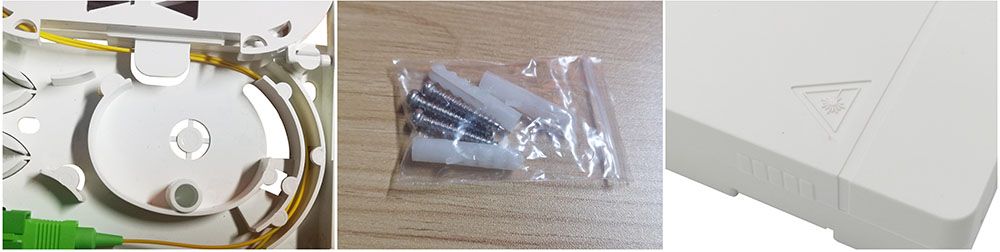

Yingda will provide wall mounting screws for indoor deployment in FTTx network, and there is laser mark on the mold itself, no need to paste stickers. Inside of the box, there is reasonable fiber wiring design with guiding and protection kits, and you can use pigtial 1.5meter long, there is enough space.

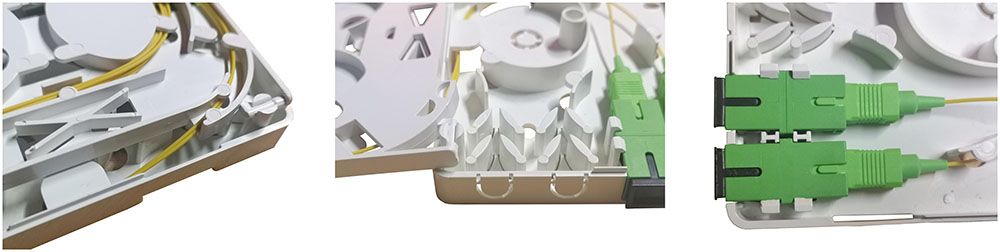

The top tray have heat shrinkable protectors slots, where max hold 2pcs sleeves. The bottom cable entry with cable fixtures and adapter fixtures for all items , humanity design, long lasting materials.
