Description
FTB86L is used in the end termination of residential building and villas to fix and splice with pigtails, maximum connect with 2households. There is 1 splice trays for 4cores fiber splicing, and large area for fiber storage and winding. the whole cover is locked with a middle key to the bottom, hold tight and not loose after long time use.
Features
FTTH indoor wall mount, home or work area
Embedded surface frame, easy to install and disassemble
Integrated with splice cassette and cable management rods, manager fiber in a reasonable fiber radius condition
Suitable for 2pc SC/LC duplex adapter, 4sleeve slot
High quality engineering plastic, dust-proof, ROHS proof, IP45 protection level

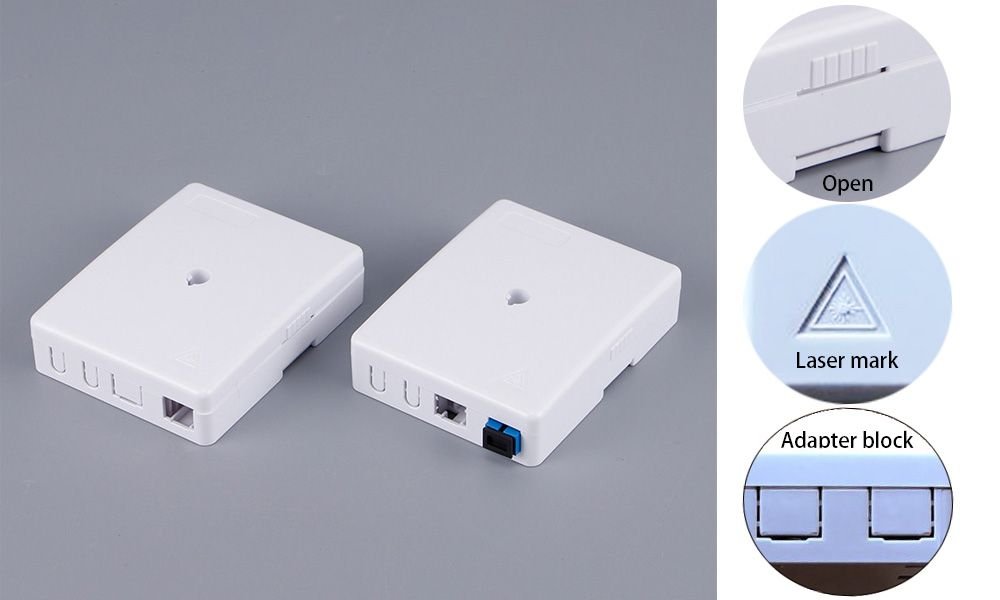

Laser mark on lid, 1 anti falling screw in the middle to fix the lid with the bottom tightly.
Unscrew the screw, and press both sides with strips to open the box.
Top left logo print position reserved.
Specification
Model | FTB86L |
Dimension (W*D*H) | 102*80*25mm |
Max.Capacity | 2 core (single fiber) |
Cable ports | 2 pcs |
Cable diameter | φ2.0mm.φ3.0mmφ0.9mm cable and FTTH drop cable 2x3mm |
Adapter | 2 SC / LC duplex |
