Description
FTB86D 1core fiber outlet is used in the end termination of residential building and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.
Features
- FTTH indoor wall mount, home or work area
- Slide lid design, no need screw driver, easy to open and close
- Provide users with optical access or data access
- Large area for fiber management, storage for surplus fiber
- Suitable for 1pcs SC simplex adapter or LC duplex adapter
- ABS plastic and ROHS proof

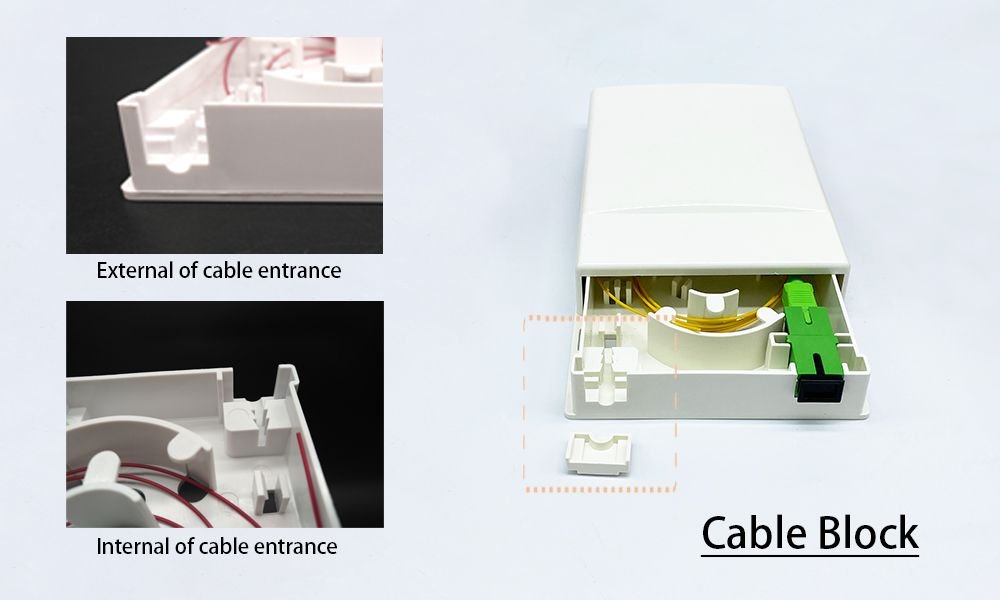

- Cable entry and exit without cutting
Specification
| Model | FTB86D |
| Dimension (W*D*H) | 90*120*25 mm |
| Max. Capacity | 1 core (single fiber) |
| Cable ports | 2 pcs |
| Cable diameter | φ2.0mm.φ3.0mmφ0.90 mm cable and FTTH drop cable 2x3mm |
| Adapter | 1pc SC adapter |
