1 Port Sc Ftth Fiber Termination Box, Cable Go Through The Box Strainghtly, Embeded Wall, Gradient Surfece Design.

Description

FTTH Fiber Termination Box Features

• High quality engineering plastic, new materials, white color;
• It can be installed on any vertical flat surface on wall;
• Compact size, light weight, special design;
• The surface adopts step sliding design, non planar, large space for logo printing;
• Capacity to store long length of pigtails with 9mm diameter;
• Humanity embedded wall design, cable entry from top to bottom and go through the box straightly;
• Universal SC adapter, convenient and quick construction

FTTH Fiber Termination Box Specification

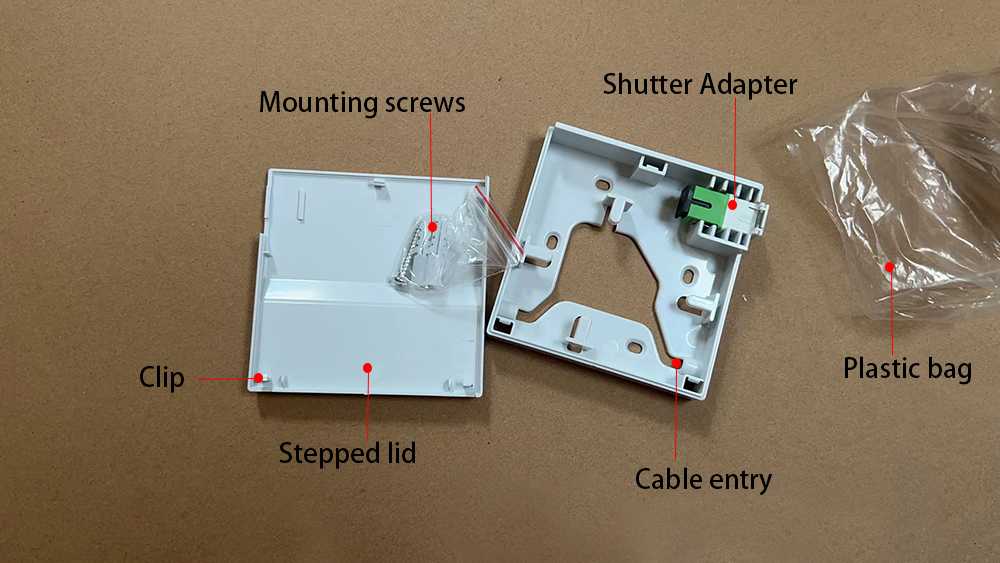

FTTH Fiber Termination Box Details

This compact small 86 type indoor FTTH fiber termination box are wall mounted on wall, there are 4 holes at back of the box around the 4 sides. And the feeder cable enter the box from top and bottom face to face.

The fiber optic cable entry slots are built into the box, keeping them parallel to the wall without any extra gaps. The fiber optic main cables are introduced from the back big hole in the middle of the box and then coiled, spliced, and distributed inside.

While the pigtails will be bring out with a pre-terminated SC connector with adapter, you can directly plug in a sc patch cables to fibre access to internet. it is easy to operate, and the SC adapter can be with flange and with shutter dust cap too.

Yingda suppor to screen print or laser print your company name or brand on appearance of the box to help build up or promote your brand. Single color or multi-colors are available.

This box is made of high strength ABS PC materials, anti-aging, flame retardant UL94 v0 material can be choose.

If you don’t need to assembly pigtails or adapters inside, we will provide box with mountting kits for you, with a inner plastic bags to prevent scratches or friction. The standard accessory is 2xmountting screws, which will be put in a small bag inside of the mini terminal box.
