FTB86C Optical fiber outlet is for FTTH access terminal of family or work area, to provide optical and data interface, compact size, light weight, max. hold 2 SC or LC duplex adapter for fiber splicing, distribution, protection and management. Best choice for fiber access to home, slide in lock design makes it easy to open and close.
| Model | FTB86C |
| Dimension (W*D*H) | 86*86*23mm |
| Max. Capacity | 4 core (single fiber) |
| Cable ports | 6 pcs |
| Cable diameter | φ2.0mm, φ3.0mm,φ0.9mm cable and FTTH drop cable 2x3mm |
| Adapter | 2 SC or 2 LC Duplex coupler |
| Fiber bend radius | ≥40mm |
| Extra loss on tray | ≤0.01dB |
| Temperature range | -40℃~+70℃ |
| Anti lateral pressure | ≥2000N |
| Impact resistance | ≥20N.m |

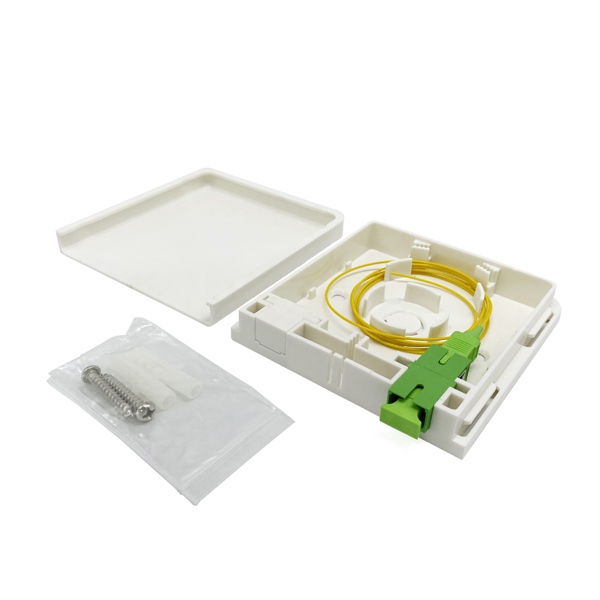

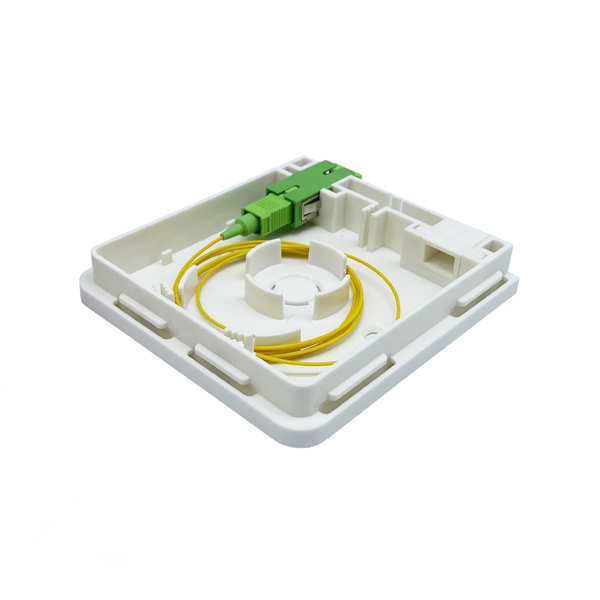

This fiber outlet user-friendly design comes standard with wall-mounting expansion screws, eliminating the need for additional installation. All optical cables enter and exit the box from the front. Two adapter holes are located on either side, and the cable entry and exit holes are located in the center. A slotted design allows for easy removal of the center baffle. Internally, a cable winding mechanism and slots facilitate fiber optic mounting and management, ensuring a precise bend radius. If the adapter hole is not in use, a plastic plug will be provided to completely block the entry and exit holes, isolating the box from dust.
The most distinctive feature of this fiber optic cable terminal box is that it slides open and closed, with a separate lid and bottom. It’s incredibly easy to operate, requiring no screws or keys. Fast installation saves labor and material costs.
There are two screw holes at the bottom of the fiber outlet, as shown below. Firstly to drill two holes in the wall and then insert the expansion screws to finish installation. It’s stable and secure.
The entire box is very compact but with full range of functions: fiber optic cable splicing, wiring, and protection. Adapters can be used with or without ears. Both SC and LC adapters are compatible.
