Description
Roseta Optica 3M Features
- Dust-proof design with IP45 protection level;
- Compact size, light weight, large manager fiber area;
- It has 2 SC port, but can maximum hold 2 SC adapter or LC duplex coupler at one time;
- Suitable for fusion splice or mechanical splice;
- Embedded type surface, easy for installation and remove;
- 2 port cable exit for patch cable, drop cable, etc
Roseta Optica 3M Specification
| Model | FTB86K |
| Dimension | 90*95*15mm |
| Capacity | 2 cores |
| Cable type | 2*3.0mm drop cable or indoor cable |
| Adapter qty | 2 SC / LC duplex adaptors |
Roseta Optica 3M Details

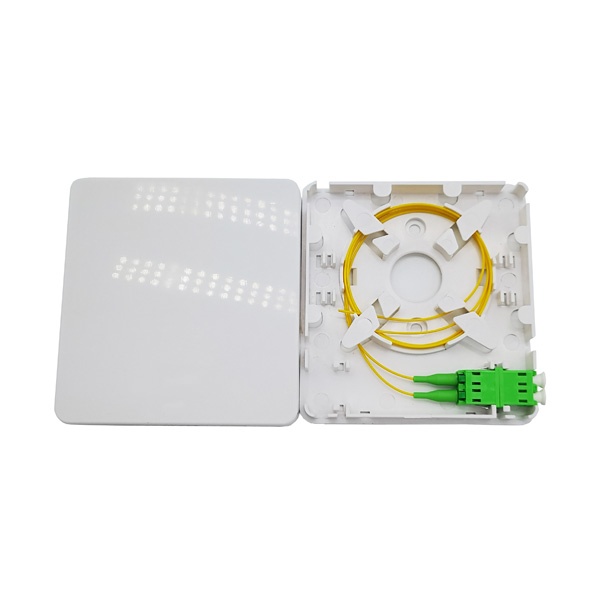

This FTTH Rosta optica is made of new ABS material, compact size, very thin, with 2 Adapter ports facing each other,maximum hold 2 SC or LC duplex adaptors,. And there are also 4 cable ports, each 2 ports facing each other for indoor cable, drop cable wiring.

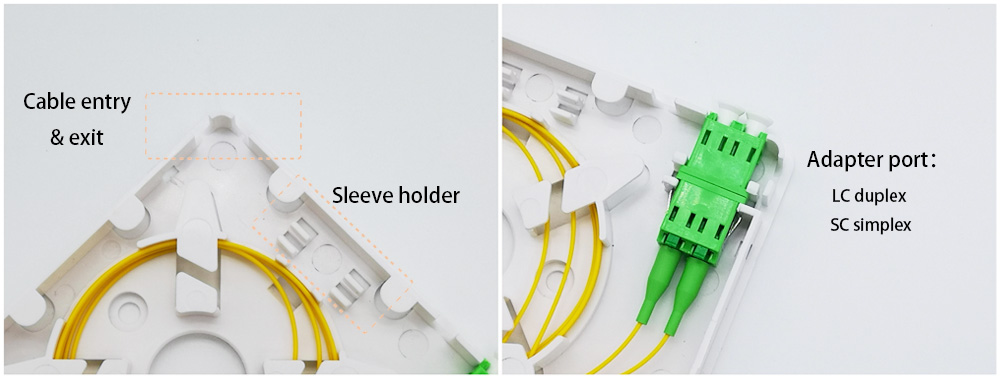

This roseta mainly used for end termination of fiber optic pigtails and bring fiber into home with drop cable, so splicing sleeve will be used inside, and there are sleeve holders at opposite side of the box inside. You can use any one of them. And in the middle is the fiber optic cable management, storage and wiring area, with cable holder and protection kits design.

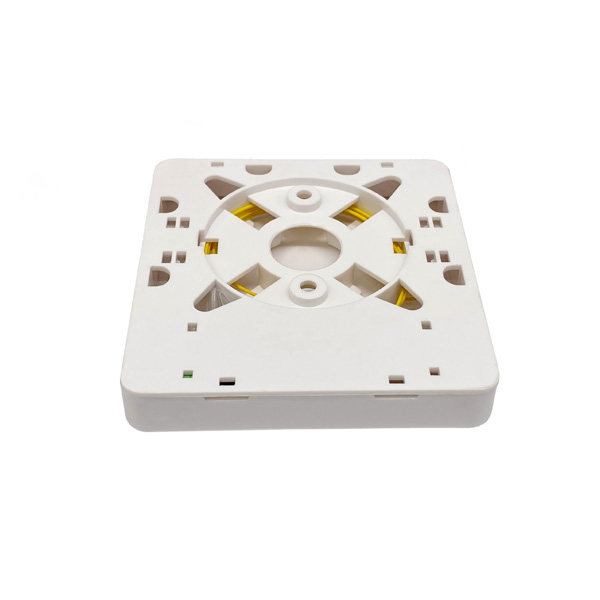

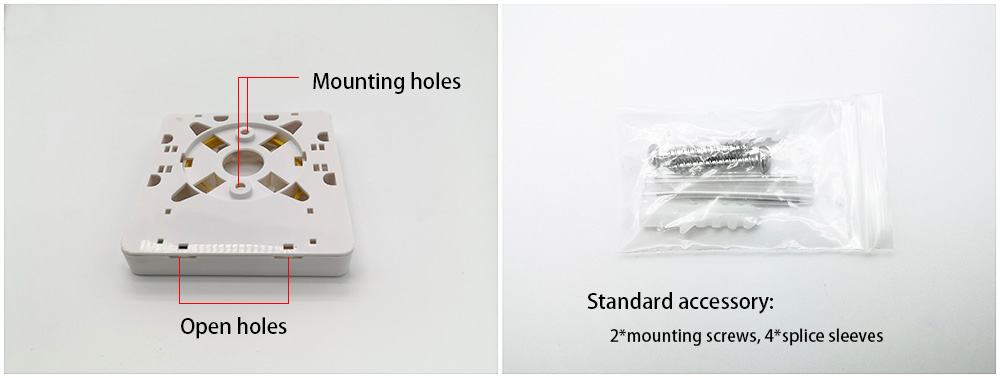

This roseta optical box are mounting on wall, with 2 holes in the middle back, only need 2pcs expansion screws.

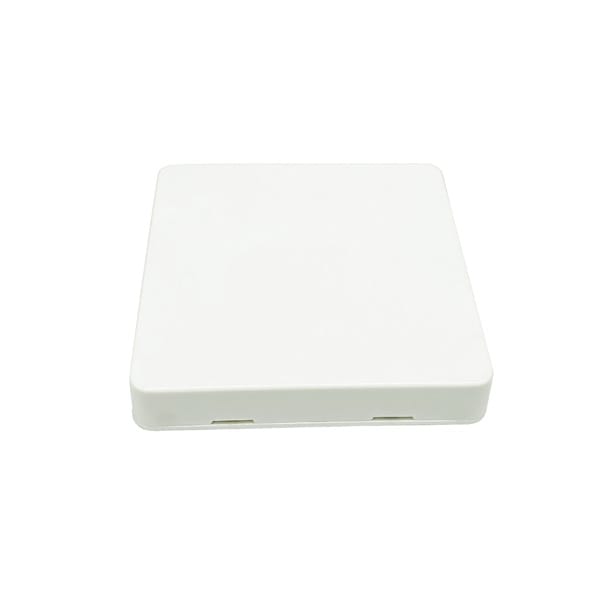

It is easy to open and close the roseta optica, only use your fingers to forcefully knock open the opening design on the edge of the box, see the position in below marking.
