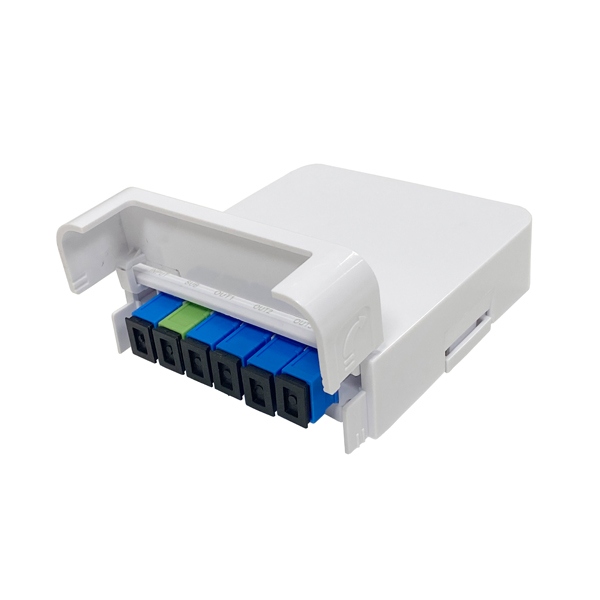

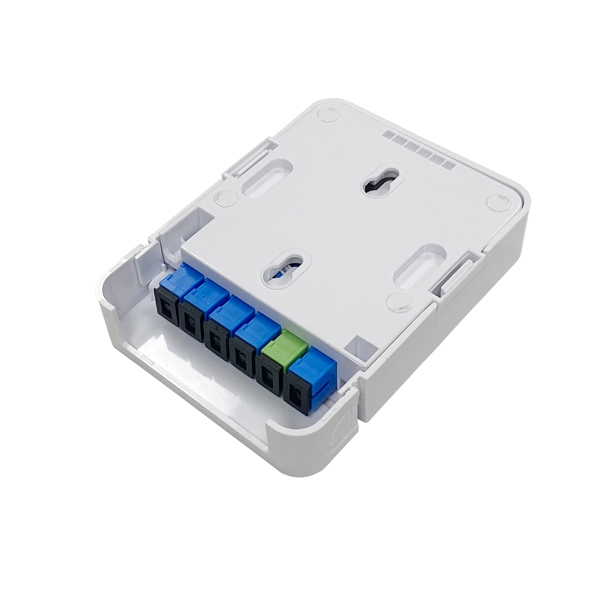

6 Port Optical Fiber Cable Termination Box Wall Mounted With 1×5 Mini Plc Splitter Sc Connectors

FTB106A fiber cable termination box is able to hold up to 5 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box, max. hold 1:5 unbalanced splitters steel tube inside.

Description

Fiber Cable Termination Box Features

  • It is used for different kinds of modules and applied to the working area subsystem.
  • It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty.
  • Dust-proof design with Ip-45 Protection level.
  • Integrated with splice cassette and cable management rods.
  • Manage fibers in a reasonable fiber radius condition.
  • Easy to maintain and extend the capacity.
  • Suitable for the fusion splice or mechanical splice.
  • Embedded type surface, easy for installation and removal.
  • 6ports cable entrance for patch cable.



Fiber Cable Termination Box Specification

Model FTB106A
Dimension (L*W*H) 115*85*23mm
Application 5m 10m 20m transparent optical cable
Fiber mode Single mode G.652 G.657
Fiber diameter 900um &250um
Adapter SC simplex or LC duplex
Insertion loss ≤0.2dB (1310&1550nm)
Output 6SC/FC adapter
Max capacity 6 cores
End-user temperature -40 ~+85℃
Tensile strength >50N

Fiber Cable Termination Box Configuration

This FTB106A fiber cable termination box can configurate with 1:5 unbalanced splitters in different splitting ratio like 55:45, 60:40, 65:35, 70;30, 75:25, 80:20, 85:15, 90:10, 95:5.

YDPLC-MM-105-60-40-SASA YDPLC-MM-105-70-30-SASA YDPLC-MM-105-80-20-SUSU YDPLC-MM-105-85-15-SASA
1:5 planar lightwave circuit splitter ratio 60:40, sc upc connectors at both side 1m, g657a1 smf, in red, out ch1: blue 60%, ch2 5: white 10% each 1:5 fiber splitter cable unbalanced spliting ratio 70:30, sc apc connectors at both side 1m, g657a1 smf, in white, out ch1: blue 70%, ch2 5: white 7.5% each 1:5 sc apc splitter unbalanced spliting ratio 80:20, g657a1 smf 1m, in black, out ch1: blue 80%, ch2 5: white 5% each 1:5 planar lightwave circuit splitter ratio 60:40, sc upc connectors at both side 1m, g657a1 smf, in red, out ch1: blue 60%, ch2 5: white 10% each (copy)
  • Output Split ratio: 60%:40%
  • Input pigtail black color
  • Output pigtails blue + white colors
  • Connectors: SC/APC

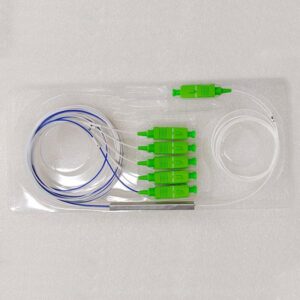

  • Output Split ratio: 70%:30%
  • Input pigtail white color
  • Output pigtails blue + white colors
  • Connectors: SC/APC

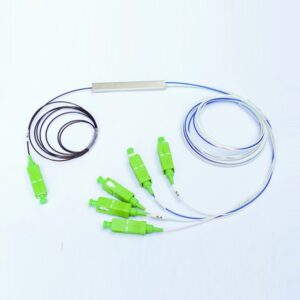

  • Output Split ratio: 80%:20%
  • Input pigtail red color
  • Output pigtails blue + white colors
  • Connectors: SC/UPC
  • Output Split ratio: 85%:15%
  • Input pigtail blue color
  • Output pigtails blue + white colors
  • Connectors: SC/APC
