Description
Features of Termination Box Fiber Optic
- FTTH indoor wall mount, home or work area
- Embedded surface frame, easy to install and disassemble
- Large space to manager fiber in a reasonable fiber radius condition
- Suitable for 1pc SC/LC duplex adapter, 1 sleeve slot
- ABS plastic, dust-proof, and ROHS proof, IP45 protection level
- Clip cover design, easy to open and close
- Top reserved space to print logo or model.
Specification
| Model | FTB0102B |
| Dimension (A*B*C) | 135*90*20 mm |
| Max. Capacity | 1 core (single fiber) |
| Cable ports | 4 pcs |
| Cable diameter | Indoor 3mm |
| Adapter | 1 SC / LC duplex |
Details of Termination Box Fiber Optic

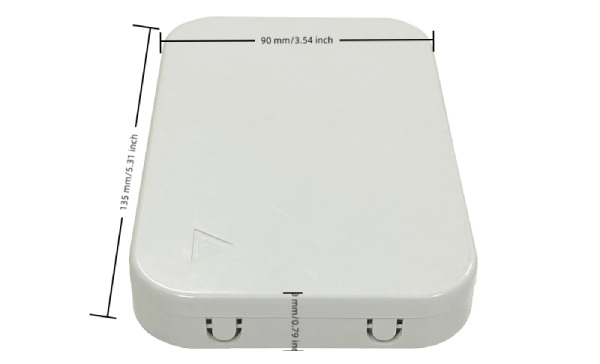

This is a rectangular device with rounded edges, made of white plastic. The box measures 90 mm (3.54 inches) in width. Its height is 20mm (0.79 inches), and the length is 135 mm (5.31 inches). A small triangular indicator is also visible on the side, serving as a warning signal.

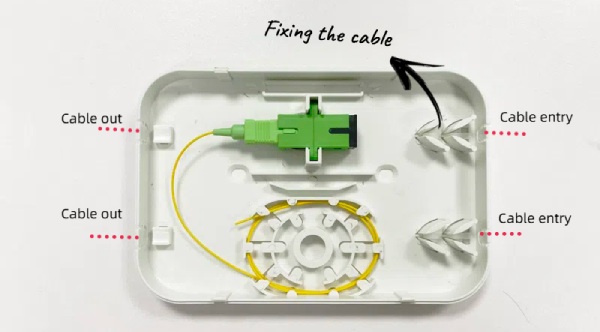

When opened, the interior features components. There are two sections for “Cable entry” (where incoming fibers enter) and two sections for “Cable out” (where outgoing fibers exit). A green fiber optic adapter is present (SC/LC adapter), which is used for connecting fiber optic connectors. Additionally, there is a circular spool-like structure designed for managing and storing excess fiber optic cable, ensuring the fibers are organized and not damaged. The mark “Fixing the cable” points to the area where cables are secured, emphasizing the box’s role in maintaining proper cable management.

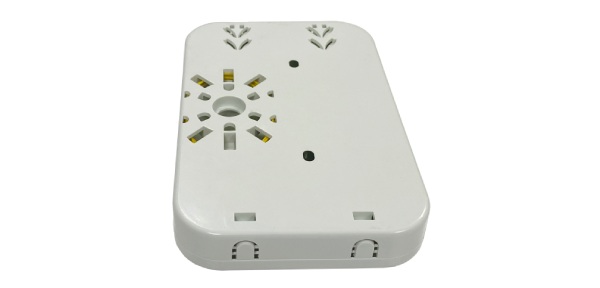

Display: the back of the box:
