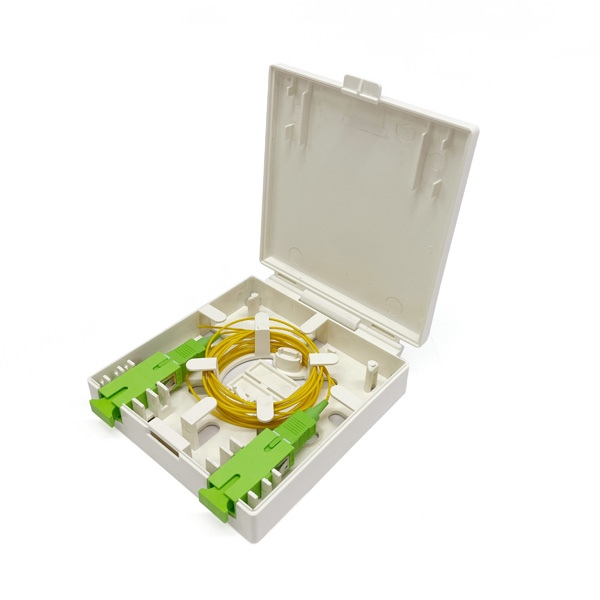

Description
Features of Roseta De Fibra Optica
- FTTH indoor wall mount, home or work area
- Hinged cover plate, easy to install and maintenance;
- Provide users with optical access or data access
- Large store area for surplus fiber inside
- Suitable for 2pcs SC or LC duplex adapters
- High engineering plastic, ROHS compliance
- Total enclosed for better dust-proof.
Specification
| Model | Roseta De Fibra Optica FTB86B |
| Dimension (W*D*H) | 86*86*23mm |
| Max. Capacity | 4 core (single fiber) |
| Cable ports | 6pcs |
| Cable diameter | φ2.0mm, φ3.0mm,φ0.9mm cable and FTTH drop cable 2x3mm |
| Adapter | 2SC LC |
| Fiber bend radius | ≥40mm |
| Extra loss on tray | ≤0.01dB |
| Temperature range | -40℃~+70℃ |
| Anti lateral pressure | ≥2000N |
| Impact resistance | ≥20N.m |
Detailed Display of Roseta De Fibra Optica

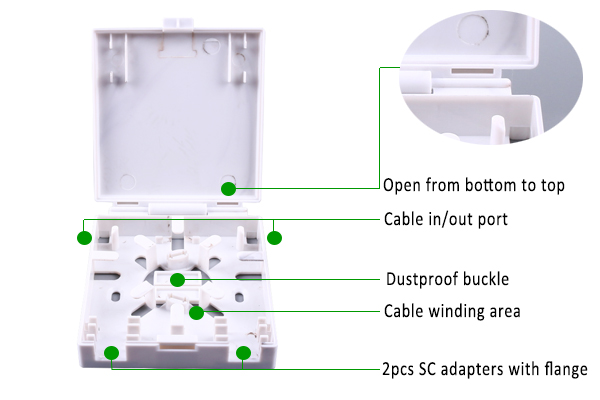

This fibra optica box is opened from bottom to top, which is convenient for operation and maintenance. There are designated ports for cables to enter and exit, ensuring orderly cable management. Dustproof buckle helps to keep dust out, protecting the internal fiber optic connections from contamination and ensuring stable performance. Cable winding area, a dedicated area, which is provided for winding cables, allowing for neat arrangement and preventing cable tangling.
This optical roseta can load 2 SC adapters with flange or without flange, which are essential for connecting fiber optic cables securely and enabling efficient optical signal transmission.

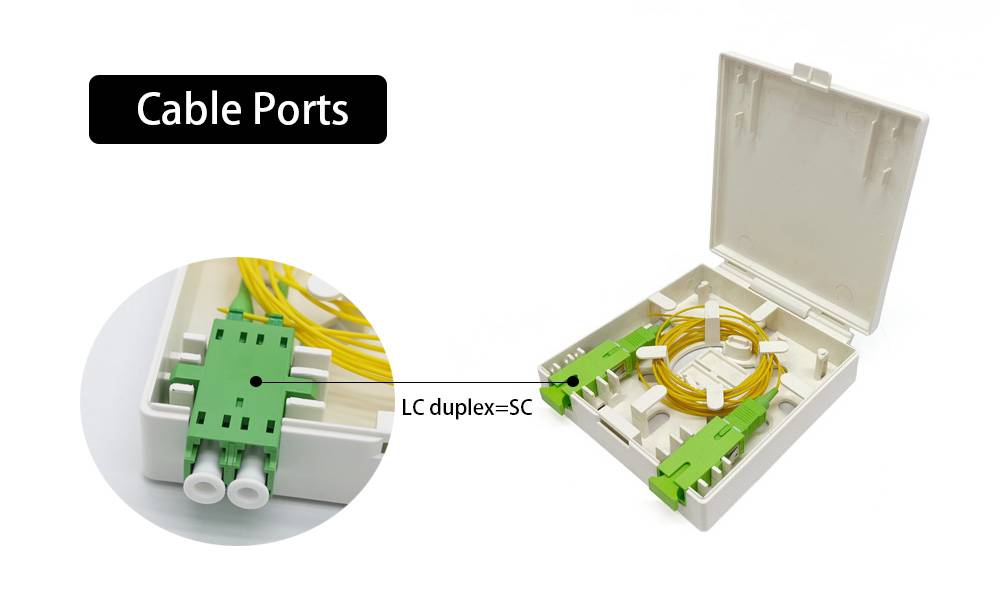

You can use LC duplex adapter instead like below, then maximum spilce 4 cores single fibers.

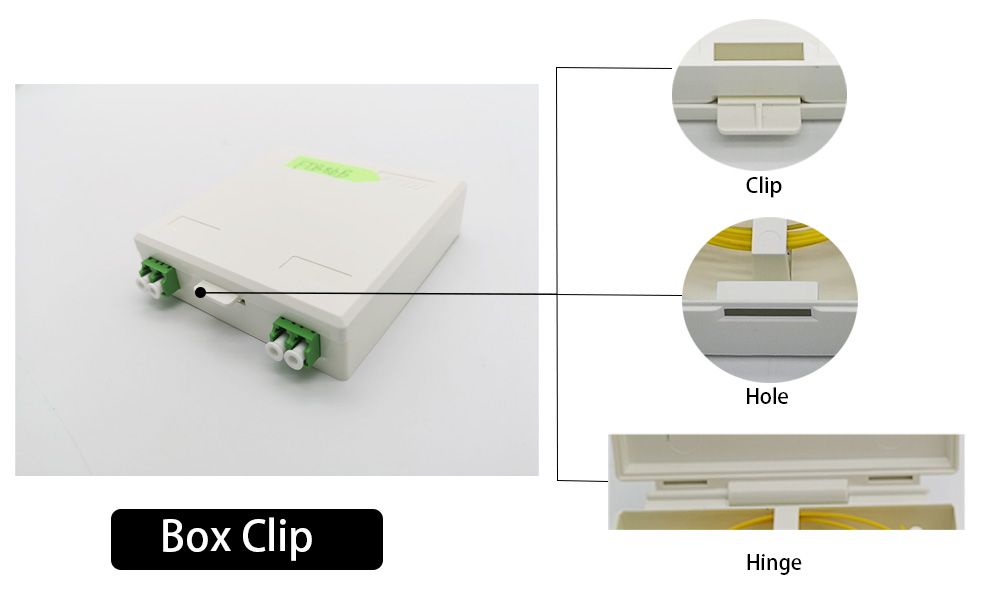

The biggest feature of this fiber optic reoseta is that the cover can be opened up and down with a hinge at top, and there is a manually removable buckle design in the front, which is easy to open without the need for additional tools, making the switch convenient. And the lid and bottom are designed with hinge, so they won’t fall off and there’s no need to worry about the lid falling off. Simply fasten it after the operation is completed.

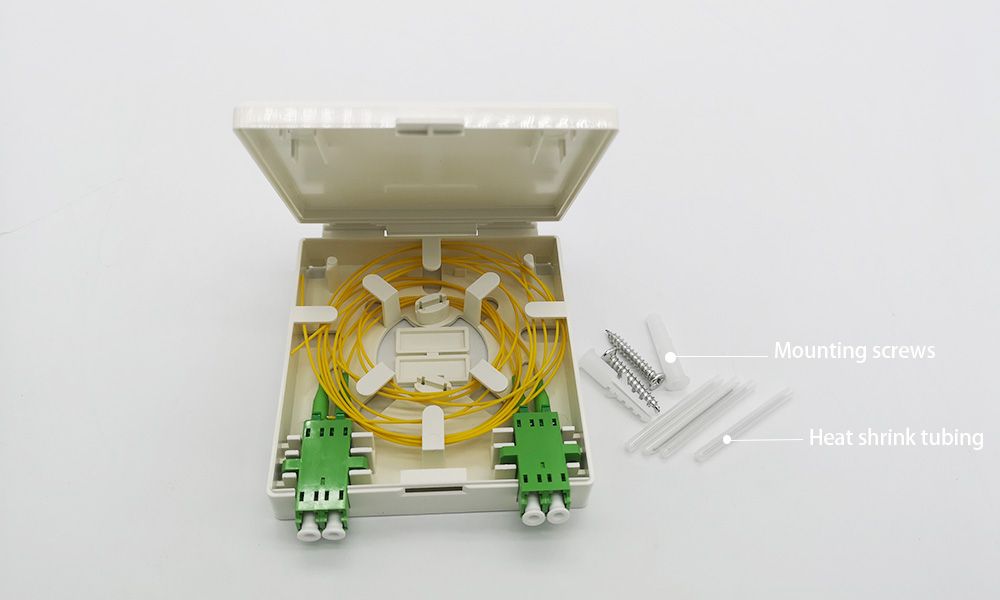

Each fiber optic panel comes standard with 2 expansion screws for wall mounting, and can also be paired with 2-4 fiber optic heat shrink tubing according to customer requirements, depending on their final usage needs. If there are other configuration requirements such as fiber optic cold connectors, pigtail fibers, adapters, metal buckles, etc., please communicate with the business team in advance.
