Description
Features of Fiber Optic Box Outdoor
- High quality engineering ABS material, white color;
- Can store maximum 35meters of invisible optical fiber;
- The winding coil on the bottom ensure to rotate and adjust the length of the optical fiber outside of the box according to the actual situation;
- The curvature radius of the optical fiber is greater than 30mm at any position;
- Wall mounted installation with screws;
- Applicable for home or Work area (FTTR) fiber optic interface;
- Applicable to SC, ST and other common models of adapter;
- Using engineering ABS brand new raw materials;
- With dust-proof device to prevent dust from entering, IP54 protection grade.
Technical Specification
| Model | FTB001S-XH |
| Dimension(L*W*H) | 93*83*30mm |
| Max capacity | 1 Core |
| Max qty of adapter | 1 piece SC |
| Material | ABS |
| Color | White |
| Applicable cable | Invisible clear fiber optic cable |
| Cable diameter | 900 um tight buffer |
| Cable sheath | Nylon |
| Cable length | 10, 15, 20, 25, 30, 35mtrs |
| Net weight | 67g |
| Working temperature | -25℃ to +60℃ |
| Pack information | |
| Quantity per carton | 200pcs |
| Carton size | 54*25*34.5cm |
| Weight per carton | 14.5kg |
Detailed Display of Fiber Optic Box Outdoor

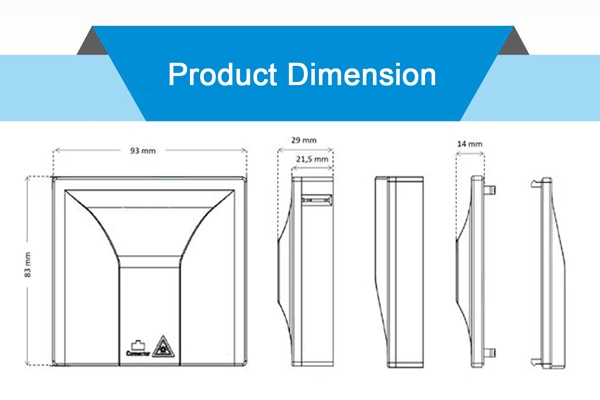

The box has a length of 93 mm, a width of 83 mm, and a height of 29 mm (with a protrusion of 21.5 mm in one part). Side views also display other dimensional details, providing precise size information for the product.

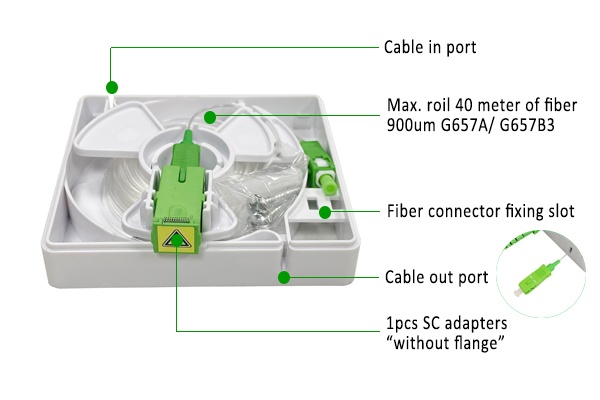

It features a cable in port and a cable out port for fiber optic cable connection. The box can hold a maximum of 40 meters of 900um G657A / G657B3 fiber. Besides, it is equipped with 1pc SC adapter “without flange” and a fiber connector fixing slot.

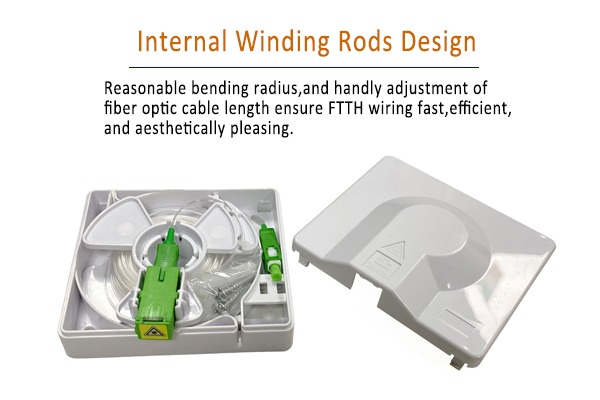

Inside, there are internal winding rods that ensure a reasonable bending radius of the fiber optic cable, allowing for handy adjustment of the cable length, which makes FTTH wiring fast, efficient, and aesthetically pleasing.

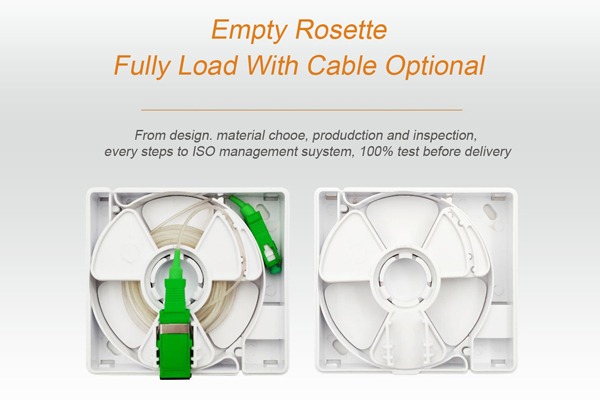

There are two options available: an empty rosette or a fully loaded one with cable. From design, material selection, production to inspection, every step adheres to the ISO management system, and 100% testing is conducted before delivery to ensure quality.
