Description
Features of Fiber Connection Box
- Indoor FTTH wall mount use;
- Made of high quality impact material ABS, high tension strength, long life span;
- 12 pcs SC FC ST adapters optional for distribution;
- Box cover and bottom hinge design, screw lock, easy to open and close, no need special tool;
- Splice cassette with slots for fiber splicing sleeves, 12 cores single fiber splicing;
- Modular fiber management system, mechanical seals, large size, light weight;
- Quality warranty: 2 years.
Specification
| Model | GP20-T02A |
| Dimension | 200*120*46mm |
| Cable inlet | 2pcs PG16 cable glands |
| Cable diameter | ø8-ø16mm |
| Cable outlet | 12 ports SC /FC/ST couplers / adapters |
| Max capacity | 12 cores bunchy fiber |
| Material | Plastic ABS |
| Color | White |
| Operating Temperature | -25- +40 ℃ |
| Storage temperature | -25 ~ +55℃ |
| Relative humidity | ≤85% (30 ℃) |
| Life span | 20 years |
Fiber Connection Box Details

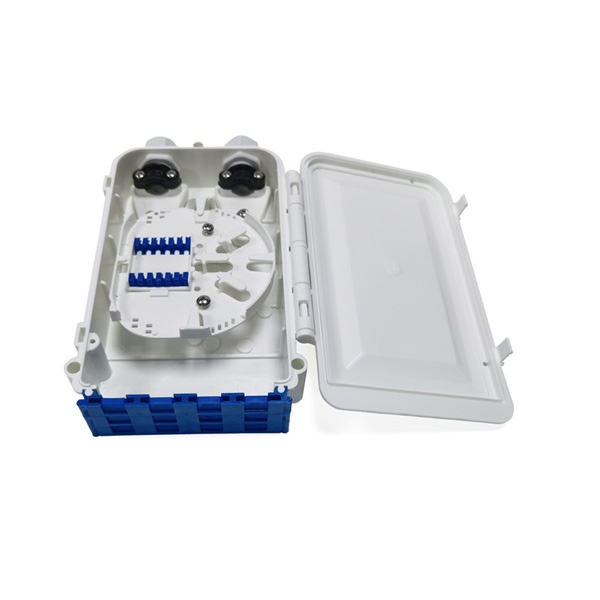

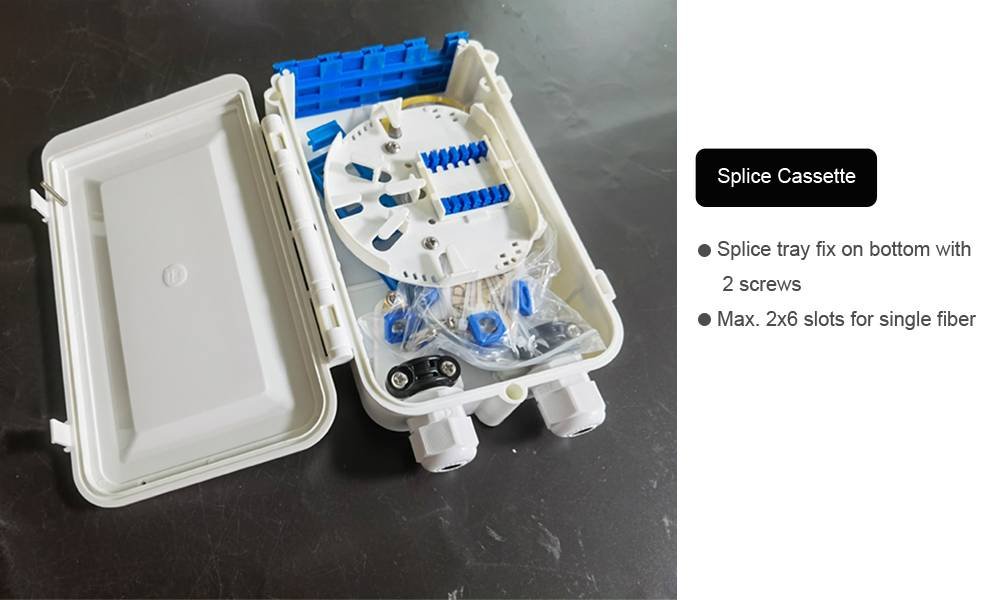

This telecom fiber connection box is made of brand new, high-quality ABS plastic. Inside, screws fix a fiber optic splicing tray, which can splice up to 12 cores in 2 layers.

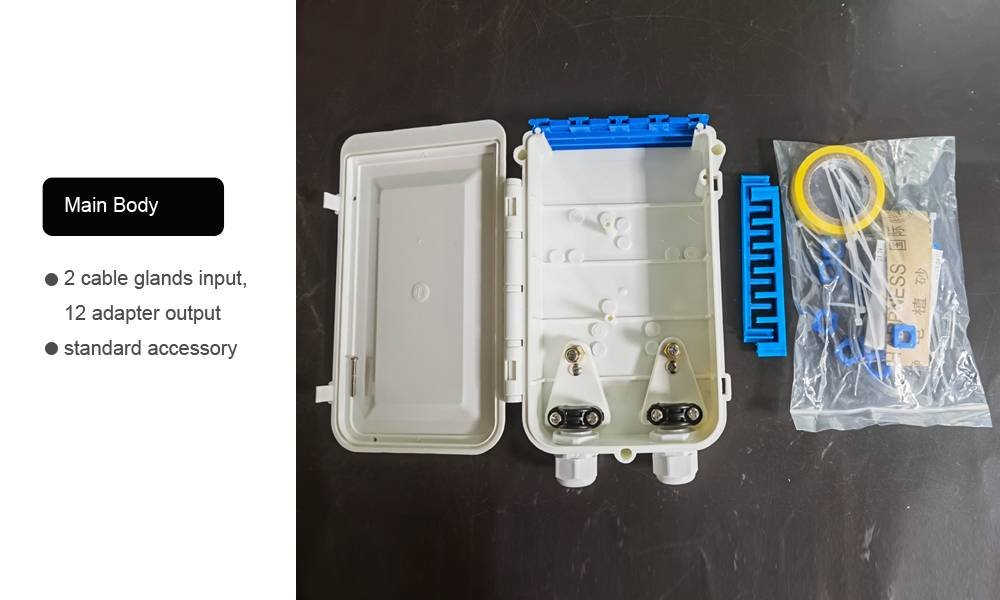

The bottom of the terminal box is for cable enter and exit, and wiring, and distribution. Standard accessories include sealing tape, cable ties, heat shrink tubing, white tubing, number labels, and sandpaper.

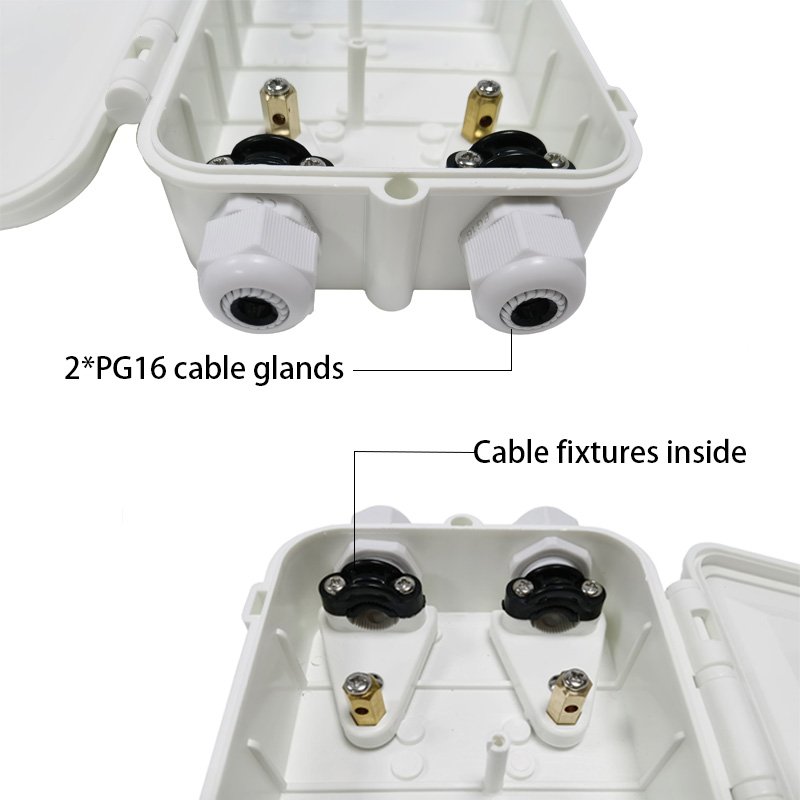

The cable gland is PG16 waterproof type, with IP68 protection grade, white color. Inside with cable fixtures and clamps for the main cable.

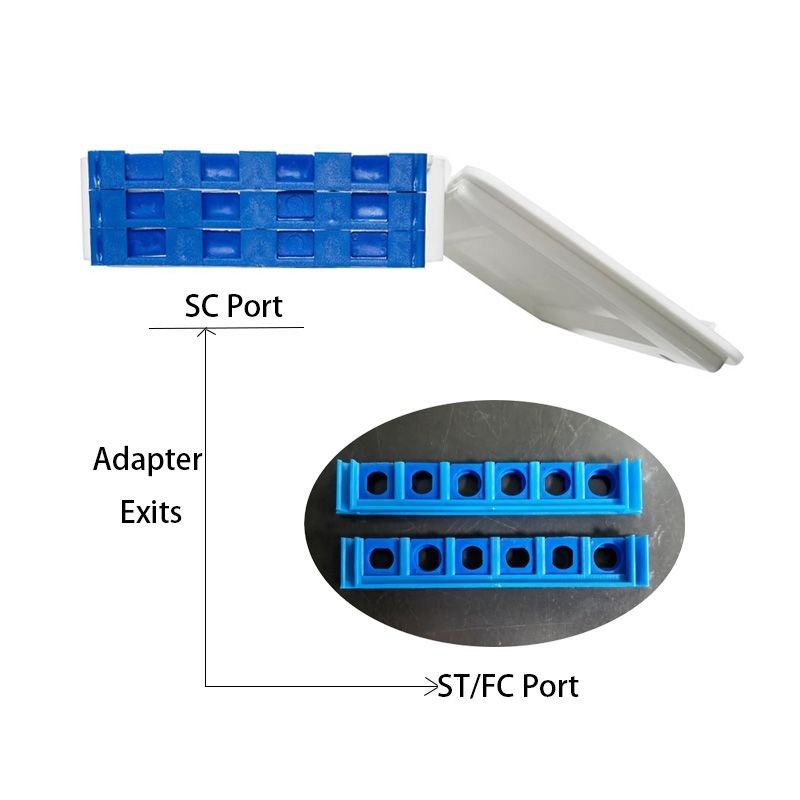

The wall mount terminal box includes 2 waterproof cable glands and 12 plastic adapter interfaces. The square holes are for SC/LC adapters, and the round holes are for FC/ST adapters.
