Description
PLC (Planar Lightwave Circuit) optical splitter for divided equally or converge optical signal. The design of planar waveguide technology provided a low-cost optical splitter solution with a small package and high reliability features.
Fiber optic splitter 1X2 Features
- Low Insertion loss
Low PDL - High Return Loss
- Uniform Power Splitting
- Compact Design
- Wide Operating Wavelength
- Wide Operating Temperature
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
Fiber optic splitter 1:2 Application
- FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON) - Local Area Networks (LAN)
- CATV Systems
- Test Equipment
Fiber optic splitter 1:2 Optical Specification
| Split ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||||
| Operating Wavelength (nm) | 1260-1650nm | ||||||||||||||||
| Fiber Type | G657A1 or customer specified | ||||||||||||||||
| Insertion Loss (dB)S Grade | 4.2 | 7.6 | 10.7 | 14 | 17.2 | 20.8 | 24 | 4.4 | 8 | 11 | 14.6 | 17.8 | 21 | ||||
| Insertion Loss (dB) P Grade | 4 | 7.4 | 10.5 | 13.8 | 17 | 20.4 | 23.7 | 4.2 | 7.7 | 10.8 | 14.1 | 17.4 | 20.7 | ||||
| Loss Uniformity(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 2.0 | 2.0 | 2.0 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| PDL(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ||||
| Return Loss (dB) | 55 | ||||||||||||||||
| Directivity (dB) | 55 | ||||||||||||||||
| Wavelength Dependent Loss(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | 0.2 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| Operating Temperature | -40- +85℃ | ||||||||||||||||
Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB
Fiber optic splitter 1×2 Device Dimension
| Model | Split ratio | Steel tube size(mm) |
| YDPLC-MM-102 | 1X2 | 60*7*4 |
| YDPLC-MM-104 | 1X4 | 60*7*4 |
| YDPLC-MM-108 | 1X8 | 60*7*4 |
| YDPLC-MM-116 | 1X16 | 60*12*4 |
| YDPLC-MM-132 | 1X32 | 80*20*4 |
| YDPLC-MM-164 | 1X64 | 100*40*6 |
| YDPLC-MM-202 | 2X2 | 60*7*4 |
| YDPLC-MM-… | … | … |

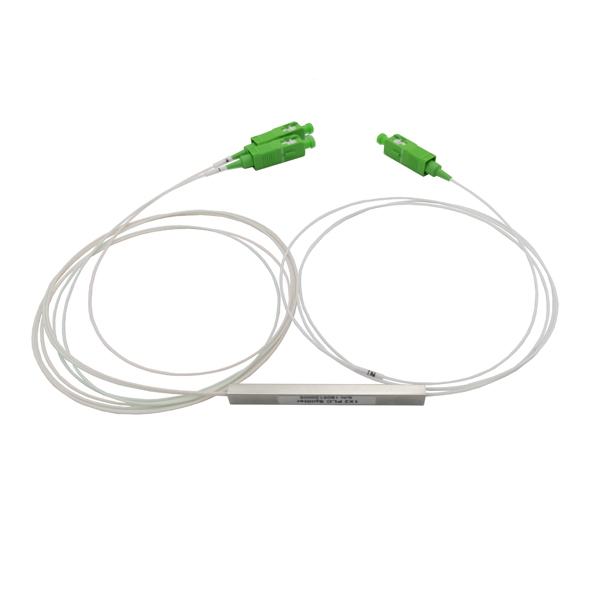

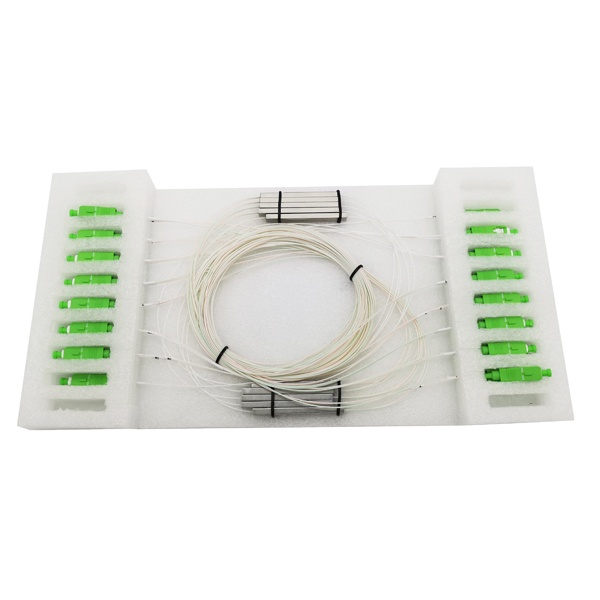

Fiber optic splitter 1×2 Product Details
Mini splitter is composed of 3 parts: the plc chip, the input pigtail and output pigtails. And in order to distinguish the multi fiber outputs, we can use colorful loose tube 900um diameter or use number rings on each pigtails and input side will be with IN ring for identification. And the cable roiling diameter will be standard to ensure the bend radius.

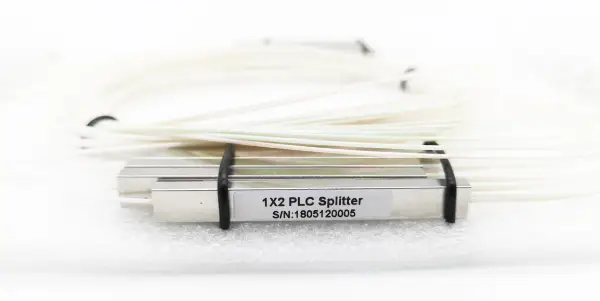

Yingda will paste all steel tube stickers with product name and the serial number for traceability. and the loose tube are hytrel material, which is better than LSZH for optical splitter application.
All our PLC Splitter chips are imported from Korea, high precise and optical stability, low loss and high return loss.
All kinds of fiber optic connectors can be used, sc fc lc st etc. the ferrule can be UPC or APC. But now the mostly used are SC LC, less use for LC.
