High Reliability Pon Splitter 1:9 70:30 Unblanced

Description

PON Splitter Features

Low insertion loss and high return loss
PDL automatic screening system(Ultra low PDL is available)
High reliability and stability
Connector can up to grade B
100% 3D tested by Daisi and Sumix
High-low temperature cycle test
100% test before delivery
FTTH Cabling solution could be design

1×9 PON Splitter 70%/30% Specification

Split ratio (%)		70/30
Operating wavelength (nm)		1260-1650
Fiber type		G657A or customized
IL max(dB)	channel 1	2.1
	channel 2-9	16.5
IL uni(dB)	Channel 2-9	1.8
Return loss (dB)		≥55
Directivity (dB)		≥55
PDL (max.)		0.3
Uniformity (max.)		0.8
Wavelength dependent loss (dB)		≤0.3
TDL (max.)		0.5
Operating temperature		-40 ~+85
Storage temperature		-40 ~+85
Dimension (mm) / LXWXH	Bare fiber steel tube	60x7x4
	900um steel tube	60x7x4
	ABS box	120x80x18

Details of 1×9 PON Splitter 70%/30%

The product is an Unbalanced 1×9 PON Splitter with a 70%/30% split ratio. It features a PLC (Planar Lightwave Circuit) splitter design.

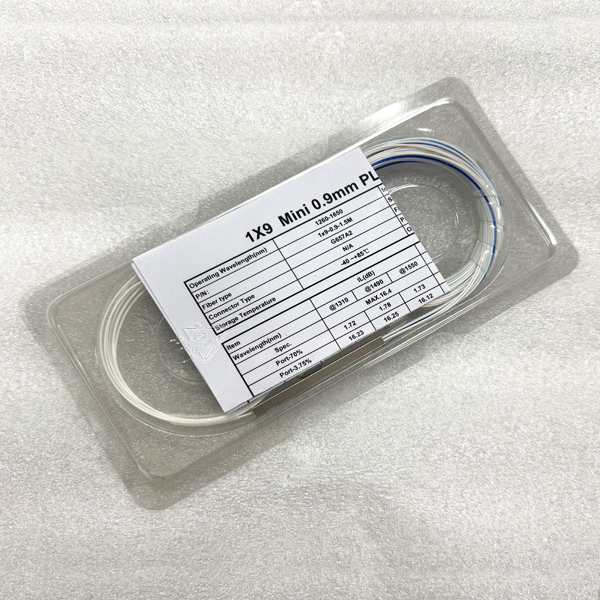

There is a metallic or sturdy rectangular component with a label indicating “1X9 70%30% PLC Splitter” along with a serial number (S/N:24120500001). Connected to this component are optical fibers: one input fiber and nine output fibers. The fibers are neatly coiled, with some having color-coding (like blue and white) for identification.

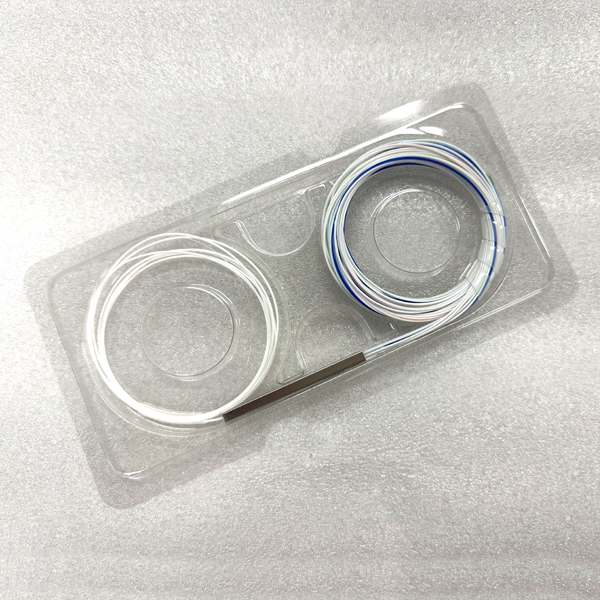

It comes packaged in a clear plastic tray, which helps protect the splitter and fibers during storage and transportation, ensuring the delicate optical components remain undamaged. This splitter is used in passive optical networks (PON) to split an incoming optical signal into nine output signals, with power distribution at 70% and 30% among the outputs, enabling efficient signal distribution in fiber – optic communication systems.
