Description
Fiber Optic Cable Pigtail Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.)
Fiber Optic Cable Pigtail Application
- Fiber Optic Telecommunications
- LAN (Local Area Network
- FTTH (Fiber To The Home)
- CATV&CCTV
- High speed transmission systems
- Fiber optic sense
Fiber Optic Cable Pigtail Specification
| Item | Value |
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc. |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex, duplex (zip cord), Φ3mm,Φ2.6mm, Φ2.4mm, Φ2mm,Φ1.6mm, Φ0.9mm, etc. |
| Polish manner | UPC, APC（8°）, PC |
| Cable color | Yellow, white, blue, orange, gray, green, etc. |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multi mode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Fiber Optic Cable Pigtail Display

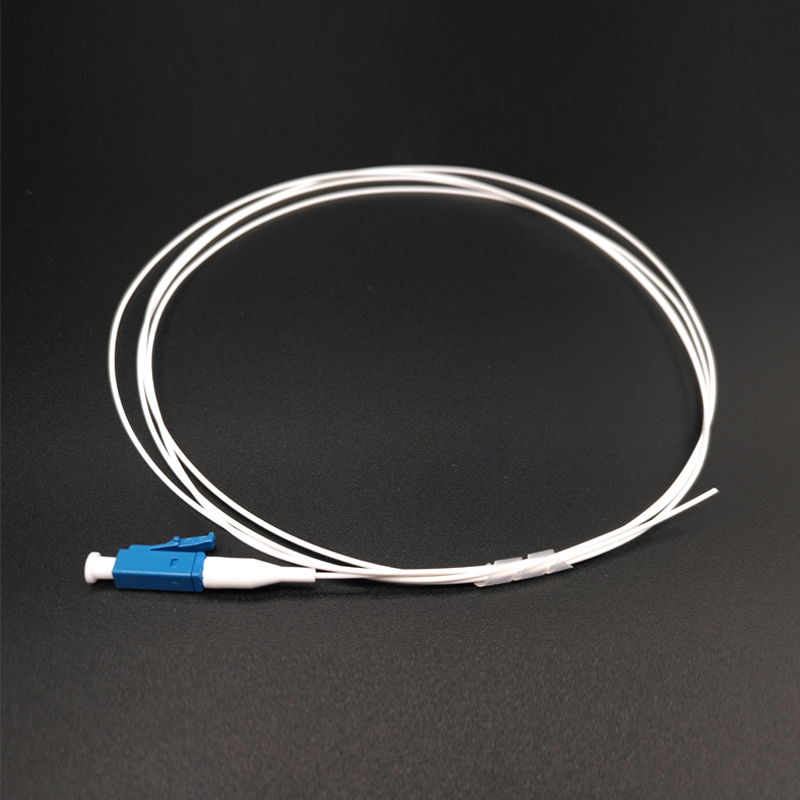

Yingda fiber optic cable pigtials can pre terminated with SC LC FC ST E2000 connectors, singlemode UPC is blue housing, APC green, multimode beige, aqua, violet, etc. Support differenet color or boot types.
For better protection, yingda offer individual package for each pigtail, but for cost budget, we can do 10pcs 20pcs or even more in a bag to save freight cost, if you use it directly on construction side, not for retailer or distribution sales. And if you need to resell in your shop, we support print your logo on the stickers, or maybe custom your own patch cord package bags.
We will roiling the fiber optic cable according to their bend radius, such as G.652D maximum 30mm bend radius. And most of the time, it is 2 rolls per meter, so you count the rolls, then you will know how long of the pigtail it is.
