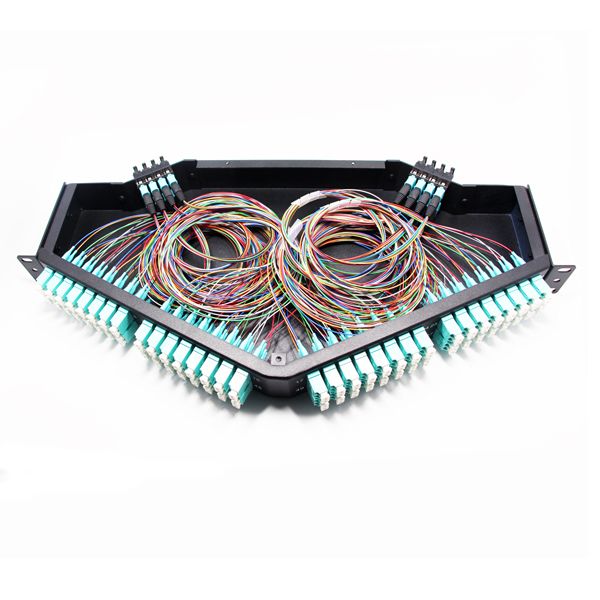

Angled 100G MPO Patch Panel Features
- With angled front to small depth for compact design
- Equipped with MPO/MTP-LC Elite cables for high speed in network infrastructure
- Ready-to-install panel optimizes performance and ensures network uptime
- This high density fiber patch panel can do 96 Fibers, 128 Fibers or 144 Fibers maximum
100G MPO Patch Panel Technical Parameters
| Part no. | FHD1R96-48LC02 | FHD1R128-64LC02 | FHD1R144-72LC02 |
| Fiber count | 96 fibers | 128 fibers | 144 fibers |
| Dimension | 483*220.2*44.3mm | 483*220.2*44.3mm | 483*220.2*44.3mm |
| Front Adapter Type | 48xLC Duplex Adapter | 64xLC Duplex Adapter | 72xLC Duplex Adapter |
| Rear Adapter Type | 8 pcs 12F MTP/MPO （key up-key down） | 16 pcs 8F MTP/MPO （key up-key down） | 12 pcs 12F MTP/MPO （key up-key down） |
| Insertion loss | MPO/MTP≤0.35dB, LC≤0.3dB | ||
| Return loss | MPO/MTP≥60dB（SM）20dB（MM）, LC≥50dB（SM）35dB（MM） | ||
| Fiber Type
| OS2 9/125µm SM BIF OM3 50/125µm MM BIF OM4 50/125µm MM BIF | ||
| Cable Polarity | Polarity A/B | ||
| Cassette Type | 1RU 19′ Angled | ||
It has a width dimension of 483mm as indicated. This 483mm measurement corresponds to the standard rack-mount width, which is commonly associated with 19-inch rack systems, facilitating its installation in such infrastructure.
Internal angled cable managers design facilitates proper bend radius to easier get at the cables and simplifies termination.
100G MPO Patch Panel Technical Parameter
