Description
FDB0416A fiber terminal box integrates the optical fiber splicing, splitting and wiring. It can realize the cable direct or branch connection and is suitable for client’s terminal access. Connecting with the optical communication equipment, through the adapter installed in the box, the drop cable leads the signal out and achieves optical fiber distribution; also it applies to the protective connection of cables and pigtails; in addition, optical cable can be spliced with home cable after splitting, to achieve signal transmission.
Features
- Made of high quality and impact resistant plastics;
- Accommodates 1:8splitter ( 2 pcs) or 1:16 PLC splitter (1pc);
- Anti-UV, anti-impact and waterproof;
- Wall or pole mounted;
- The toothed slots at the outlet can hold outgoing fibers, which avoids loosening or falling off by external force;
- The box body has two opened-type inlets, which realizes operation without breaking the cable.;
- The structural design of bottom box, reversible plate and inner cover make the cable inlet and outlet, fiber splicing area and fiber storage area form a closed and independent partition, which is conducive to manage and maintain.
Specification
Model | FDB0416A |
Dimension (A*B*C) | 231*152*59mm |
Max.Capacity | 16cores (single fiber) |
Cable ports | 4 express port, 16 drop cable ports |
Cable diameter | In:Φ7-12mm, out:2*φ3mm |
Splitter quantity | 1×16 or 2pc 1×8 steel tube |
Adapter quantity | 18SC |
Color | black /white |
Protection level | IP65 |
Standard accessory:
plastic key, expansion screws,F10 ~ F16 hoop,sleeve 40mm
Product Details
Fully load with 1×16 splitter mini module SC APC connectors colorful pigtails, and 16pcs SC APC adapters simplex green
There are individual adapter plate on the bottom of the box, max hold 16pcs SC adapter simplex with flange and metal clip to fix tightly. Also there is winding way for surplus fiber storage and coiling.

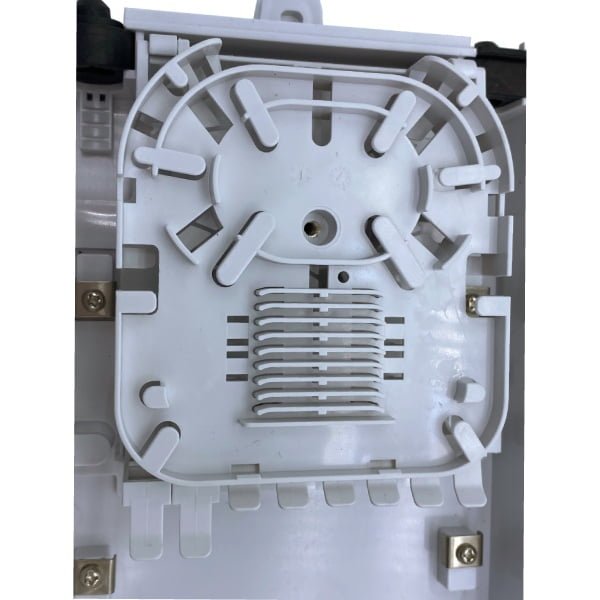

Tthe splice tray is maximum fusion splice 8 cores single fiber, and there is large space for cable winding and fix the tray on bottom with screw in the middle;

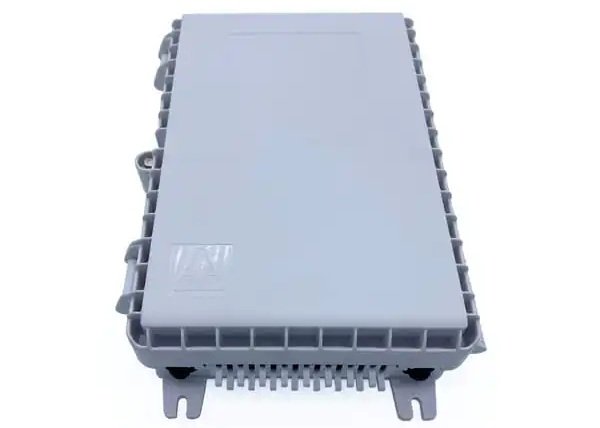

The box is closed by 2 buckles at side with 1 screw lock, anti-thief. There is laser mark reminder on the top cover.
The box is configurating with 3 holes wall mounting design on the back, and cable go in and out of the box direct through, and there is flat rubber seal for drop cables, which ensure outdoor protection grade IP65.
