Description

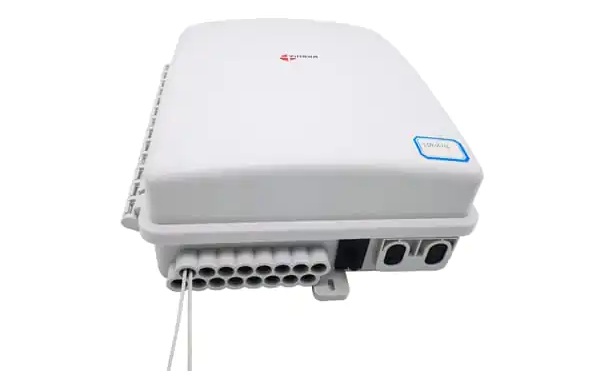

FDB0324 is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Total enclosed with special plastic key and 2clips, anti-thief;
- High strength engineer plastic, wet-proof/water-proof/dust-proof,anti-aging, resistance to chemical and U.V attack;

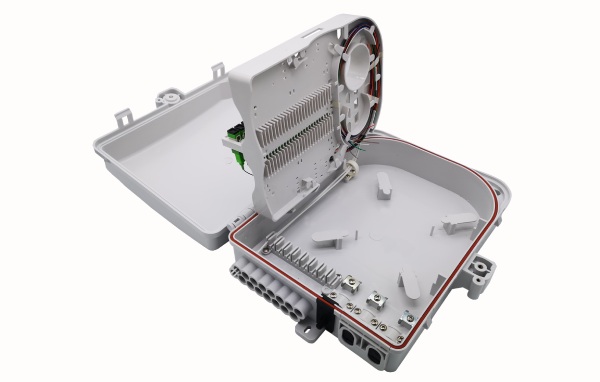

- With clamps for distribution cable and drop cable,mix fiber splicing/ fixation/storage/distribution in one, all port with rubber seal;
- Cable, pigtails are running through own path withoutdisturbing each other;
- Distribution cable enter the box by 3uncut ports, easy for maintenance and installation, no need cut;
- Outdoor Wall mount or pole mount, IP65 protection class;
- 16 outport each can hold 2pcs 2x5mm drop cable to total ftth 32drops;
- Round shape, hinge design, can print customer logo, laser mark on the lid;
- Can use ABS splitter on the bottom of the box if need.
Specification
| Model | FDB0324-A | FDB0324-B |
| Dimension(A*B*C) | 295*334*116mm | |
| Max.Capacity | 24 cores | |
| Cable ports | 3in (uncut cable port); 32out | |
| Cable diameter | in:15m; out: 2*3m | |
| Splitter quantity | 1×16 or 3pc 1×8 steel tube | 1×16 or 2pc 1×8 steel tube |
| Adapter quantity | 24SC | — |
| Color | White/grey | |
FDB0324 Fiber Optic Distribution Box Dimension
