96 Core PC ABS Fiber Distribution Box Manufacturer

Description

Fiber Splice Box Outdoor Features

8 Round cable ports, 1mid span in the middle
Industrial standard user interface, max. can hold 96pcs SC
Made of high impact engineering plastic ABS+PC
Can accommodate 1×4,1×8 & 1×16,1×32,1x64PLC splitter LGX module or adapter panel
Anti-UV, Ultra violet resistant and rainfall resistant
Outdoor wall mount or pole mount, IP65 protection level
Up to 96 FTTH drop cables

Fiber Splice Box Outdoor Specification

Model	OTB-96A-A	OTB-96A-B
Dimension (WDH)	490400150mm
Max. Capacity	96 cores=4pcs 24F tray
Cable ports	8 round port, 1 mid span
Cable diameter	8:Ø30mm; 2: Ø16mm
Max. Adapter	96SC	—
Max. Plc splitter	1pc 1:64/2:64 or 3pcs 1:32/2:32 mini splitter	2pcs 1:32/2:32 LGX splitter
Color	gray
Material	PC+ABS	PC+ABS

Fiber Splice Box Outdoor Details

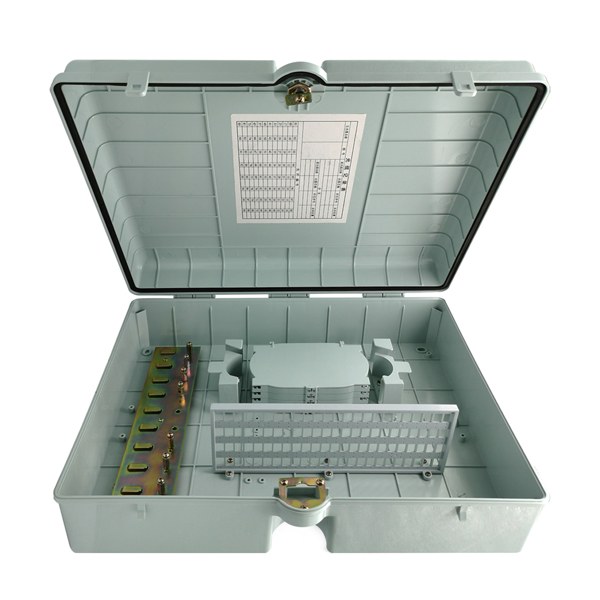

96 Cores FTTH fiber splice box max capacity is 96 cores with 4pcs 24 fiber splice trays and cable winding rods; all the cable entrance with cable clamps and metal sheets to hold the strength members. Customer can choose to use 2x splitter cassette holders, each hold SC APC splitter 1 * 8.

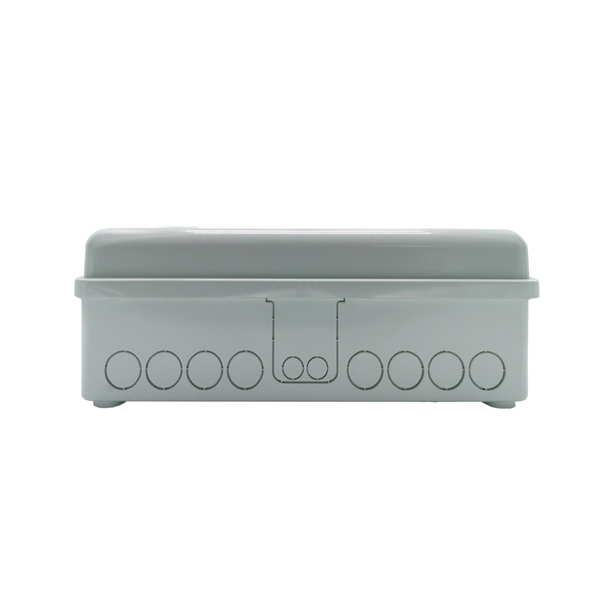

The fiber distribution box are with total 8 round ports at the bottom, and 1 uncut cable ports, all the cable entrance and exit from here, bottom operation. The whole box is made of high impact ABS PC materials, IP65 protection grade with rubber seal around. Except stainless steel key lock , there are 2 buckles to hold the whole box tighther more.

There are 2 types of 96 cores fiber splice box outdoor, one is adapter plate with 72 SC simplex adapters for fiber optic tube splitter, max. 1×64 PLC Splitter, the other type is 2pcs 1×32 splitter cassette, or 4pcs splitter modular 1×16 SC.

OTB-96A fiber splice box outdoor are configurated with cable gronments, nylon ties, heat shrink sleeve, metal key, wall mounting screws, metal sheets+pole clamps (pole mounting kits is optional), cable clamps, etc
