24 Subscribers Home Fiber Splitter Distribution Box,2 Uncut Ports, Sc / Lc Duplex Couplers, Custom Fiber Optic Splitter Types

Description

Features of Fiber Splitter Distribution Box

1. Total enclosed structure.
2. Material: ABS, wet-proof, water-proof, dust proof, anti-aging, RoHS.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution, etc. all in one.
4. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6. Box can be installed by the way of wall mounted or pole mounted, suitable for both indoor and outdoor uses.

Specification

Detailed Display of Fiber Splitter Distribution Box

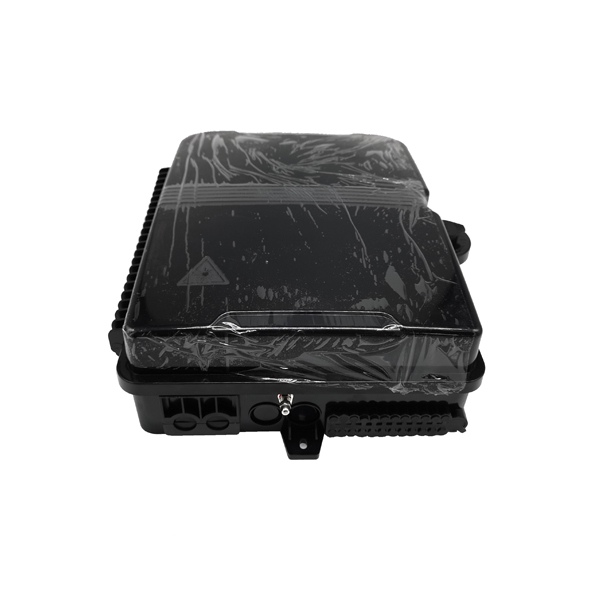

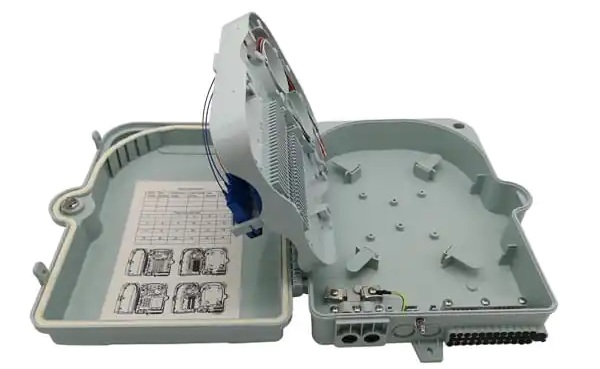

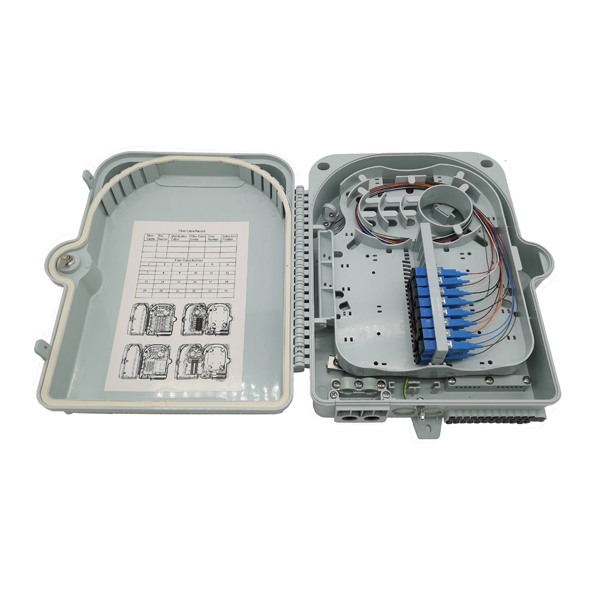

The fiber splitter distribution box is a critical component in fiber optic networks, designed for distributing and managing optical signals. It is features a hinged, lockable lid (with a locking mechanism) for secure access and maintenance. The box is designed for wall-mounting or pole-mounting, with structural elements to support fiber management components.

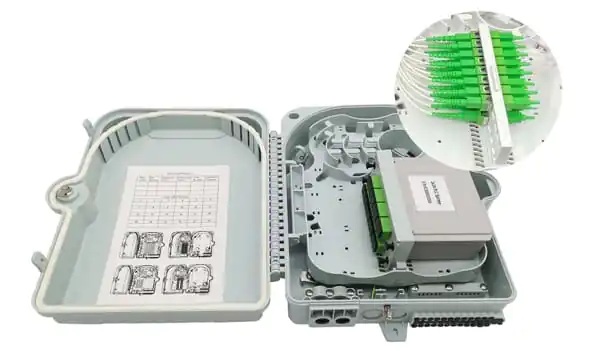

Modules like the one with green SC/LC connectors are used for splitting an incoming optical signal into multiple outgoing signals. The splitter module is removable and replaceable, supporting different splitting ratios (e.g., 1:8, 1:16).

The connectors are organized in two rows, with numbers (202, 16, 15, 14, 13, 12, 11, 10, 9, 201, etc.) marked above them. This numbering helps in identifying and managing each output port for easy installation and maintenance.

The splitter is designed to be mounted within a fiber optic distribution box (visible in the background). The box provides physical protection, organization, and management for the splitter and associated fiber optic cables.

There are dedicated spaces for organizing and splicing fibers. The trays can be lifted or adjusted to facilitate easy access to fiber splices and connections. These areas include grooves and holders to manage fiber slack and prevent bending or damage. Besides, multiple ports are provided for incoming and outgoing fiber cables, ensuring organized cable management and sealing to prevent dust and water ingress.

Inside, there are datasheets and some elemental components included for easy assembly and upgrades, including:

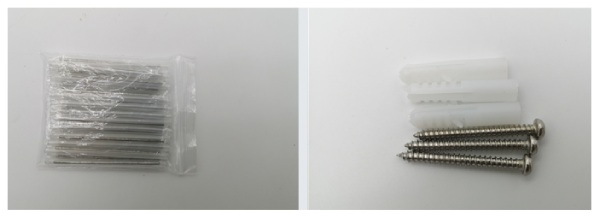

• Metal Pins (in Plastic Bag): These are used for precise alignment or as components in electrical or mechanical connections, ensuring stable and accurate contact in devices.
• Screws and Plastic Anchors: The screws are used to fasten objects together, and the plastic anchors (wall plugs) provide support when screwing into materials like drywall, preventing the screws from pulling out.

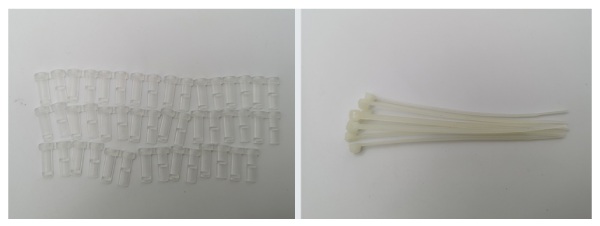

• Transparent Plastic Caps: They serve as protective covers, likely for fiber optic connectors or other delicate components, to prevent dust, dirt, and physical damage.
• Cable Ties: These are used to organize and secure cables, keeping them neat, preventing tangling, and ensuring a tidy setup.

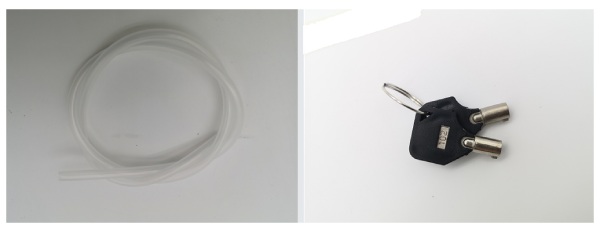

• Transparent Tubing: This is probably heat-shrink tubing or a protective sleeve for fiber optic cables or wires, offering insulation, protection from environmental factors, and mechanical support.
• Keys: They are used to lock and unlock the fiber optic distribution box, providing security and preventing unauthorized access.

Optional Accessory

SC Adapter	1×16 Optical Splitter LGX	SC Type Pigtail	Fiber Optic Pigtails
SC/APC, green SC/UPC, blue IL<0.2dB	Max. 1pc 1×16 splitter cassette, or 2pcs 1×8 splitter cassette	SC Type Pigtail IL<0.3dB	Max. 24 LC pigtail, SC pigtails Fiber length:0.9mm 1.5mts
