Outdoor Nap Fiber Optic Connection Box, 24 Cores Plastic, Gray Color, Sc Connectors With Fiber Optic Pigtails Or Splitter (Unload)

FDB0224B Fiber optic connection box is  access terminal box for FTTH network. It connect feeder cable or distribution cable to 24 subscriber’s drop cable with PLC splitter or fiber pigtails,, which integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. The internal structure can be adapter plate or splitter module, color: white, gray or black.

Description

Fiber Optic Connection Box Features

  • Total enclosed with key and 2*buckles, square shape, light weight, compact size;
  • High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
  • Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
  • Cable, pigtails are running through own path without disturbing each other;
  • Rotate plate can be flipped up, front for 1X16 LGX splitter or micro splitter with24SC adapter, back is for fusion 24cores.
  • Feeder cable can be placed by expression port, easy for maintenance and installation;
  • Outdoor Wall mount or pole mount, IP65 protection class
  • Laser mark and logo print reserved on the lid



Fiber Optic Connection Box Specification

Model FDB0224B-A FDB0224B-B
Dimension  320*230*100mm
Max.Capacity 24cores (single fiber)
Cable ports 1mid span, 1cable gland, 24out
Cable diameter 1mid span(Φ14.5mm), 2cable gland(Φ7-12mm), 24out:2*3mm
Splitter quantity 1×16 or 2pc 1×8 steel tube 1×16 or 2pc 1×8 LGX module
Adapter quantity 24SC
Color Grey/black

Fiber Optic Connection Box Details

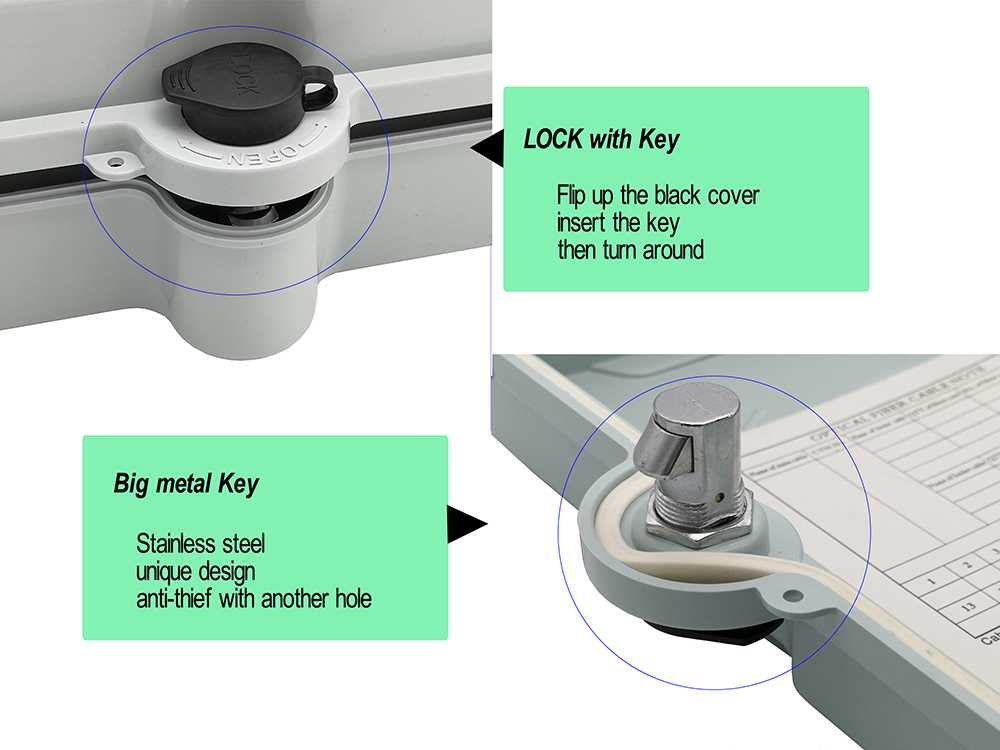

This ftth box is total enclosed with a metal key with dustproof plastic cover, with open and closure mark direction, anti-thief and long duration.

The internal edges with white waterproof rings made of rubber, which ensure to use outdoors, meet IP65 protection grade.



outdoor nap fiber optic connection box, 24 cores plastic, gray color, sc connectors with fiber optic pigtails or splitter (unload)

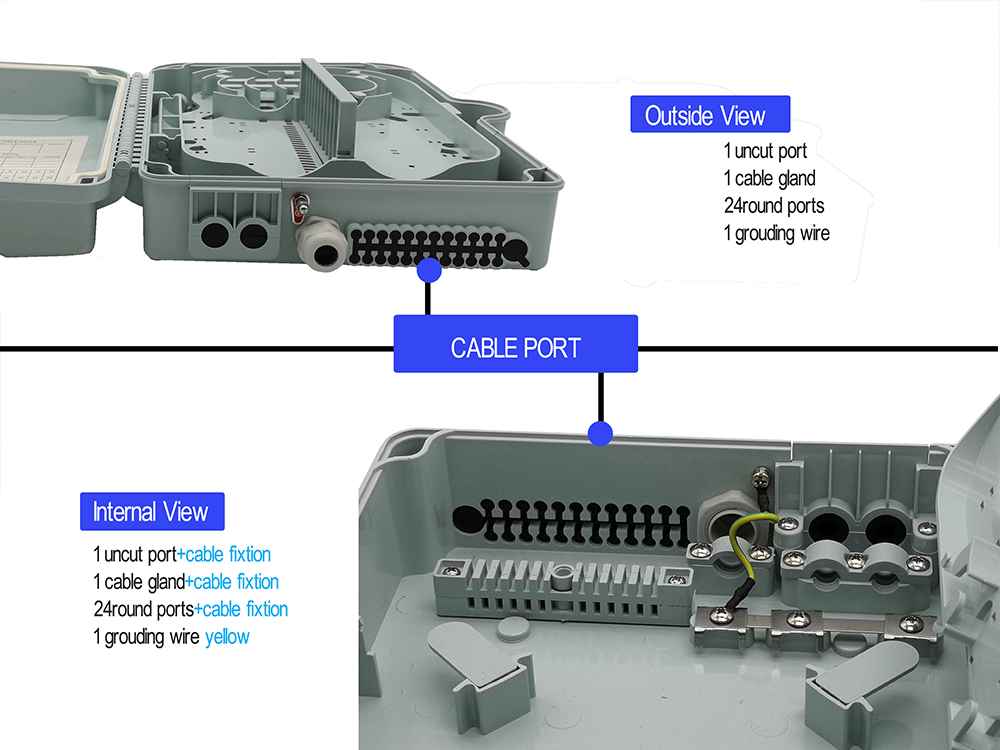

 The feeder cable came into the box from the bottom left 1 uncut port or with 1 PG gland 12.5mm diameter, with grounding wire.

The drop cable will go out of the box from the bottom right round ports 24pcs, max. 3mm or 2x3mm flat drop cable wires. All the cable entrance and exit with cable clamps and fixtures to hold the cable in place.

All the metal parts in the box are stainless steel materials.

outdoor nap fiber optic connection box, 24 cores plastic, gray color, sc connectors with fiber optic pigtails or splitter (unload)

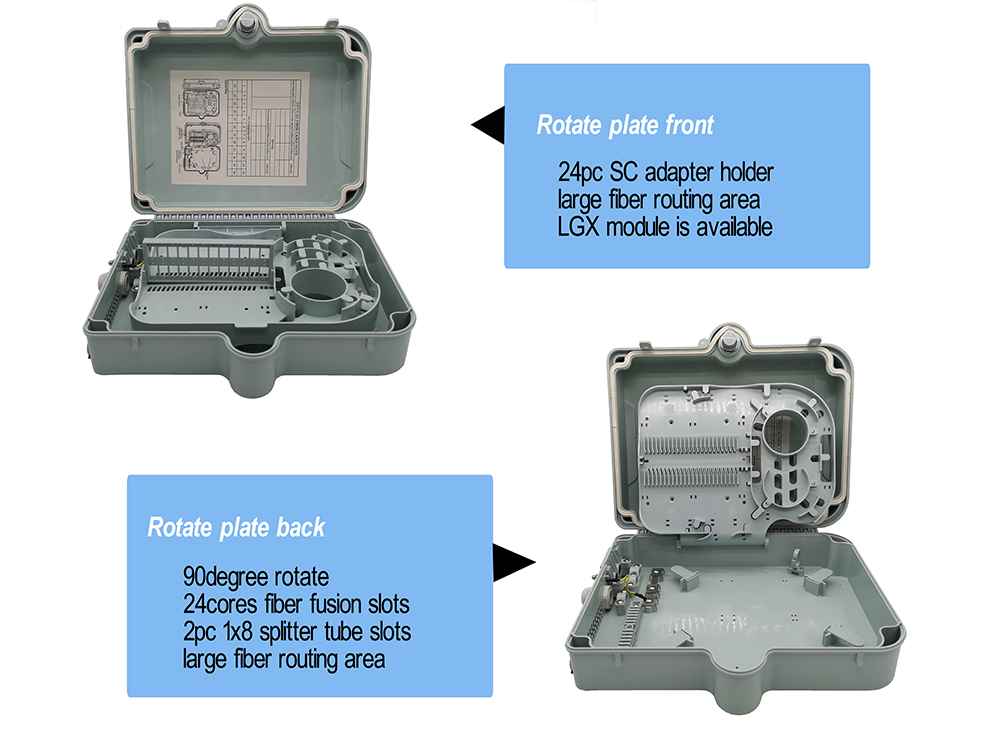

This fiber distribution box is specially 3 layer deisgn with rotate plate, top is fiber distributin / splitting with winding area at side for surplus fibers. We can bring the drop cable into each subscrbers by using fast connectors or fiber pigtails. The adapter plate are 2way 12 ports with SC simplex port, there are mounting holes on adapter panel to fix the adapter screws.

The adapter plate max hold 24pcs SC simplex for 3pcs 1×8 plc splitter blockless type, or replace it with 2pcs 1×8 fiber splitter cassettes or 1pc 1×16 splitter LGX modules instead.

If this box only use for fiber splicing, it can hold maximum 24pcs SC pigtails or LC duplex pigtails with LC/SC fiber optic couplers.

Back of the rotate plate are for fiber optic splicing, max. 24 slots one layer for better holding the fiber joints, without loosing. The heat shrinkable protector tubes used in this box are 60*1.0mm, if you need any other types, please contct our sales.

outdoor nap fiber optic connection box, 24 cores plastic, gray color, sc connectors with fiber optic pigtails or splitter (unload)

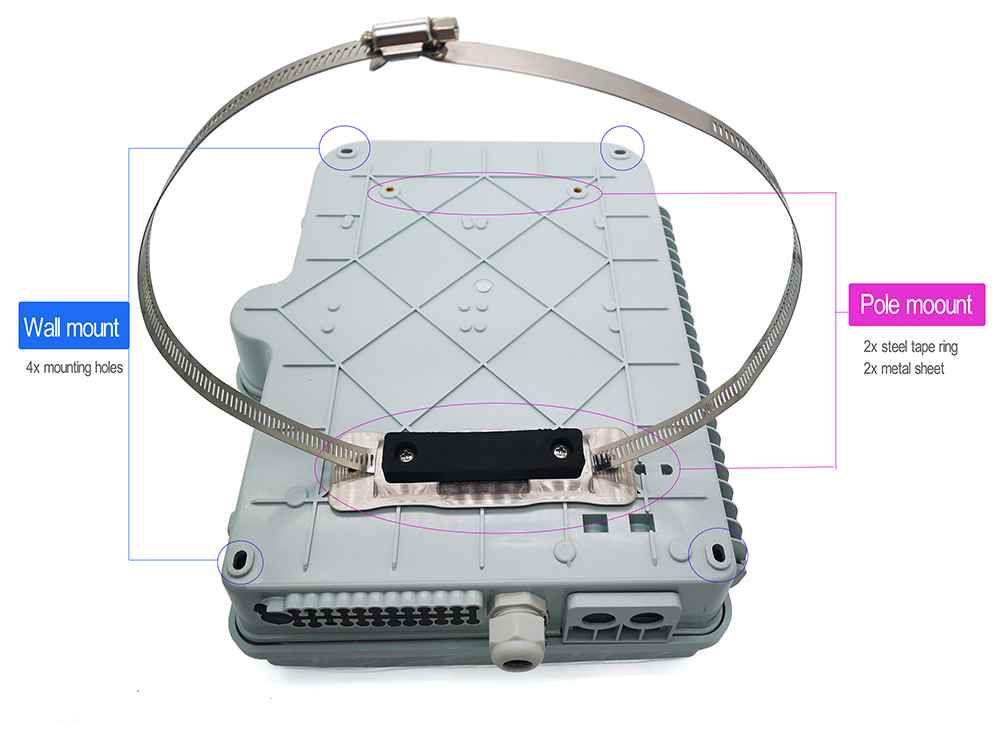

This fiber distribution box can be wall mounting (satandard configuration) , there are 4 mounting holes for wall mounting at back.

Pole mount should configure with bleow metal rubber sheet andstainless steel clamps.

outdoor nap fiber optic connection box, 24 cores plastic, gray color, sc connectors with fiber optic pigtails or splitter (unload)

Fiber Optic Connection Box Related Products

Fast Connector Fiber Adapter 1×16 Optical Splitter LGX Blockless Fiber splitter Fiber Optic Pigtails

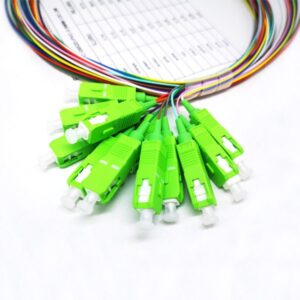

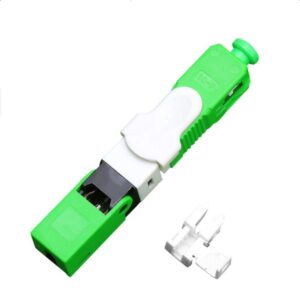

esc250d fast connector sc field installable for ftth drop cable 2*1.6mm, 2*3.0mm flat drop cable, 52mm, individual pack adapter sc apc simplex single mode sm 9/125um lgx splitter plc 1x16, with in and number mark, with blockless splitter internal, sc couplers,screwlock cover, gray color 8 way mini plc splitter 1x8 for telecom, with sc apc connectors and pigtials, colored loose tube 0.9mm with individual pack sc apc sm fiber pigtail 0.9mm sx 12 color options, high performance optical cable
Max. 24 SC fast connector, LC fast connector





Max. 24 SC adapter or LC duplex adapters with flanges for mounting Max. 1pc 1×16 splitter cassette, or 2pcs 1×8 splitter cassette Max. 1pc 1×16 splitter cassette, or 2pcs 1×8 splitter cassette Max. 24 LC pigtail, SC pigtails

Fiber length:0.9mm 1.5mts
