Description
Features of Splitter Distribution Box
- Box is with small special lock with 2 clips and 1 screw rod.
- High strength engineering plastic, whole box is enclosed with waterproof circle, protection class IP65.
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance.
- 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix and winding, both sides with adapter holders.
- All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion.
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius.
- Top cover with laser mark, and large space for logo or wiring diagram printing.
- FTTH outdoor wall mounted, pole mount, aerial mount.
- It is applicable for outdoor cables or indoor soft cable.
- The box can use for a minimum period of 20 years.
Specification
| Model | FDB0216L |
| Dimension | 306*237*116mm |
| Adapter qty | 16pcs SC simplex coupler with flange |
| Splitter qty and type | 2 pcs 1:8 splitter or 1pc 1:16 splitter |
| Max. Capacity | 24 cores single fiber |
| Minimum fiber bending | ≥30mm |
| Cable inlet | 1 mid span, 2pcs PG13.5 cable glands |
| Cable outlet | 16 pcs round rubber ports for drop cable |
| Color | Grey, black |
| Protection grade | IP65 |
Detailed Display of Splitter Distribution Box
This box is made of gray plastic (it could be also customized in black), featuring a robust and durable structure. The box has a hinged design for easy opening and closing, and is equipped with metal latches on both sides to ensure a secure closure. There is also a lockable mechanism (with a keyhole) on the front for added security.
The box has mounting feet or brackets, allowing it to be installed on walls or other surfaces. The design ensures stability and ease of installation in various environments, including outdoor or indoor settings where fiber optic distribution is required. Multiple circular ports are present on the front side, designed for the entry and exit of fiber optic cables. These ports can accommodate different sizes of fiber cables and provide a sealed connection to prevent dust and moisture.

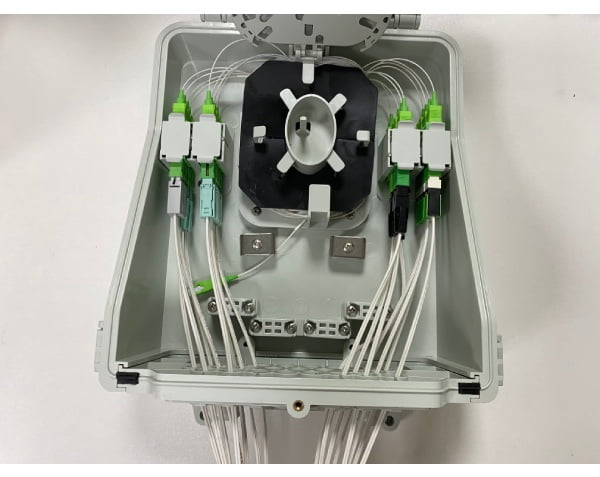

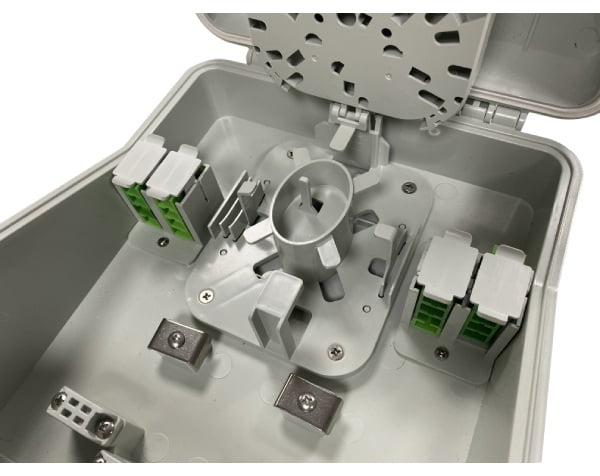

When the box is opened, internal components such as 2 pcs 1:8 splitter or 1pc 1:16 splitter (the central gray device) and 16 pcs fiber optic adapters (the green modules) are visible. The splitter is used to split an incoming optical signal into multiple outgoing signals, and the adapters are used for connecting fiber optic patch cords, enabling the distribution of optical signals to different users or devices.

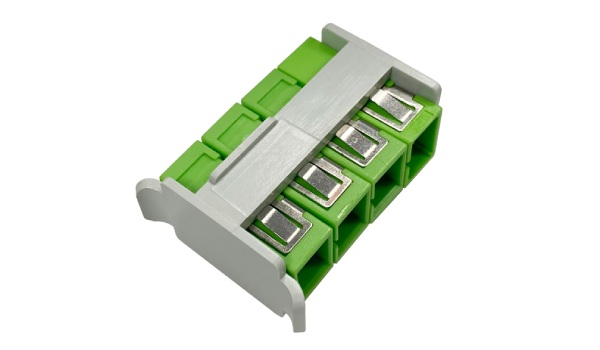

Larger version of the green modules – SC simplex coupler with flange
Full illustrated display:
It is designed to be weather-resistant and dust-proof, making it suitable for outdoor use. The sealed ports and the secure closure of the box protect the internal fiber optic components from environmental factors, ensuring reliable operation and long-term performance.
