2 Cover Unique Design Fiber DP Box, With 2 Pcs 1×8 Splitter Modules, White Color, Outdoor Pole Mount

Description

Features of Fiber DP Box

• Total enclosed structure with key lock, 2 separate covers.
• High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, resistance to chemical and U.V attack.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.
• Cable, pigtails, patch cords are running through own path without disturbing each other.
• Outdoor Wall mount, protection class IP65.

Specification

Detailed Display of Fiber DP Box

The Fiber DP Box, also known as a Fiber Distribution Point Box, is a crucial component in fiber optic network deployment, designed for efficient fiber optic cable management, splicing, and distribution, which is in grey white.

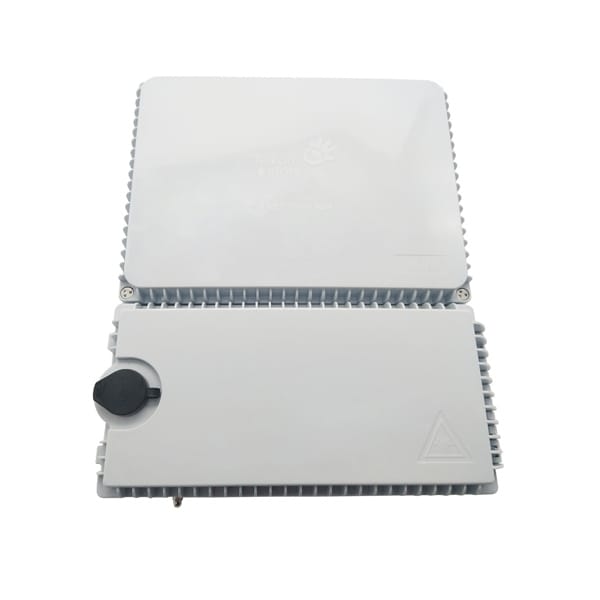

First of all, it has a double-lid design with a secure locking mechanism (a black safety lock knob is visible). The edges are equipped with ribbed structures, which enhance the box’s strength. And a PE waterproof sealing ring is integrated to ensure excellent water resistance, making it suitable for outdoor environments.

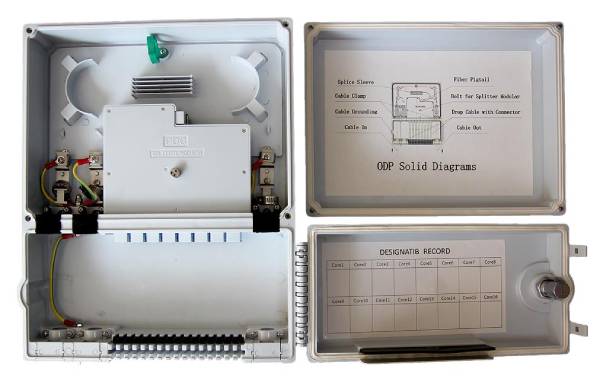

Besides, it could contain 2pcs 1×8 mini module unit (labeled “PDC Splitter Modular”) secured by a bolt. This module is responsible for splitting incoming optical signals into multiple output signals. Equipped with splice sleeves for fiber optic splicing. Fiber pigtails are also present, which are short fiber optic cables used to connect the splitter to the drop cables.

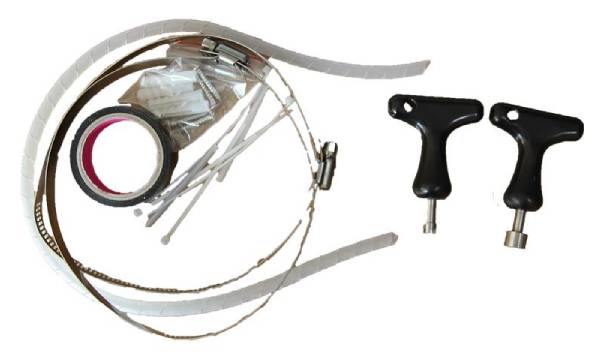

The product comes with a set of installation accessories, including:

• • Cable ties for organizing cables.
  • Tapes for sealing or labeling.
  • Special T-shaped tools for opening the safety lock and performing maintenance.
  • Metal straps and screws for mounting the box.

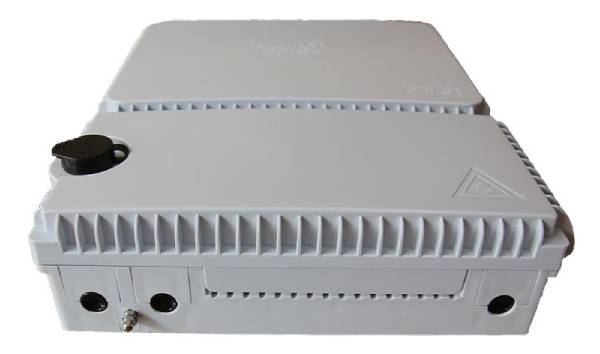

Also, there are optical fiber inlet and drop cable outlet ports at the bottom of the box, organized to manage the flow of main fiber cables and distributed drop cables.

Optional Accessory

SC Adapter	1:8 Splitter	SC Type Pigtail
SC/APC, green SC/UPC, blue IL<0.2dB	Mini Splitter 1×12,1×4,1×8	SC Type Pigtail IL<0.3dB
