Description
Features of FDB Box
- Water proof design with IP68 protection level.
- Integrated with flap up splice cassette and adapt or holder impact test:IK10, pull force:100N, full rugged design.
- All stainless metal plate and anti-rusting blots, nuts.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 2pcs 1×8 splitter can be installed as an option.
- Mechanical sealing structure and mid span cable entry.
- 16 pcs adapters for drop cable patching.
Specification
| Model | FDB0216F-S |
| Dimension | 335*240*122mm |
| Max capacity | Splice 48 fibers (4 trays, 12 fiber/tray) |
| PLC Splitter qty | 2pcs 1×8 mini splitter module |
| Adapter qty | 16pcs SC simplex coupler |
| Net weight | 3.2kg |
| Color | Black |
Detailed Display of FDB Box

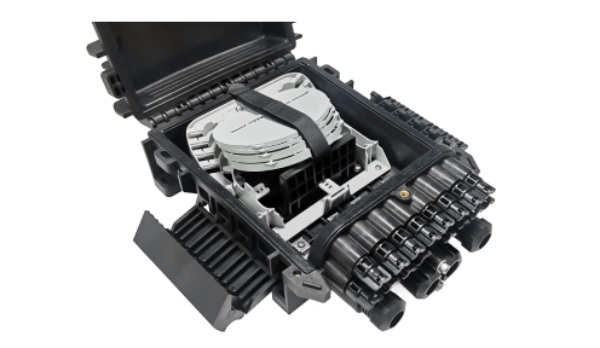

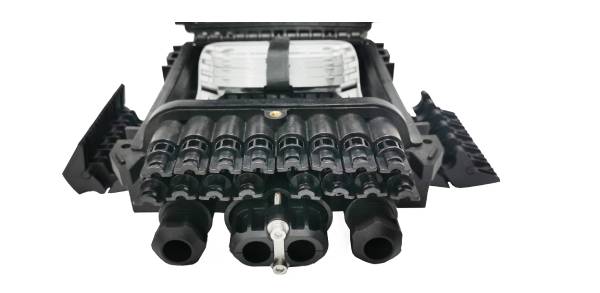

The box has a robust enclosure with multiple fiber optic ports at the front, allowing for the connection of numerous fiber optic cables. There are also several cable entry/exit ports at the bottom, facilitating the routing of incoming and outgoing fibers. A locking mechanism (visible as a metal screw) ensures the box can be securely closed to prevent unauthorized access. When opened, the interior reveals a well-organized fiber management structure. A fiber optic splice tray is centrally located, where optical fibers are spliced (joined) and organized. The tray has a circular structure and is secured with a black strap to keep the fibers neatly arranged and prevent tangling. 2pcs 1×8 mini splitter module are compatible with this FDB box.
On both sides of the box, there are sturdy latches. These latches are responsible for securely closing the box, ensuring the internal components remain protected. They are designed to be durable and easy to operate, allowing for quick access when maintenance or splicing work is needed while providing a tight seal when closed.
16pcs SC simplex coupler could be placed inside, providing interfaces for fiber optic cables to be connected and terminated. These components are arranged in an orderly manner, ensuring efficient fiber management and connectivity.

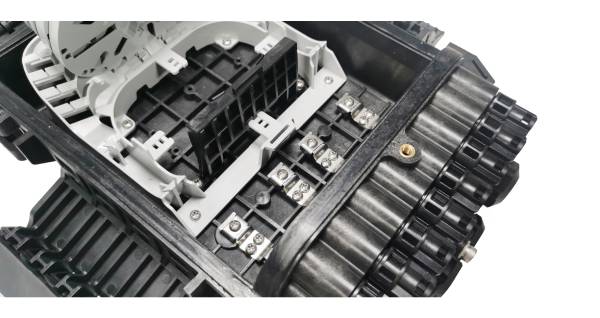

The interior also features structures to neatly arrange and secure fiber optic cables, preventing them from being tangled or damaged. This includes slots and holders that keep the cables in place, making maintenance and troubleshooting easier. The bottom of the fiber optic distribution box has multiple cable entry/exit ports with sealing structures, which organize fiber optic cables for network distribution, prevent environmental contaminants from entering to protect internal components, and offer flexibility for network expansion and maintenance.
This box serves as a central hub for distributing and managing fiber optic signals, enabling the splitting, connecting, and distribution of optical fibers in a network. It supports the organization of fiber optic cables, protection of fiber splices, and convenient access for network maintenance and expansion.
