Description
Features of Fibre Optic Distribution Box
- Box is with key + 2clips, cable entry can be glands or uncut port;
- It is applicable for outdoor cables or indoor soft cable;
- The box can use for a minimum period of 20 years;
- FTTH outdoor wall mount or pole mount;
- Box with waterproof circle, protection class IP65;
- High quality ABS+PC plastic, all metal parts stainless steel;
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
- Rotating splice plate front with 16SC adapter or LGX module, back for 16cores fusion splice and routing area;
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius.
Specification
| Model | FDB0216A-A | FDB0216A-B |
| Dimension (A*B*C) | 320*260*95mm | |
| Max.Capacity | 16 cores (single fiber) | |
| Cable ports | 2cable gland, 16out | 1mid span, 16out |
| Cable diameter | In:Φ7-14mm, out:2*φ3mm | In:φ17.9mm; out:2*φ3mm |
| Splitter quantity | 1×16 or 2pc 1×8 steel tube | 1×16 or 2pc 1×8 LGX module |
| Color | Grey / black /white | |
Detailed Display of Fibre Optic Distribution Box

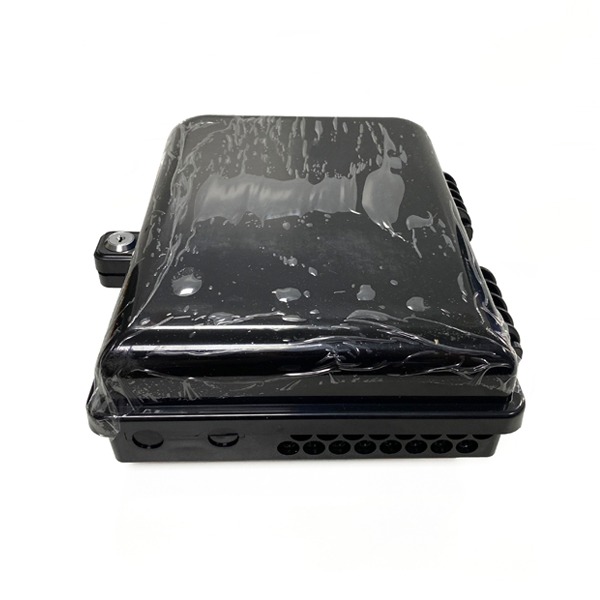

The box is equipped with a secure locking mechanism (a latch with a key slot) to ensure the internal components are protected from unauthorized access and environmental factors. Multiple cable entry/exit holes are present at the bottom, allowing for organized routing of fibre optic cables. The color of the box could be customized, like gray, black, and white.

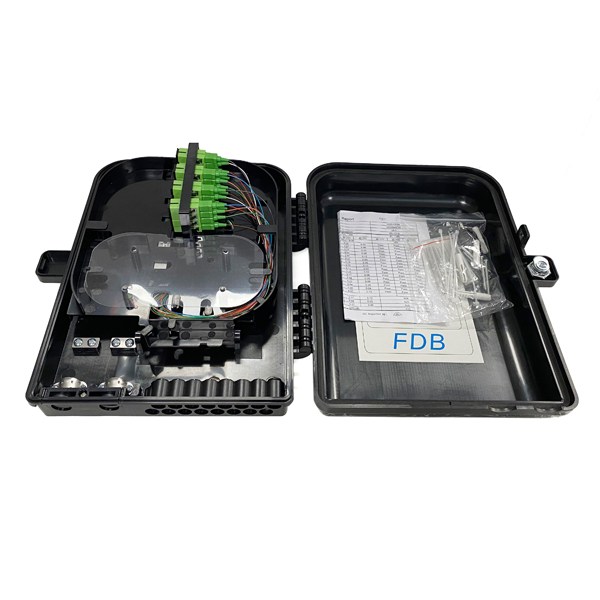

16 Green LC fibre optic adapters are installed, providing connection points for fibre optic patch cords.
Inside the box, there is a QC Report and a package of accessories (such as cable ties, connectors, or other installation tools) labeled with “FDB”.

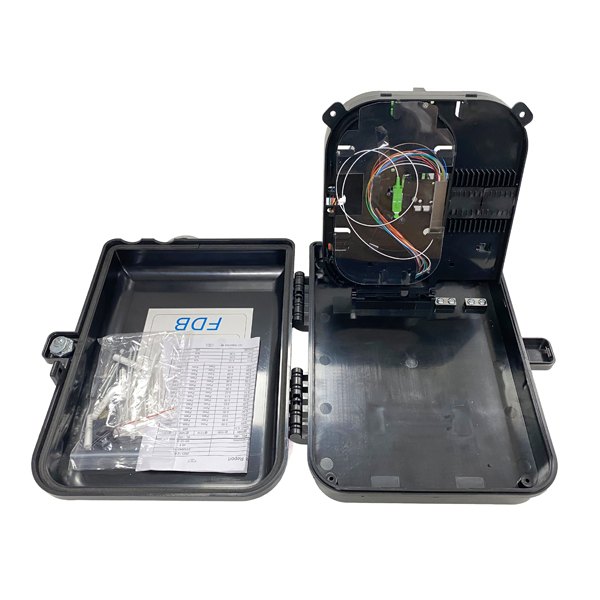

There is a fibre splice tray for managing and storing the slack of fibre optic cables, ensuring they are not bent beyond their minimum bend radius. Various components for fibre splicing and termination are included, allowing for the joining of optical fibres. Moreover, the 1×16 splitter or 2pc 1×8 splitter are both suitable for this box.
