Description
Features of Fiber Distribution Cabinet
- Box is with small special lock with 2clips
- It is applicable for outdoor cables or indoor soft cable
- The box can use for a minimum period of 20 years
- FTTH outdoor wall mounted or pole mount
- Box with waterproof circle, protection class IP65
- High quality ABS+PC plastic, all metal parts stainless steel
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance
- Rotating splice plate front with 12SC adapter fix, back with 12cores fusion splice and routing area
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
Specification
| Model | FDB0212B-A | FDB0212B-B |
| Dimension (W*D*H) | 220*210*50mm | |
| Max. Capacity | 12cores (single fiber) | 12cores (dual fiber) |
| Cable ports | 3 cable glands | |
| Cable diameter | Φ10-14mm | |
| Splitter quantity | 1×8 steel tube | 1×8 LGX module |
Detailed Display of Fiber Distribution Cabinet

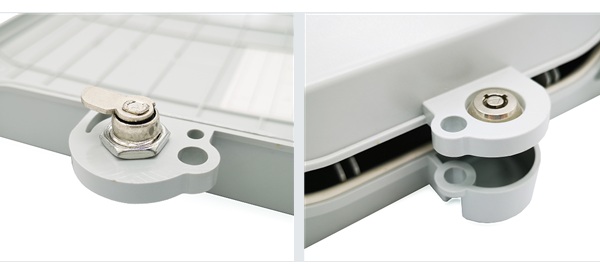

This box has a durable gray-white modular structure with interlocking plastic components, providing robust protection against environmental factors like dust, moisture, and minor physical impacts. The visible part shows a hinge-like or connection structure, indicating that it can be opened for accessing the internal fiber optic cables, splitters, and connectors. The precise molding of the plastic parts ensures a tight fit, which helps in protecting the internal components from dust, moisture, and physical damage. A prominent metallic security screw is visible, which is a tamper-resistant fastener. This design prevents unauthorized access, ensuring the safety and integrity of the optical fibers inside.

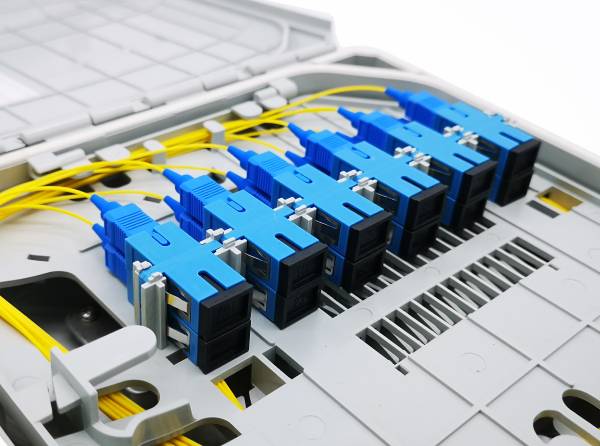

There are 12 blue SC-type fiber optic adapters arranged in rows. These adapters enable the mating of fiber optic patch cords, facilitating the distribution and connection of optical signals.

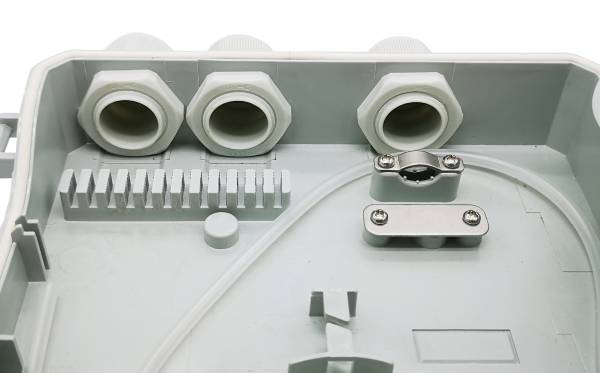

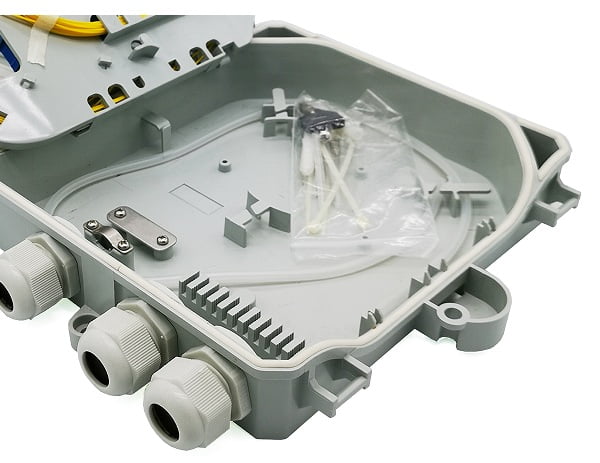

Moreover, various clips, brackets, and fixtures are integrated to secure cables, adapters, and other internal parts, maintaining structural integrity and operational stability.
Components for fiber splicing are visible, including areas to secure and protect spliced fibers, ensuring stable and reliable optical connections.

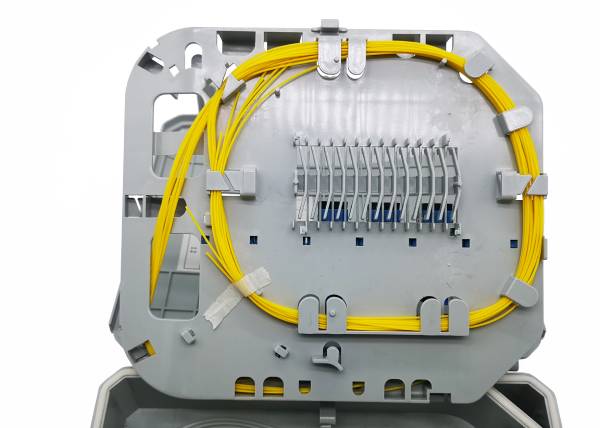

Yellow fiber optic cables are neatly routed and stored. There are dedicated slots and holders to manage the fiber cables, ensuring they are organized and not excessively bent (which could damage the fibers or affect signal transmission). 1×8 splitter could be applied here.
This cabinet is designed for the distribution, connection, and management of fiber optic cables in FTTH, FTTP, or other fiber optic network deployments. It allows for the efficient organization of fiber optic links, enabling easy maintenance, testing, and expansion of the optical network.
