Description
Features of Optical Distribution Box
- Box is lock with special key and 2 brackets
- Rotate tray with 8SC adapter bracket,laser label sticker on lid
- It is applicable for outdoor cables or indoor soft cable
- The box can use for a minimum period of 20 years
- FTTH outdoor wall mounted or pole mount
- Box with waterproof circle,protection class IP65
- High quality ABS+PC plastic, all metal parts stainless steel
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance
Specification
| Model | FDB0208H |
| Dimension (W*D*H) | 240*195*66mm |
| Max.Capacity | 8 core(single fiber) |
| Cable ports | 2 cable glands or rubber seal |
| Cable diameter | In:φ16m m; out:2*3mm |
| Splitter quantity | 1×8 steel tube |
| Adapter quantity | 8SC |
| Color | White |
Detailed Display of Optical Distribution Box

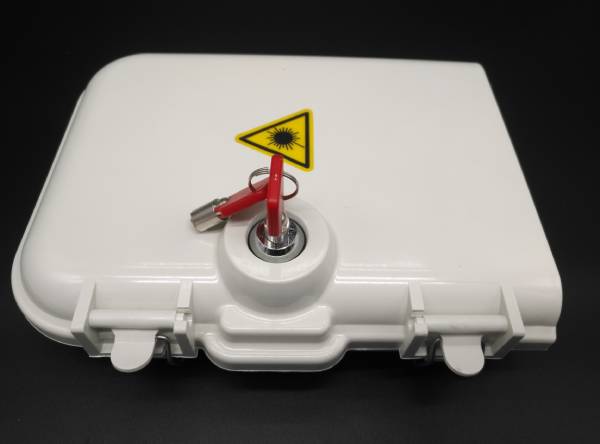

This box has a white, robust plastic shell, which is dust-proof, moisture-proof, and suitable for outdoor or indoor environments. There is a yellow triangular warning label with a laser symbol on the front, indicating the presence of optical signals and reminding users to handle with care. It is equipped with a locking structure (visible with a red key), ensuring the security of internal components.

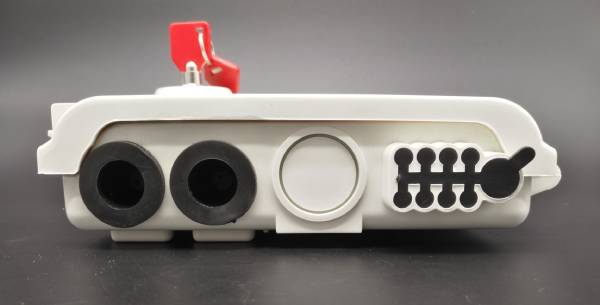

On the side, there are multiple cable entry/exit ports. Some are pre-installed with black rubber grommets for sealing and fixing cables, and there is also a blank port for future expansion. Additionally, there is a component with several circular holes and a black knob, likely for organizing and securing fiber optic cables.

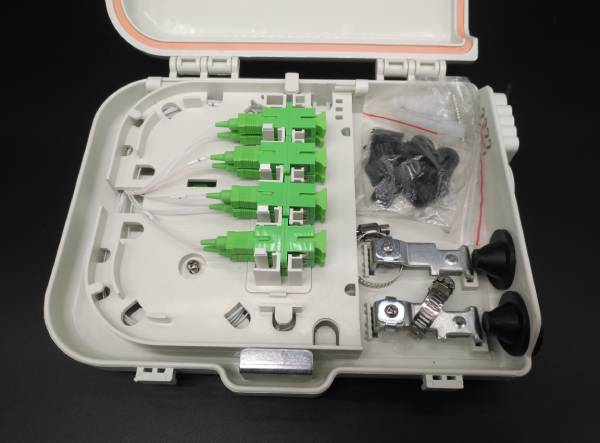

Inside, there are multiple green fiber optic adapters, specifically SC type adapters, which are used for connecting fiber optic patch cords. These adapters are neatly arranged for easy fiber management and connection.
Some accessories like black rubber parts for cable sealing and metal fixtures for securing cables or components are included inside the box, packed in a plastic bag.

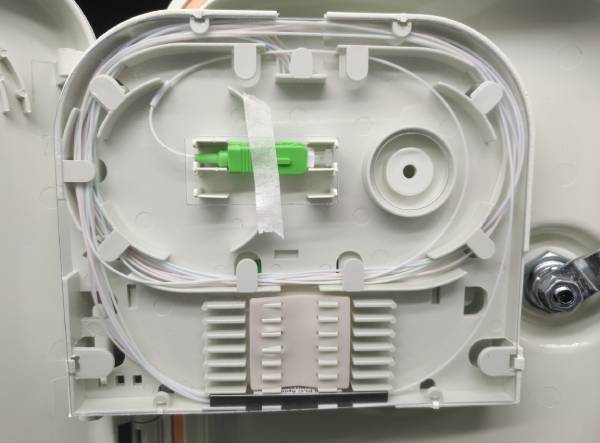

There are designated areas for routing and storing fiber optic cables. The fibers are neatly coiled and managed within the box to prevent bending or damage. A green fiber optic splice or connector is fixed in a slot, and there is also a component for organizing fiber optic terminations or splices. It is equipped with 1×8 PLC splitter, allowing it to be integrated into fiber optic distribution boxes for efficient optical signal splitting. Its miniature packaging enables space-saving installation, making it well-suited for scenarios like FTTH network deployments.
