Description
FDB0208D is a new generation product for fiber to the home. It is designed to connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter in FTTX network.
Features

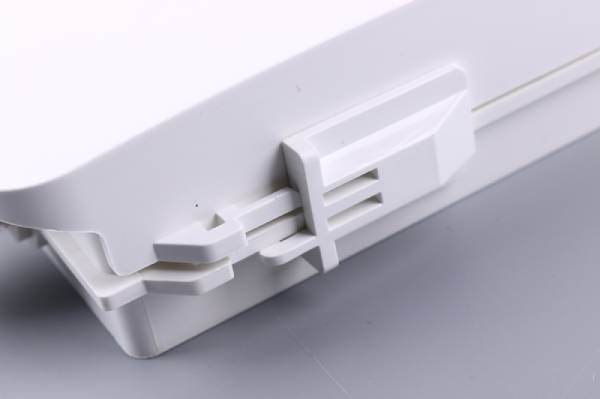

- It is easily to access the box by sliding shackle

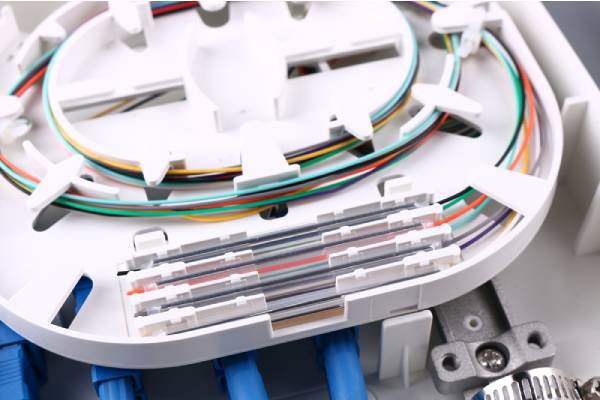

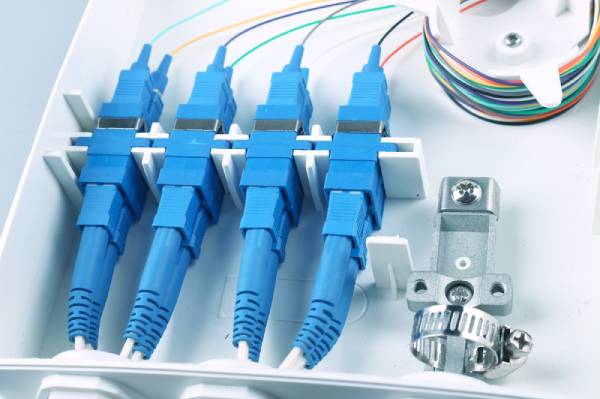

- Rotate tray with 8SC adapter bracket, laser mark on lid
- It is applicable for outdoor cables or indoor soft cable
- The box can use for a minimum period of 20 years.
- FTTH outdoor wall mounted
- All port with rubber seal, waterproof circle, protection class is IP65
- Made of high quality ABS+PC plastic, all metal parts is stainless steel
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance
Specification
| Model | FDB0208D (GP62DW-I) |
| Dimension (W*D*H) | 210*175*50mm |
| Max.Capacity | 8 core(single fiber) |
| Cable ports | 3 cable glands |
| Cable diameter | In:Φ7-12m; out:2*3mm |
| Splitter quantity | 1×8 steel tube |
| Adapter quantity | 8SC |
| Color | White |
Standard Accessory
expansion screw, key, cable clamp and fixture, sleeve, nylon tie
FDB0208D fiber optic distribution box have 2 types of splice tray for different application as below:
