Description

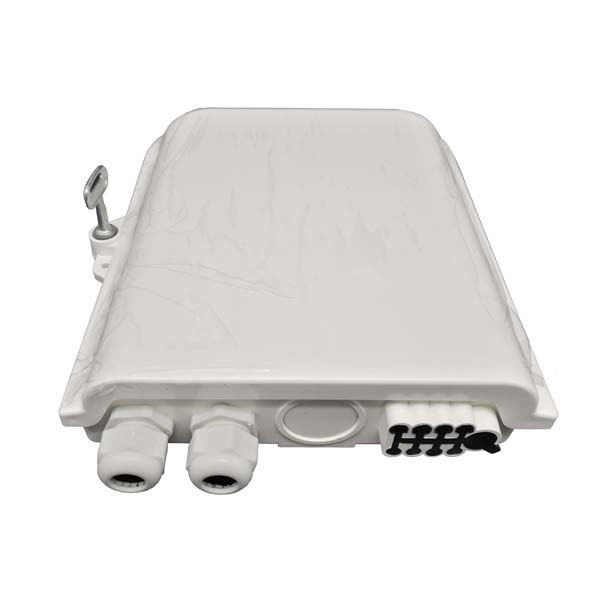

Fiber Optic Distribution Box Features
- Made of high quality plastic, all metal parts is stainless steel, laser mark on lid.
- Rotate tray with 8SC adapter panel or LGX module slot.
- Bottom with coiling parts and sleeve protection holders for cable entry and distribution.
- All port with rubber seal, whole box cover with waterproof circle.

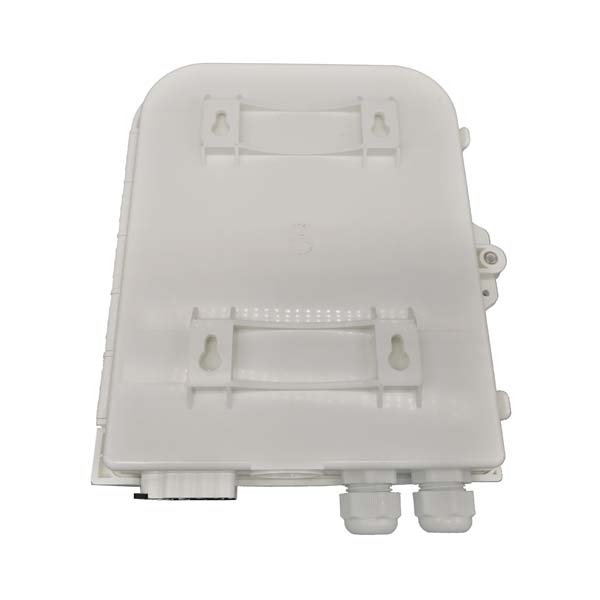

- FTTH outdoor wall mounted, pole mount application.
- Anti-UV, Ultra violet resistant and rainfall resistant, excellent sealing performance, reusable, protection class is IP65.
- The box can use for a minimum period of 20 years.
Fiber Optic Distribution Box Specification
| Model | FDB0208C-a | FDB0208C-b |
| Dimension (W*D*H) | 240*195*66mm | |
| Max. Capacity | 8 core (single fiber) | |
| Cable ports | 2 cable glands or 3uncut rubber ports, 8pcs drop cable ports | |
| Cable diameter | In:Φ7-12m; out:2*3mm | In:Φ14m; out:2*3mm |
| Plc Splitter quantity | 1×8 steel tube splitter | 1×8 LGX module splitter |
| Adapter quantity | 8 SC adapter with flange | — |
| Color | White / black | |
| Material | ABS | |
| Mounting way | Wall mount / pole mount | |
Fiber Optic Distribution Box Details
This 8port outdoor fiber optic distribution box are wide applications, the cable ports can be 3 uncut ports or with 2 cable glands;
And there are two types of internal structure:
- one type is to use adapter plate for 8pcs SC pigtails and adapter, or 8SC adapter with 1×8 splitter mini module.
- The other type is to use 1×8 plc splitter module instead, FTTH flexible functions for site construction.

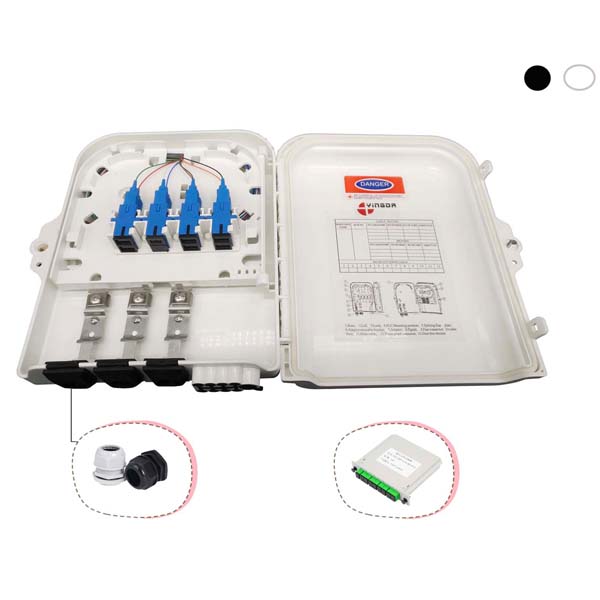

The 8 port fiber optic box with 8pcs SC adapter holdres for SC simplex adapter with flanges, and there is cable fixtures for all cable entrance. The whole box is closed with special metal key, anti-thief and IP65 protection grade with waterproof ring.

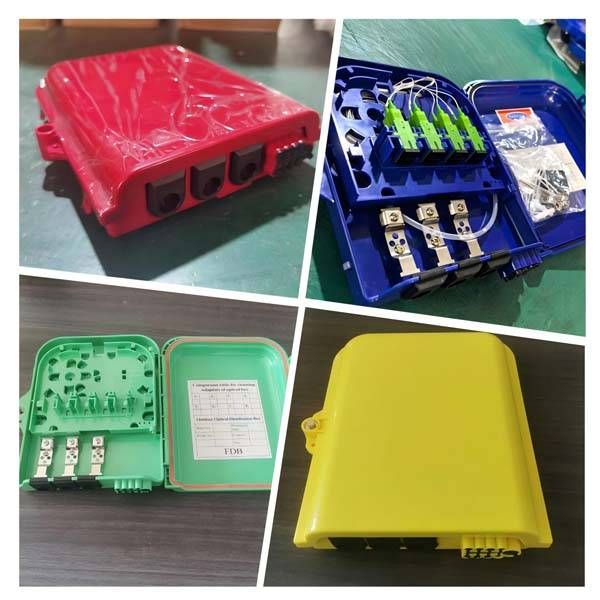

Yingda can custom all kind of colors for the main body: blue, red, gree, yellow, white, balck to meet different market, and we can help pre load all adapters, pigtails, splitters or sleeves in factory, whicn can save labour cost and shipping cost for you.
Fiber Optic Distribution Box Related Products

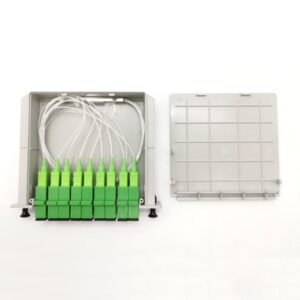

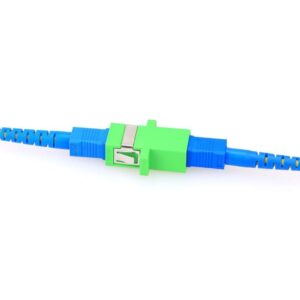

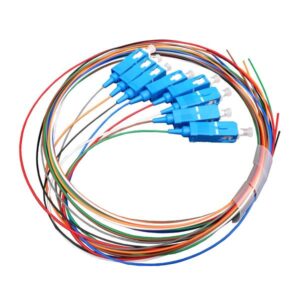

| SC Adapter | 1 * 8 PLC Splitter | Cassette splitter 1 * 8 | SC Type Pigtail |
 |
 |
 |
 |
|
|
|
|
