Description
Pigtail Optic Fanout Kits Features
- Non-metallic material, black color
- POM material
- High temperature resistant and ROHS compliant
- Quick and easy to fix
Pigtail Optic Fanout Kits Application
- Bundled fiber optic cable branching
- Armored fiber optic cable branching
- Field cable branching
- All kinds of fiber optic cables, cable branching program
Pigtail Optic Fanout Kits Specification
| Part no. | OD*L | OD2 diameter & quantity | Cable diameter | Material |
| YDFOK-B0620 | 11.4*40 | 6 cores 2.0mm | 3~8mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B0630 | 14*45 | 6 cores 3.0mm | 3~8mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B0820 | 11.4*40 | 8 cores 2.0mm | 3~8mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B0830 | 14*45 | 8 cores 3.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B1209 | 10*33 | 12 cores 0.9mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B1220 | 14*45 | 12 cores 2.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B1230 | 18*45 | 12 cores 3.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B1620 | 15*45 | 16 cores 2.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B1630 | 22*45 | 16 cores 3.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B2409 | 14*38 | 24 cores 0.9mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B2420 | 18*48 | 24 cores 2.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B2430 | 26*58 | 24 cores 3.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B3620 | 24*53 | 36 cores 2.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B4820 | 26*57 | 48 cores 2.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
| YDFOK-B7220 | 31*80 | 72 cores 2.0mm | 3~12mm or specify | Iron/aluminum/copper/plastic |
Pigtail Optic Fanout Kits Details

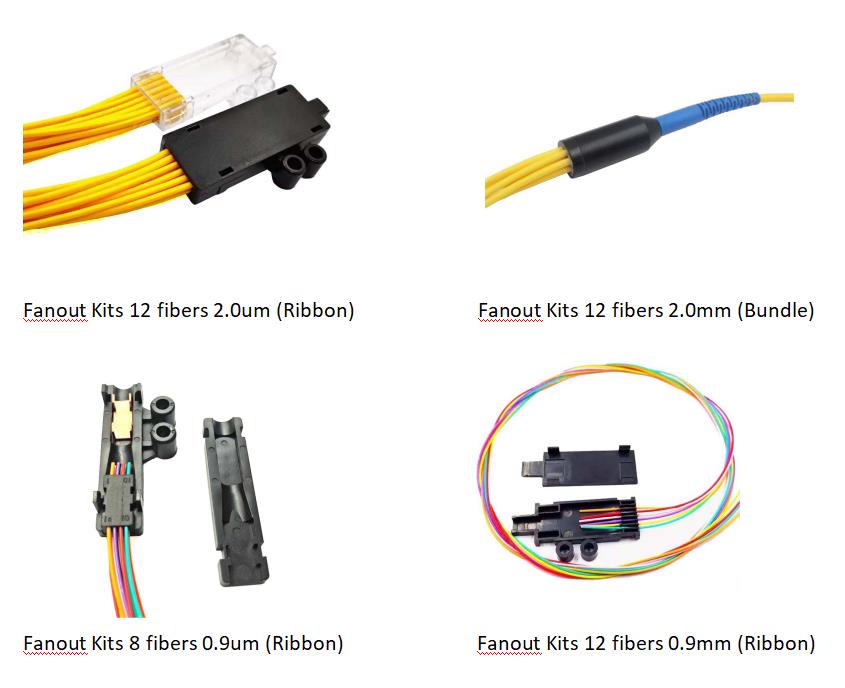

Yingda can custom 4 types of fiber optic fanout kits, suitable for different types of fiber optic cable like distribution cable, ribbon cable. The fiber count can be 4cores, 6 cores, 8 cores, or 12 cores. The fanout kit material can be plastic or metal types. Please specify in advance if you have speical requirements.

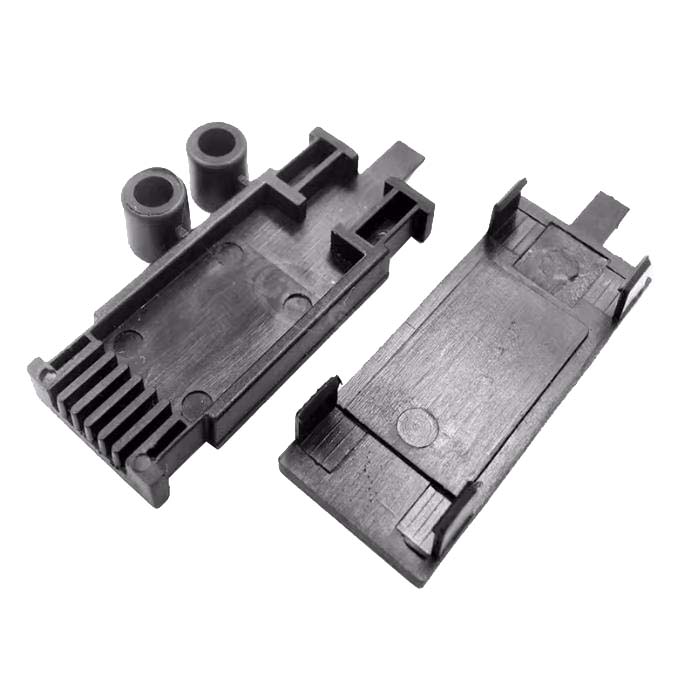

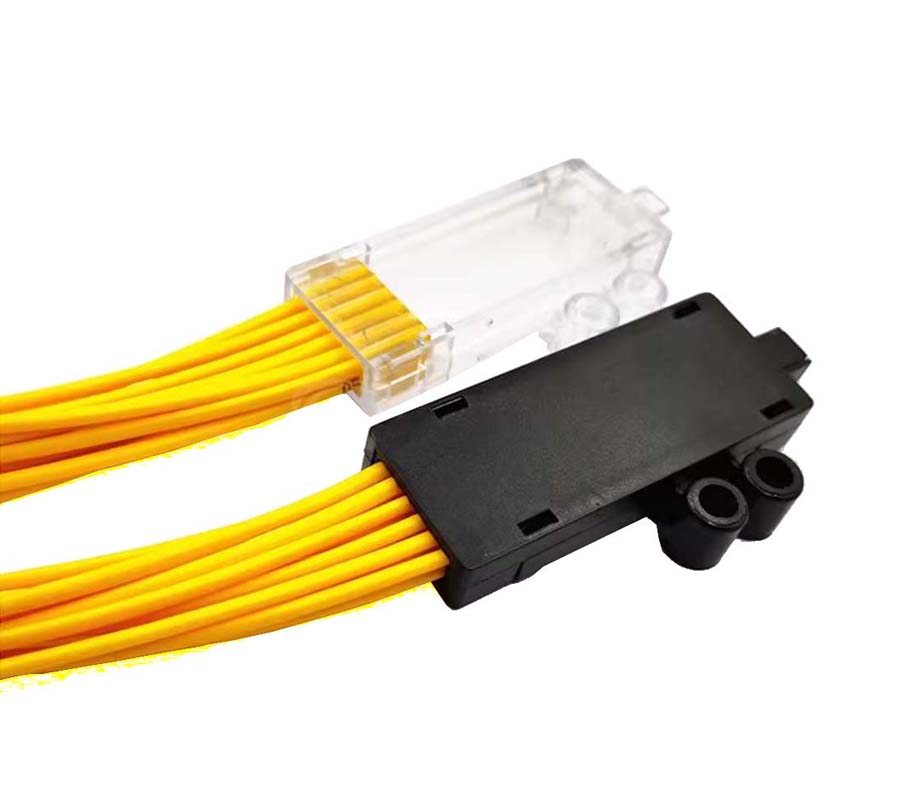

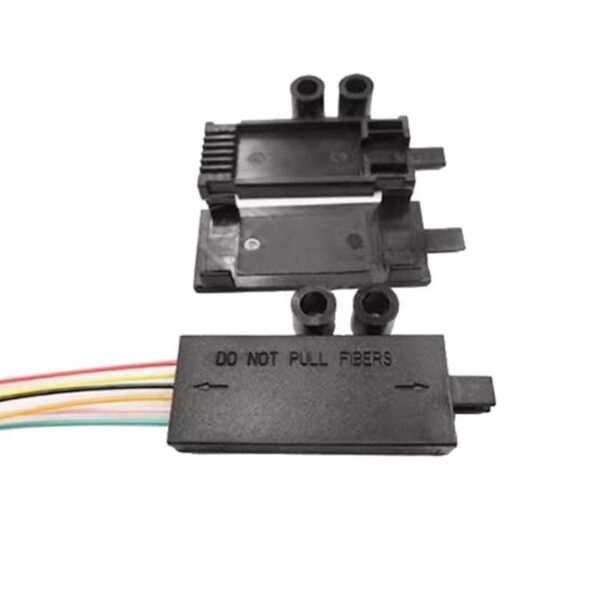

For bundle cable suggest to use below types of fankout kits, one side for bundle feeder cable, the other side fanout into 2mm pigtails, 0.9mm pigtails can be ok.
For better pulling strength, suggest to add glue inside.

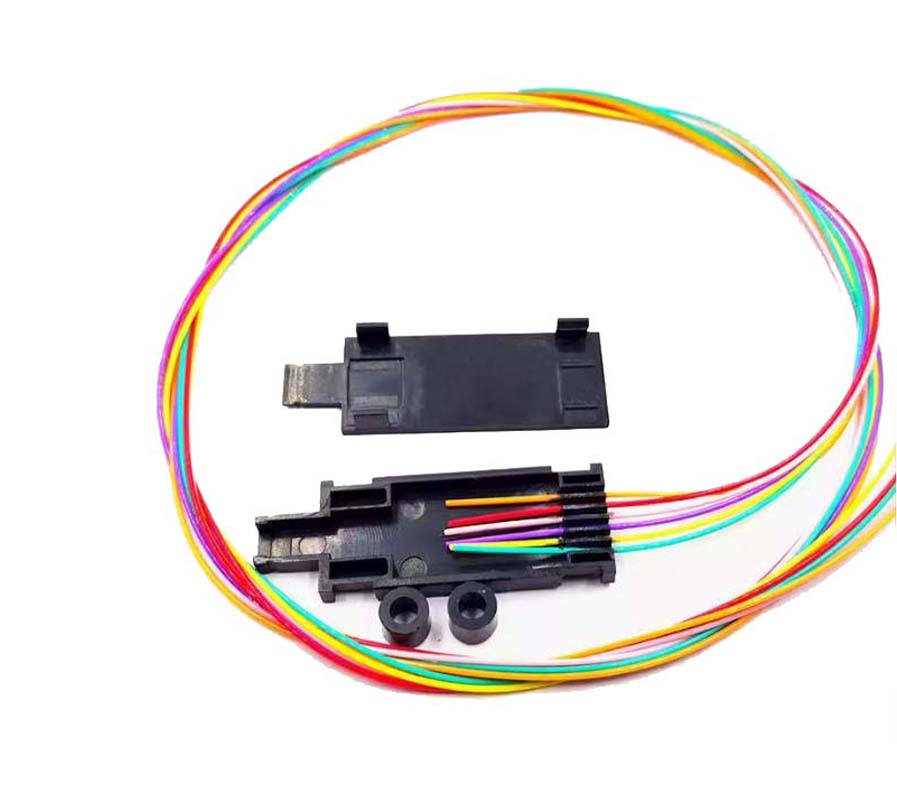

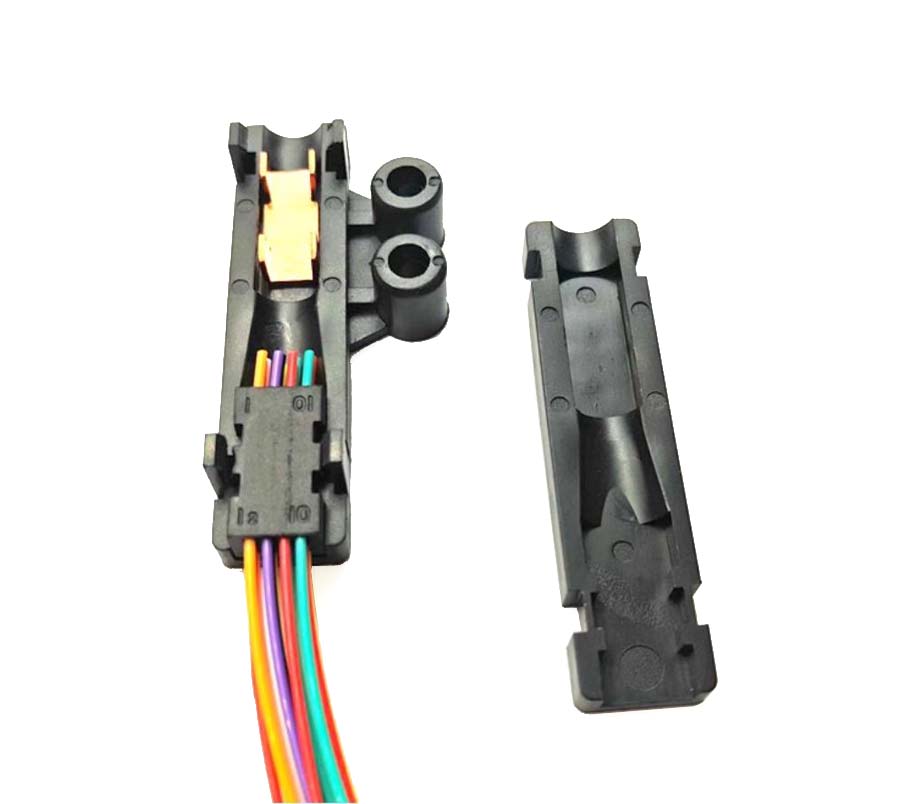

For ribbon cable, suggest to use below types of breakout kits, it can fanout the ribbon cable into 0.9mm or 2mm pigtails one by one too. This type of breakout kit can use for bundle cable too.
