Description

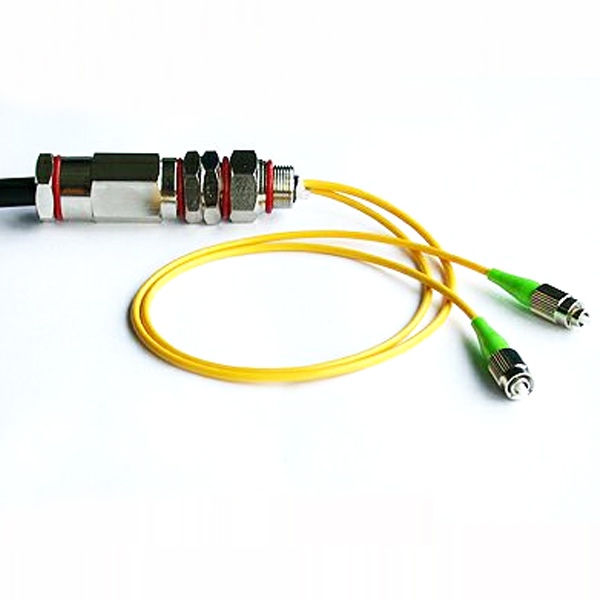

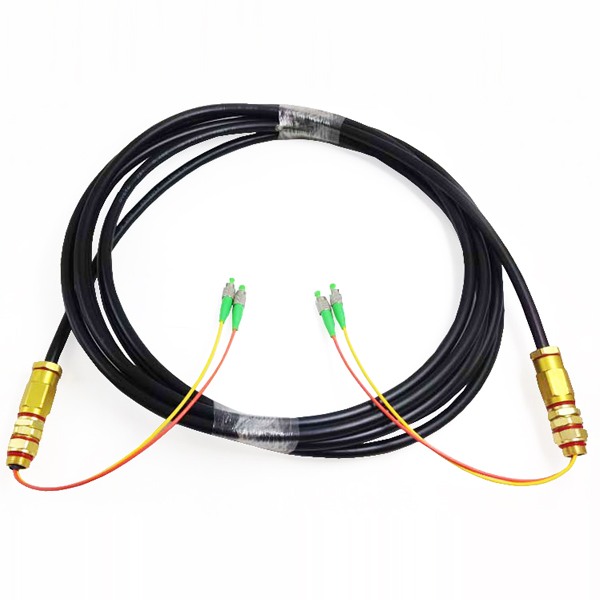

Waterproof drop cord are widely used in data transmission network, typical types are with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. By adopting the special structure cables and connectors, these fiber cable assemblies are widely used in CATV and other applications.
Features of Duplex Service Drop Wire
- Fiber core: 2, 4, 6, 8,12 optional;
- Waterproof features & reliable performance;
- Pull & erosion resistance, good grounding;
- Low insertion loss, high return loss, excellent exchange-ability, high stability;
- The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.
Specification
| Parameter | Unit | Water-proof fiber Patch cord | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
| Operating wavelength | nm | 1310, 1550 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ℃ | -40~75 | |||
| Storage temperature | ℃ | -45~85 | |||
| Inner Cord diameter | mm | φ3.0,φ2.0,φ0.9 | |||
| Fiber cores | Cores | 4, 6, 8, 12, 24, … fibers | |||
| Applicable connector | FC, SC, ST, MU, LC | ||||
| Waterproof connector material | Aluminum or copper optional. | ||||
