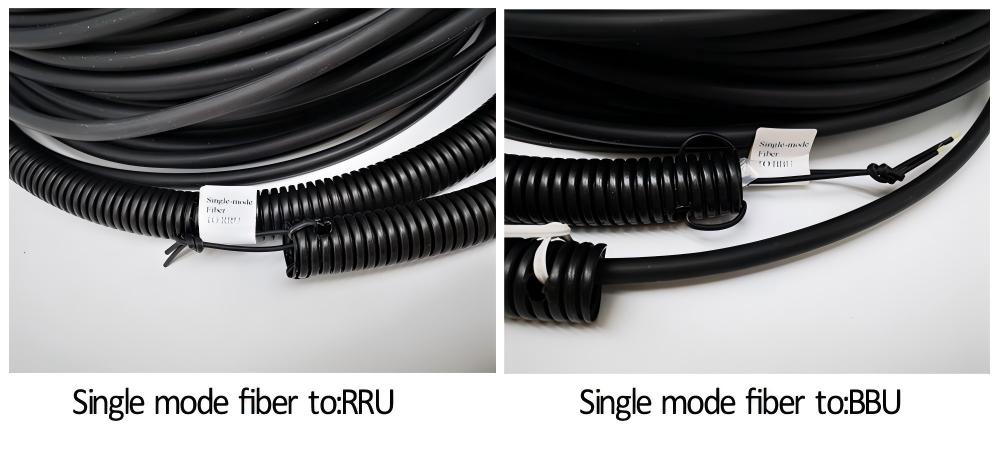

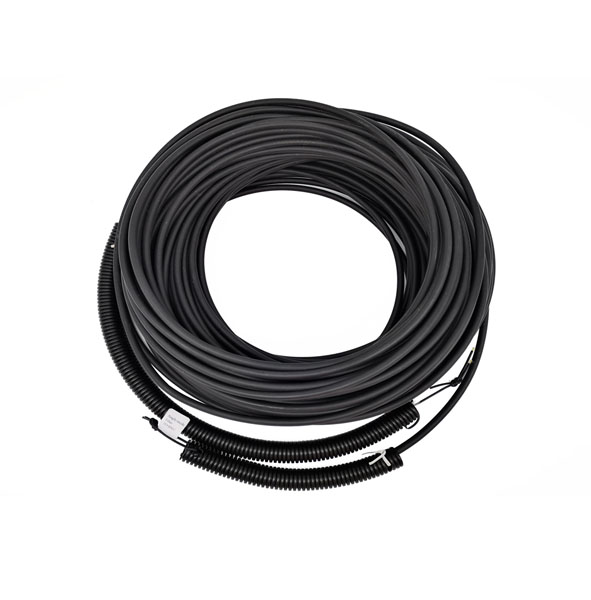

FTTA cable assembly use 2 core armored cable with dual LC connectors, using field tactaical φ 7.0mm GJFJV cable, with LSZH jacket, black color. Both ends are in the form of branch armor, with LC / SC / FC / ST optical fiber connectors. In some application, will add pulling eye at both sides which are made from corrugated pipe or woven net outside of the connectors to protect and strengthen it during pulling in duct or pipes.
| Item | Parameters | ||
| Fiber mode | Single mode | Multi mode | |
| Polish mode | UPC | APC | PC |
| Insertion loss | ≤0.2dB | ≤03dB | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥35dB |
| Operating wavelength | 1310, 1550nm | 850nm, 1300nm | |
| Test wavelength | 1310, 1550nm | 850nm, 1300nm | |
| Repeatability | ≤0.1dB | ||
| Interchangeability | ≤0.2dB | ||
| Durability | ≤0.2dB | ||
| Fiber Length | 1m, 2m….. any length optional | ||
| Length and tolerance | 10cm | ||
| Connector type | SC FC LC ST, etc. | ||
| Operating Temperature | -40C ~ +85C | ||
| Storage Temperature | -40C ~ +85C | ||
GYFJH 7.0mm field cable are mainly used in wireless base station horizontal and vertical cabling, aerospace & defence, equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX, WIMAX, BBU, RRU, RRH, LTE applications.

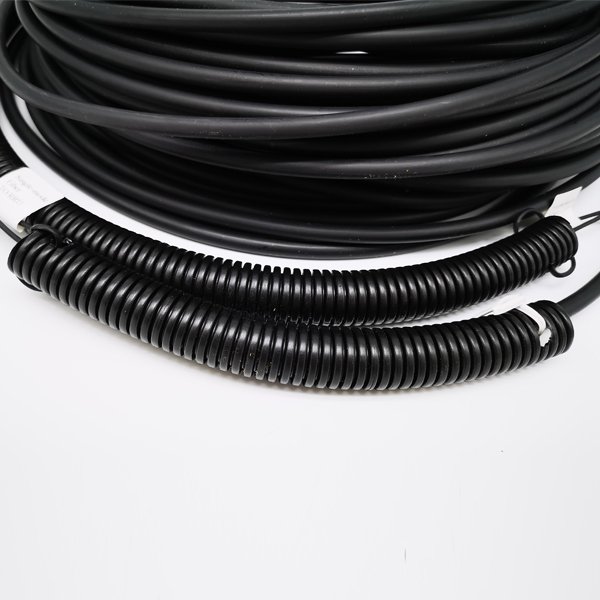

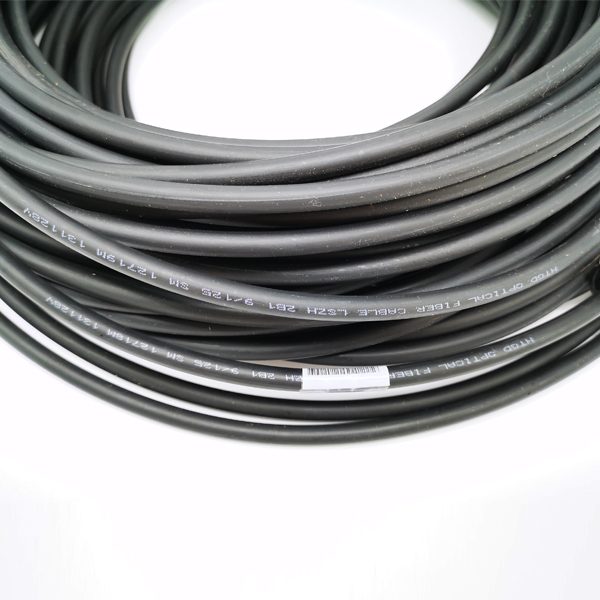

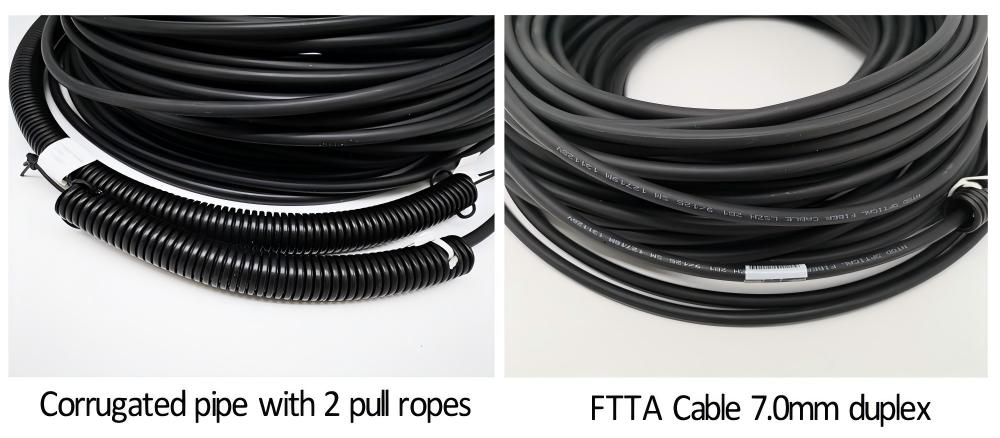

The corrugated tubes for pulling and protection of the dual lc connectors inside, and there is cable printing per meter, which describe the cable specifications like length, fiber type, fiber count, cable diameter, cable sheath, manufacturer date, etc.

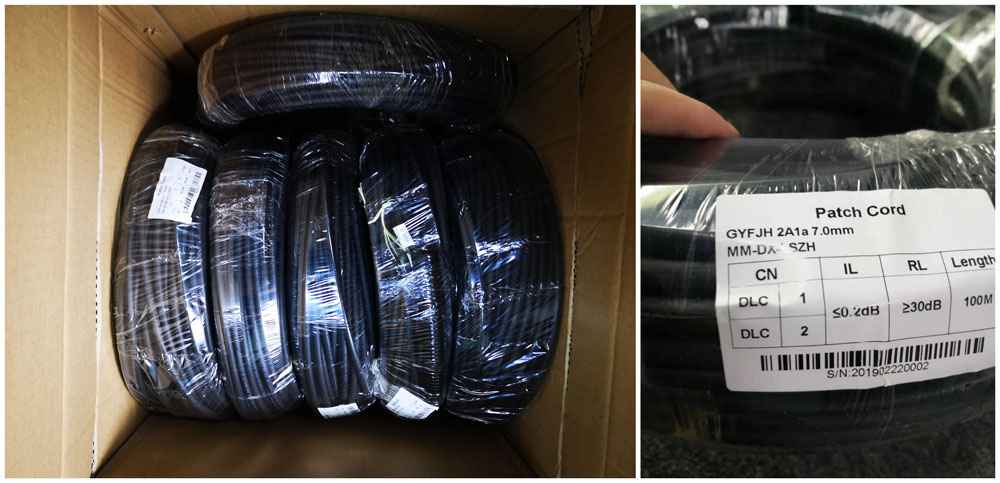

If customer not specify, we will wrap each piece of FTTA patch cord with plastic flim, and then in carton box for shipping. Each FTTA patch cord are tested and qualified, with test data on the sticker. The serial number is traceability for you if any questions after sales.
EXW, FOB, CFR, CIF, DDU, DDP, CPT are optional.
TT, Paypal, Escrow, Alipay, Wechat are optional, no credit.
Yingda accept small bulk order, and sample order. If retailer, please consult our fiber optic distributor in local.
Yingda support team working time: 9am-18pm from Monday to Friday, but AI robot will be always online, you can leave message, will get back to you on the first sight your mails.
If urgent, please CHAT ON WhatsApp:+8618688982406
Yingda productivity is high efficiency, very fast. Normally 2-15 days on different quantity. Let's talk for more details.
Yes, we can do pack or assembly like your requirements, please specify details in purchase order.
High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.
High-precision testing equipment and top industry quality control system ensure high quality standards.
Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
The more details, the better offer, will reply you in 24 hours.
