Ip68 Outdoor Pole Mount 8 Port Ftth Splitter Box For 1×8 Passive Splitter Steel Tube, With Splice Tray For Splicing And Splitting, 2 Uncut Cable Ports with Corning Adapter

Description

Features of FTTH Splitter Box

• Box is total enclosed with screw rod + 4 brackets
• High quality PP+GF plastic, with strength strips on lid or bottom
• Anti-UV, Ultra violet and rainfall resistant, protection class IP68
• fusion splice 48 cores single fiber with 4 trays
• 1×8 splitter module steel tube type can be used
• Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
• Support mid span termination, easy operation and installation

Specification

Detailed Display of FTTH Splitter Box

This FTTH optical splitter distribution box is a high-performance, ruggedized solution engineered for outdoor/indoor fiber optic network deployment, designed to streamline fiber termination, splitting, and distribution in FTTH/PON architectures. It box features a UV-stabilized, IP65-rated PP+GF (Modified polymer plastic + Glass fiber) composite housing—impact-resistant, weatherproof, and capable of withstanding extreme temperatures, ensuring long-term reliability in harsh outdoor environments (e.g., aerial, wall-mounted, or underground installations). The hinged, lockable lid (with secure latching mechanism) provides enhanced security against tampering and environmental ingress.

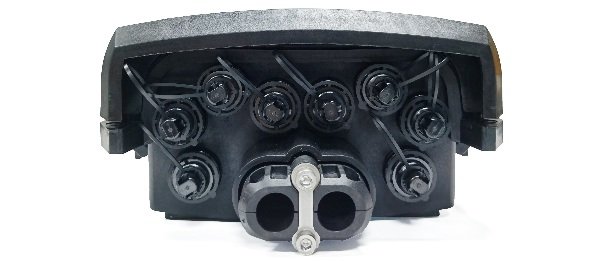

The multi-port cable gland (or sealed adapter) assembly supports multiple fiber cable types (e.g., 2-core, 4-core drop cables; distribution cables up to 12/24 cores) with IP-rated seals, preventing water/dust penetration while enabling flexible cable routing.

It integrates a PLC splitter (configurations typically like 1×8 steel tube splitter) with low insertion loss (<0.3dB) and high uniformity (<0.2dB), ensuring consistent signal distribution across subscriber lines.

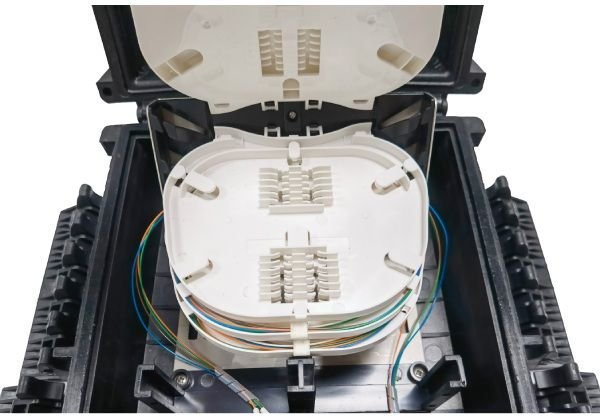

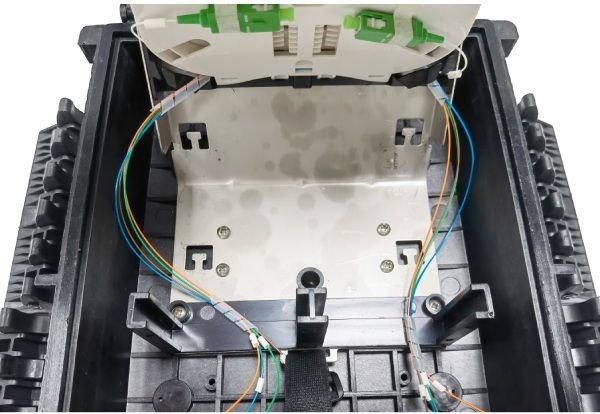

Equipped with SC/APC adapter ports (pre-installed, dust-capped) for quick subscriber fiber connections, paired with a splice tray that accommodates fusion splices (up to 48 fibers, depending on the model) with dedicated fiber routing channels, slack storage, and strain relief to protect delicate fiber optic cables.

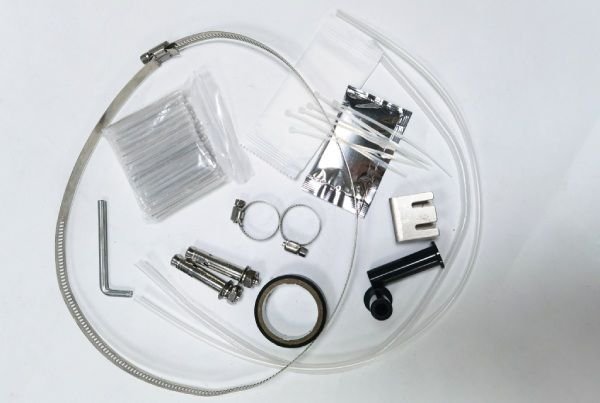

Kit Components & Specifications:

• Flexible Metal Conduit: A corrugated stainless steel protective tube (with end fittings) designed to shield delicate fiber cables from physical damage (abrasion, impact) during routing—ideal for indoor/outdoor cable management in tight or high-risk installation environments.
• Heat Shrink Tubing: A pack of polyolefin heat shrink sleeves (pre-cut for consistency) for insulating and securing fiber splices, providing environmental sealing (moisture/dust resistance) and mechanical protection post-splicing.
• Cable Clamps & Fasteners: Two stainless steel hose clamps (adjustable) and a set of threaded bolts/nuts for securing cables, conduits, or equipment components to mounting surfaces—ensuring stable, vibration-resistant installations.
• Sealing Gasket: A rubber O-ring (or foam gasket) with weather-resistant properties, intended to enhance the IP-rated seal of enclosure lids or cable entry points, preventing water/dust ingress in outdoor deployments.

• Precision Tools & Accessories:
  • An L-shaped hex key (allen wrench) for tightening fasteners on equipment enclosures.
  • Transparent plastic tubing (flexible) for guiding fiber strands during routing or slack management.
  • A cleaning kit (likely including lint-free wipes or swabs, packaged in a foil pouch) to maintain fiber connector/end-face cleanliness—critical for minimizing signal loss.
  • A plastic mounting bracket/adapter (E-shaped) for auxiliary component positioning, adding flexibility to installation layouts.

Optional Accessory

SC Connector	Mini SC Adapter	1×8 Mini Splitter
Optical SC APC Connector 2.0mm	With Metal Cover	1×8 SC APC Single Mode
