Outdoor Ip65 1×8 Fiber Optic Splitter Box With Reinforced Mini Sc Adapter, 1 Cable Gland Pg13

Description

Features of Fiber Optic Splitter Box

• Total enclosed with key and 2*buckles, round shape at back, light weight, compact size;
• High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
• Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
• Cable, pigtails are running through own path without disturbing each other;
• 2splice tray with cover, bottom for 2pcs 1X8 and 1pc 1×16 steel tube plc splitter fitting, top for max. 24cores fusion;
• Bottom is for feeder cable entry and routing, large area, easy for maintenance and installation;
• Outdoor Wall mount or pole mount, IP65 protection class
• Laser mark and logo print reserved on the lid

Specification

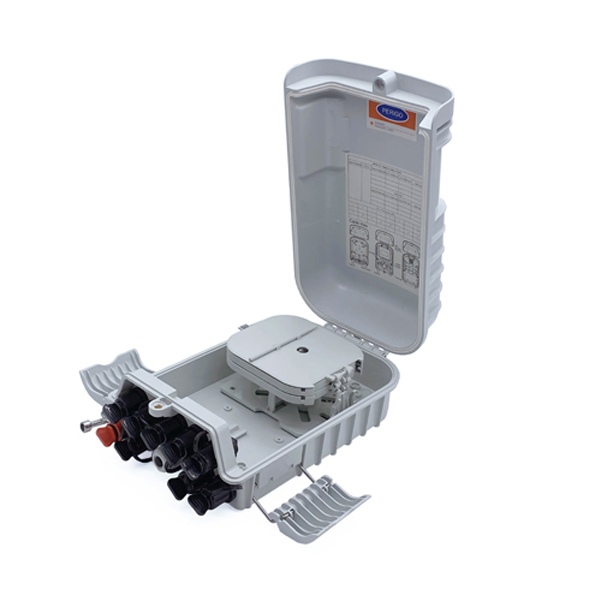

Detailed Display of Fiber Optic Splitter Box

The box features a dual-security lock design: secured by a unique key and 2 buckles on both sides. This ensures anti-theft protection while remaining easy to open/close. It meets IP65 waterproof and dustproof standards and has anti-UV properties, making it suitable for outdoor environments.

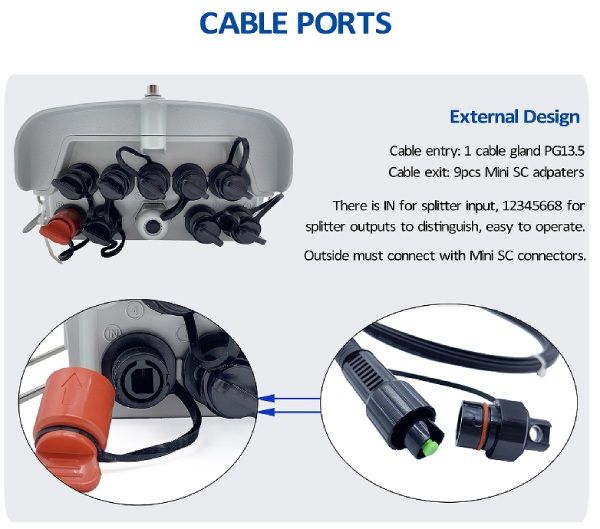

It features 1 cable gland (model PG13.5) for the input fiber as its cable entry, while its cable exit consists of 9pcs Mini SC adapters—these are labeled with “12345678” for the output ports and “IN” to mark the input port, which ensures clear identification and straightforward operation; it’s important to note that external connections to this box need to use Mini SC connectors that pair with these adapters.

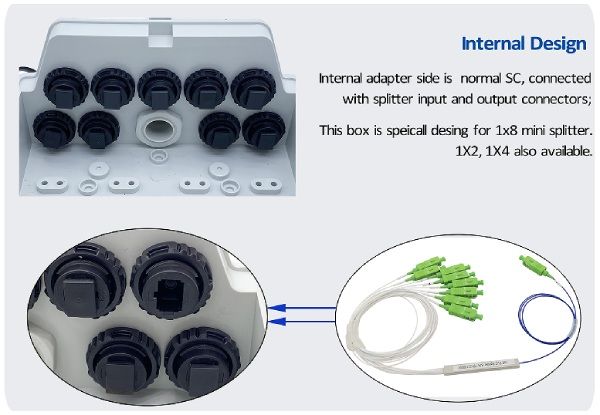

For the Internal Design, the box incorporates standard SC connectors as its internal adapters, which seamlessly pair with the input and output connectors of the fiber splitter. While the box is purpose-built to accommodate a 1×8 mini fiber splitter, it also offers compatibility with 1×2 and 1×4 splitters for added flexibility.

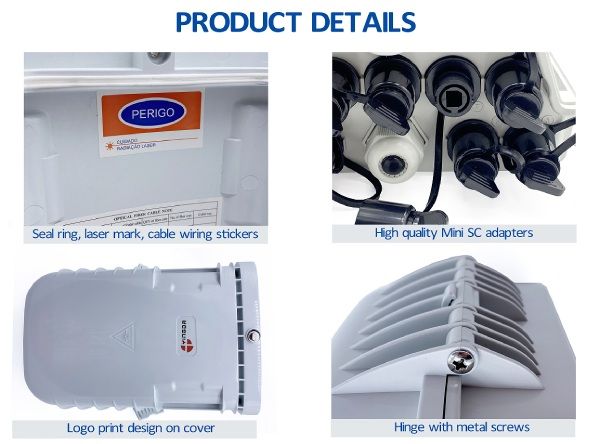

As for other details, the box features an IP65-rated seal ring, laser marks, and cable wiring stickers for organization; it includes high-quality Mini SC adapters, a metal-screwed hinge for durable cover attachment, and a logo print with relevant labels on the cover.

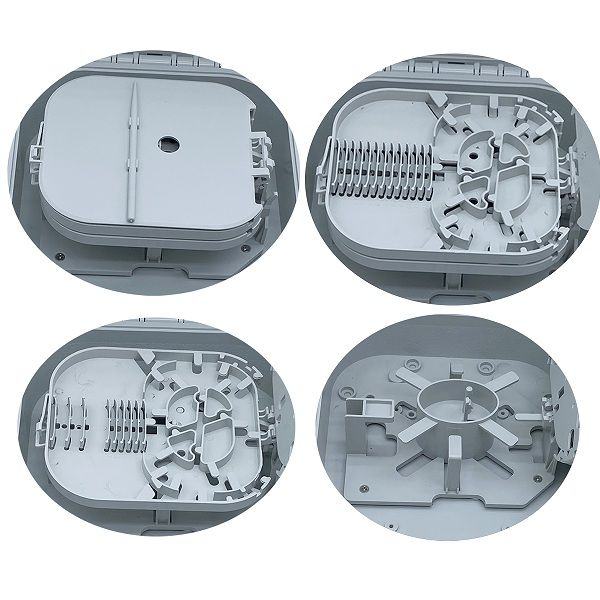

• Fiber management:
  • Splice tray (top-right): Curved, slotted; secures splices (heat-shrink sleeves) and organizes slack (grooves prevent signal loss).
  • Routing guides/clips: Tangle-free fiber/pigtail/patch cord organization (all internal panels).
• Splice/adapter zones:
  • Bottom-left: Slots for cable sheath fixation + splice protection spaces.
  • Bottom-right: Central hub (for 1×8 mini splitter/adapter panel) + component-securing tabs.
• Functionality:
  • Cable entry: Central port (paired with gland) for input fiber.
  • Durability: Reinforced plastic structure; internal design protects fibers via controlled routing.
• Use case: All-in-one splicing/splitting/distribution unit (suitable for indoor/outdoor FTTH deployments).
