Description

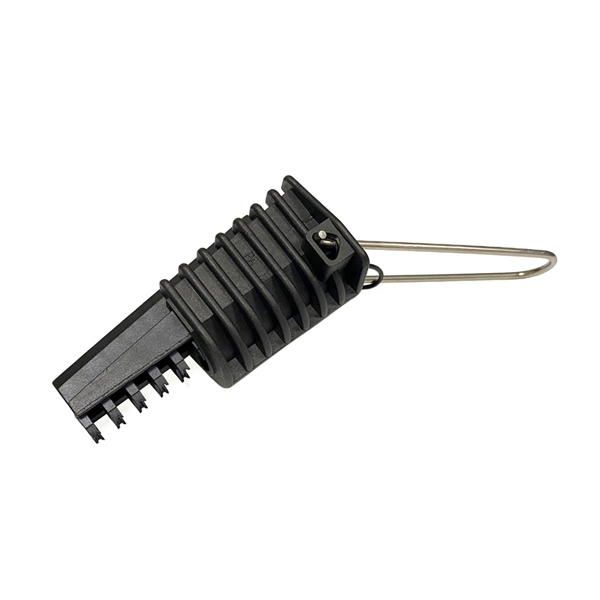

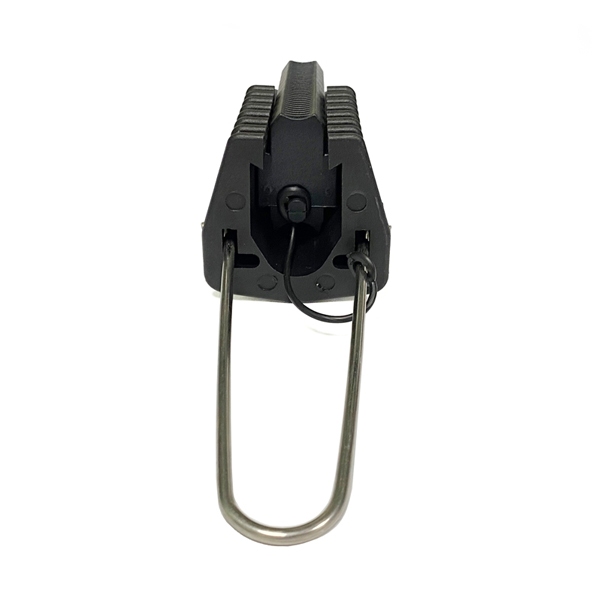

Suspension Clamp Structure
- An open body
- Wedge consisting of two insulating plastics (inserts) ensuring the clamping of the messenger cable without damaging cable insulation.
- An unloose stainless steel flexible wire rope equipped with a movable thimble and two sleeves compressed at the end of the wire rope to be locked at the clamp body.
Suspension Cable Clamp Material
The body, wedge and thimble of the clamps are made of high strength reinforced thermoplastic, UV radiant material which was very high mechanical and climatic properties.The pull hook is made from stainless steel.
Specification
| Model | PA0422 |
| Dimension | 210*60*56 mm |
| Breaking load | 2000 N |
| Cable diameter | 4-22 mm |
| Material | PA66 + Stainless steel |
Pack information
| QTY/CTN | CTN SIZE | G.W./CTN |
| 100pcs | 42*28*33cm | 15.4kg |
