Description
Material: Aluminum clad steel
Suspension Clamp Application
Small section steel core aluminum stranded wire, aluminum alloy stranded wire, OPGW optical cable, ADSS optical cable, sewer pipeline optical cable, etc
ADSS Cable Suspension Clamp Features
High grip strength, the cable pre twisted tension clamp used for power transmission circuits has a grip strength of 95%, and the calculated breaking force of the cable is cut
Good corrosion resistance, the pre twisted wire of the tension clamp is made of the same material as the cable, ensuring strong corrosion resistance
Easy installation, no need for any specialized tools, one person can complete on-site installation operation by hand, fast and convenient installation
Strong universality, can be used in conjunction with various hardware fittings.
OPGW Cable Tension Clamp Specification

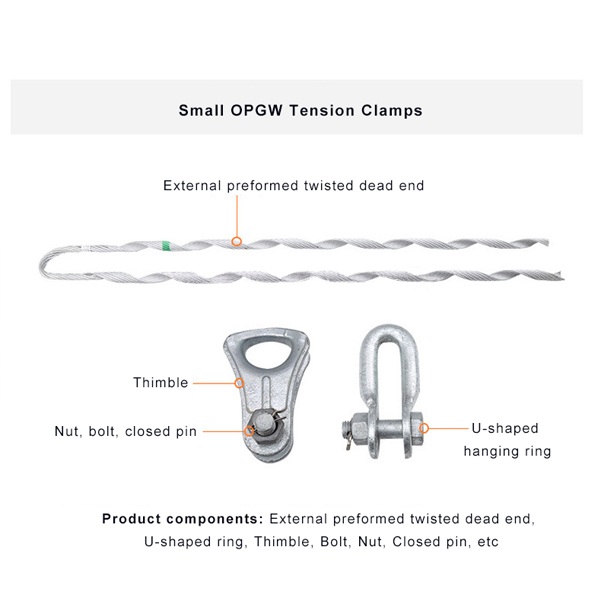

- Single tension clamp
| Rated tensile strength RTS (KN) | Diameter range (mm) | Inner twisted wire length L2 (mm) | Outer twisted wire length (mm) | Unfolding length of outer twisted wire (mm) |
| ≤70 | Ø8.3-10.1 | 1400 | 1000 | 2050 |
| Ø10.2-11.4 | 1400 | 1000 | 2050 | |
| Ø11.5-12.8 | 1400 | 1000 | 2050 | |
| Ø12.9-14.1 | 1400 | 1000 | 2050 | |
| Ø14.2-15.5 | 1400 | 1000 | 2050 | |
| ≤90 | Ø8.3-10.1 | 1500 | 1100 | 2250 |
| Ø10.2-11.4 | 1500 | 1100 | 2250 | |
| Ø11.5-12.8 | 1500 | 1100 | 2250 | |
| Ø12.9-14.1 | 1500 | 1100 | 2250 | |
| Ø14.2-15.5 | 1500 | 1100 | 2250 | |
| Ø15.6-17.2 | 1500 | 1100 | 2250 | |
| ≤100 | Ø8.3-10.1 | 1600 | 1200 | 2400 |
| Ø10.2-11.4 | 1600 | 1200 | 2450 | |
| Ø11.5-12.8 | 1600 | 1200 | 2450 | |
| Ø12.9-14.1 | 1600 | 1200 | 2450 | |
| Ø14.2-15.5 | 1600 | 1200 | 2450 | |
| Ø15.6-17.2 | 1600 | 1200 | 2450 | |
| ≤120 | Ø11.5-12.8 | 1700 | 1300 | 2650 |
| Ø12.9-14.1 | 1700 | 1300 | 2650 | |
| Ø14.2-15.5 | 1700 | 1300 | 2650 | |
| Ø15.6-17.2 | 1700 | 1300 | 2650 | |
| ≤140 | Ø12.9-14.1 | 1800 | 1400 | 2850 |
| Ø14.2-15.5 | 1800 | 1400 | 2850 | |
| Ø15.6-17.2 | 1800 | 1400 | 2850 | |
| ≤160 | Ø14.2-15.5 | 1900 | 1500 | 3050 |
| Ø15.6-17.2 | 1900 | 1500 | 3050 | |
| Ø17.3-19.1 | 1900 | 1500 | 3050 | |
| ≤200 | Ø14.2-15.5 | 2300 | 1700 | 35000 |
| Ø16.1-16.6 | 2400 | 1800 | 3700 | |
| Ø17.6-18.2 | 2500 | 2100 | 4250 |

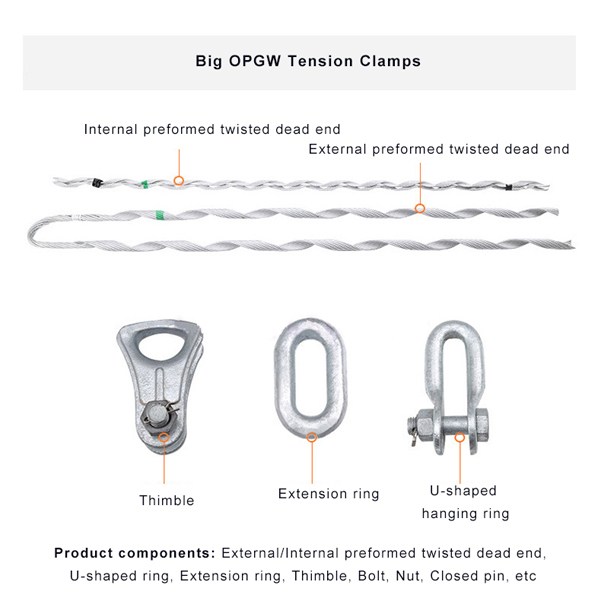

2. Double tension clamp
| Rated tensile strength RTS (KN) | Diameter range (mm) | Inner twisted wire length L2 (mm) | Outer twisted wire length (mm) | Unfolding length of outer twisted wire (mm) |
| ≤120 | Ø9.6-12.5 | 2000 | 1400 | 1200 |
| Ø13.2-14.6 | 2200 | 1600 | 1400 | |
| Ø15.2-16.6 | 2400 | 1800 | 1600 | |
| ≥150 | Ø15.2-16.6 | 2200 | 1700 | 1500 |
| Ø17.6-18.2 | 230 | 18000 | 1600 |
Ordering Information
- Corresponding cable diameter
- Grip strength or span
Installation steps of tension clamp
- Align the installation mark of the outer wire with the optical cable and make the installation mark
- Align the installation marks of the first set of inner wire ends with the optical cable and wrap it around
- The other groups of internal threads are operated in the same way as the first group
- Install all the internal wires completely
- Align the outer wire installation mark with the inner wire installation mark
- Wrap a leg inside and wrap it up
- Wrap the outer thread end properly
- The installation of the tension clamp is completed
