Description
Fiber optic patch cord are used as jumper wires from equipment to fiber optic cabling links. It has a thick protective layer and is generally used for the connection between optical terminals and terminal boxes. It is applied in some fields such as fiber optic communication systems, fiber optic access networks, fiber optic data transmission, and local area networks.

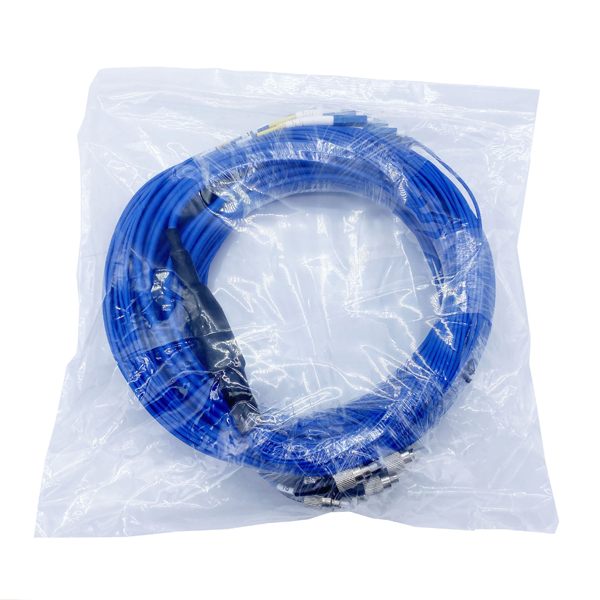

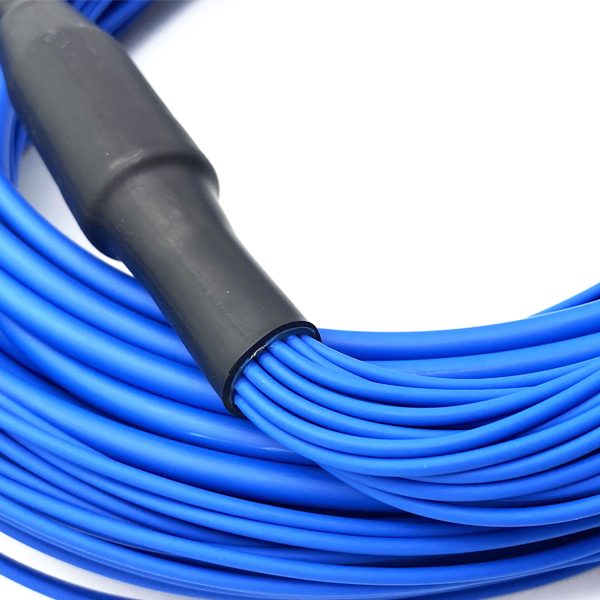

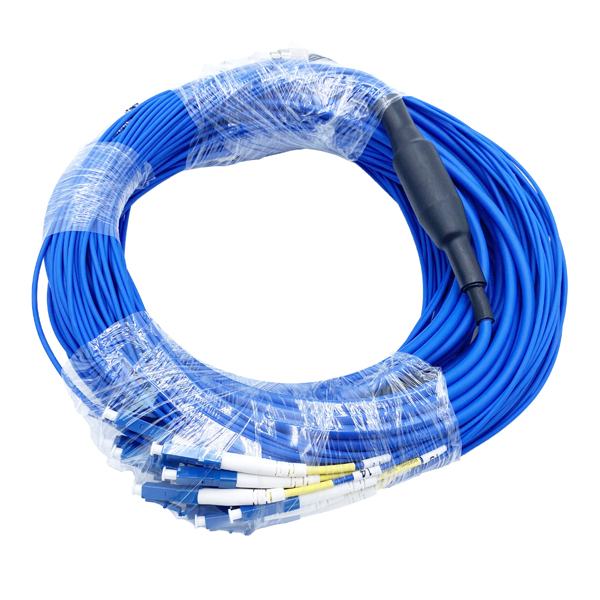

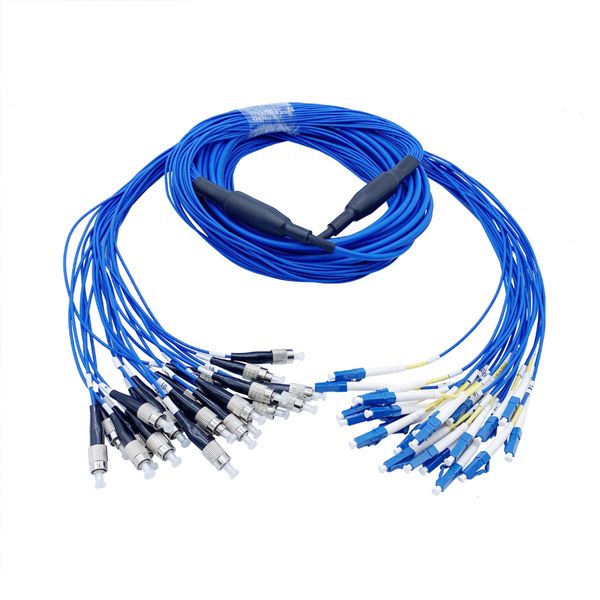

Armored patch cord is fiber patch cord with armored strength member, it can be armored cable 1 core, 2 core, 4 core… 24 cores or more, and the armored normally is Generally spiral corrugated armo, there are many structure as below:
Fiber Patch Cord Specification
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc |
| Cable jacket | LSZH, PVC, PE, TPU, etc |
| Polish manner | UPC, APC（8°）, PC |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Single Fiber Armored Indoor Cable Specification
| Out Diameter | Tight buffer Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
| （MM) | （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） |
| 2.8 | 0.6 | 18.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
| 3.0 | 0.6 | 18.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
