Description

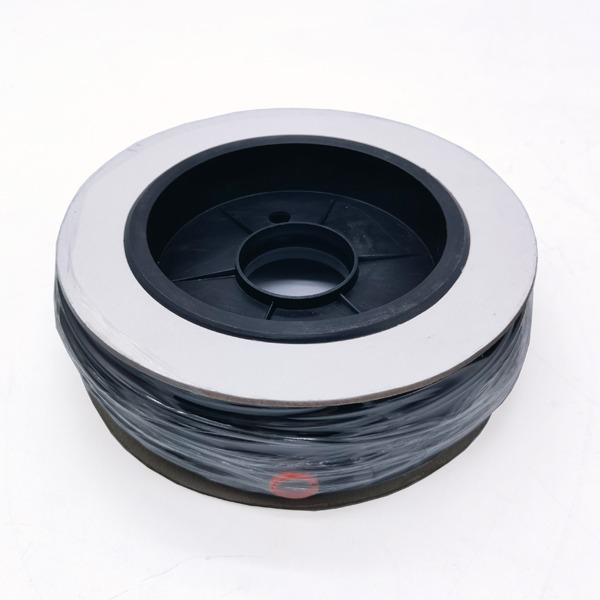

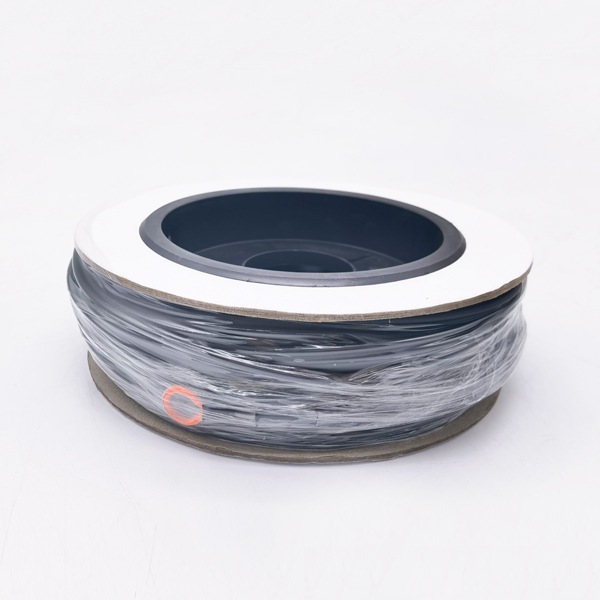

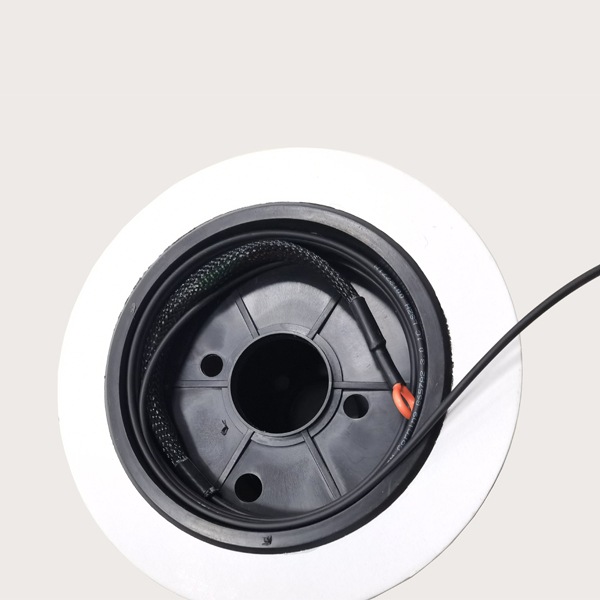

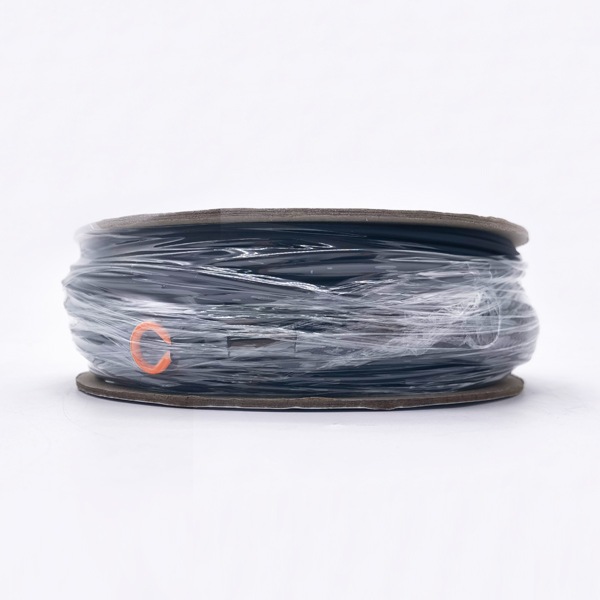

Features of Armored Fiber Optic Patch Cord
- Good mechanical and environmentalcharacteristics;
- Soft, flexible, solid, easy to splice, especially applied to optical long-distance, field, building wiring, trunking connectors;
- Flame retardant characteristics and the meet the requirements of relevant standards;
- Can be use for all kinds of optical connectors SC LC ST FC etc;
- Single mode fiber, multimode fiber both ok;
- Widely used in optical communication equipment rooms and optical distribution frames.
Connector Specification
| Connector | SC/APC |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A1 |
| Cable jacket | LSZH, PVC |
| Cable type | Simplex Φ3mm |
| Polish manner | PC（8°） |
| Cable color | Yellow, white, blue |
| Fiber radius of curvature | ≥ 30 mm (G.652D); ≥ 15 mm (G.657A1) |
| Insertion Loss | ≤ 0.3dB (Standard) |
| Return Loss | APC ≥ 60dB (typ.65dB)–Single mode |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
