Description
AFOP Fiber Attenautor Features
- Low PDL and WDL
- High repeatability and resolution
- Compact size and rugged construction
- Board mount package
- Multi-channel wavelength performance
AFOP Attenautor Technical Parameters
| Parameter | Minimum | Typical | Maximum |
| Wavelength range | 1290nm | 1610nm | |
| Insertion loss | 1.0dB | ||
| Attenuation resolution | 0.1dB | ||
| Wavelength dependent loss(1290-1570nm) | 0.3dB | ||
| Wavelength dependent loss(1520-1610nm) | 0.4dB | ||
| Return loss | 40dB | 45dB | |
| PDL | 0.15dB | ||
| PMD | 0.1ps | ||
| Optical power | 300mW | ||
| Operating temperature range | -5℃ | +65℃ | |
| Storage temperature range | -40℃ | +85℃ |
Pack Dimension
| 15.9*16*26mm | Fiber length:1meter | Fiber type: 250um bare fiber, 900um buffered fiber, 2 or 3mm cable |
Order Information
| VOA | – | N | 1 | N | N | – | 0 | C | N | NN |
| type | wavelength | buffer | connector | performance | 00-standard | |||||
| 1:single 3:dual | 1:C band 2:L band 3: c&l band 4:o&C band 5:O&C&L band
| 1:250um bare fiber 2:900um loose tube 3:2mm cable 4:3mm cable | A:none K:LC/APC L:LC/PC P:FC/PC 1:FC/APC S:SC/PC T:SC/APC U:MU/PC Z:others | 0:15dB 1:30dB | Running number used for specal types or custom made |
Fiber Attenuator Details

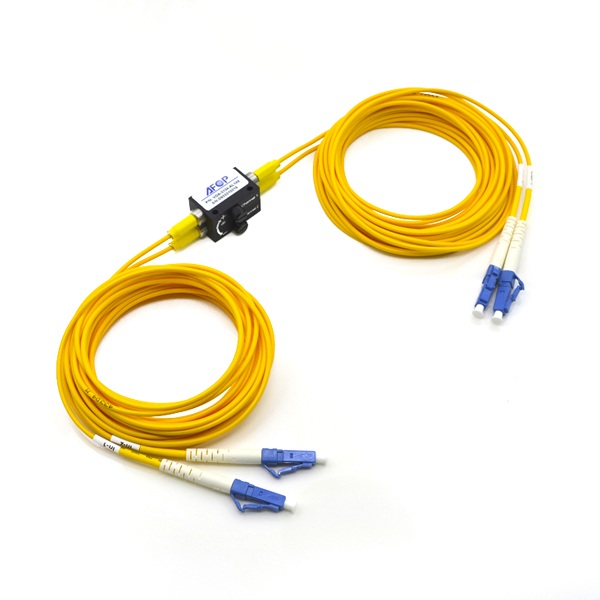

There is part no. and serial number on each mechnical variable AFOP, it is can not changed. If you wanna to buy custom type of LC dupex attenuators made in China type, we can help print your company information there instead.

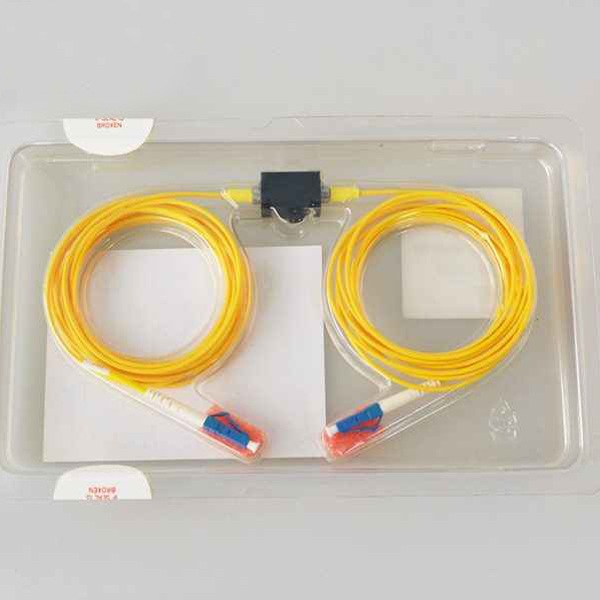

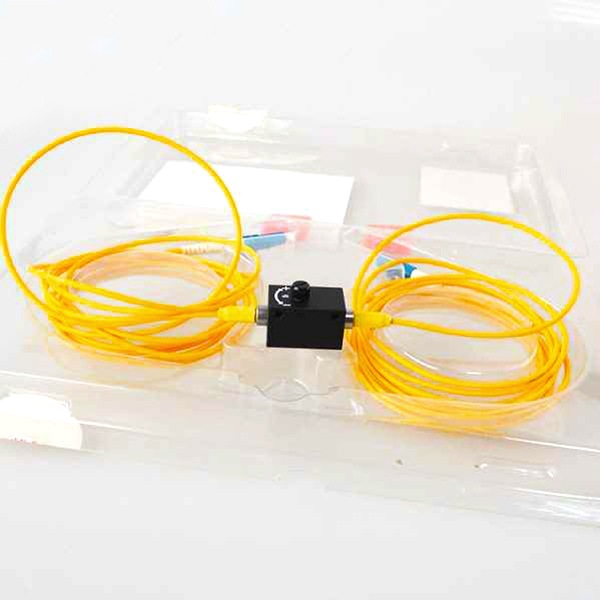

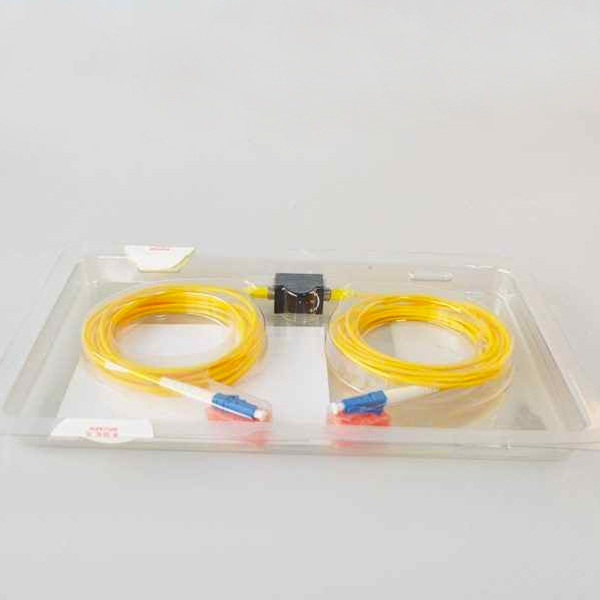

The standard package is blister box, with grooves for variable part and lc duplex connector and winding areas, it is totally sealed after qualified test. There is test data report on the top of the blister box to indicate the insertion loss, attenuation range, RL, PDL, WDL, attenuation value, TDL, torque, temperature, etc.
