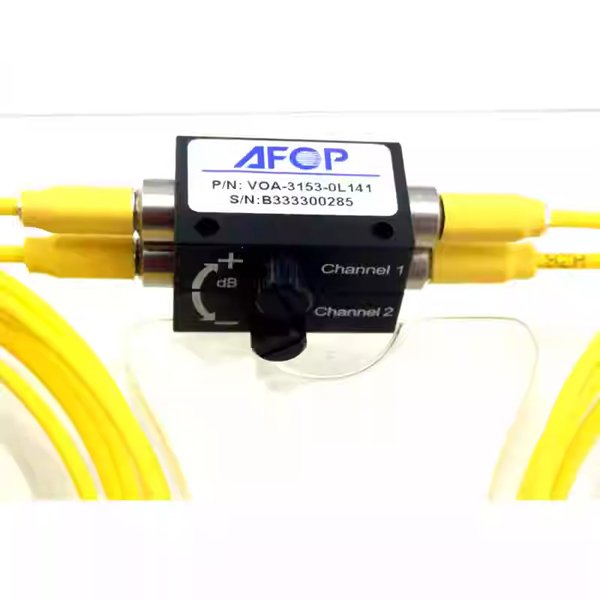

AFOP fiber optic attenuator LC duplex connectors, 1290nm ~1610nm, 2mm with LSZH yellow cable 1 meter

AFOP offers a high performance manual variable optical attenuator VOA designed for DWDM applications. The manual VOA offers stable performance over temperature, wavelength, and high resolution throughout the attenuation range. These components provide low minimum insertion loss and are designed for flat wavelength characteristics across the wide wavelength region. AFOP attenuator products have low polarization dependent loss and low wavelength dependent loss. The manual VOA is also available to meet customer specific requirements.

Description

Features

  • Low PDL and WDL
  • High repeatability and resolution
  • Compact size and rugged construction
  • Board mount package
  • Multi-channel wavelength performance



Specification

ParameterMinimumTypicalMaximum
Wavelength range1290nm 1610nm
Insertion loss  1.0dB
Attenuation solution  0.1dB
Wavelength dependent loss(1290-1570nm)  0.3dB
Wavelength dependent loss(1520-1610nm)  0.4dB
Return loss40dB45dB
PDL  0.15dB
PMD  0.1ps
Optical power  300mW
Operating temperature range-5℃ +65℃
Storage temperature range-40℃ +85℃
