Description
Features
- Made of stainless steel raw materials, never rusts, long lasting, acid and corrosion resistant, good fire resistance, high tensile strength, suitable for various indoor and outdoor environments, and has no worries after installation.
- The lock head adopts steel ball self-locking to prevent stepping back, firmly locked,durable and refine quality.
- Thickened buckle head, clear thread, deepened slot without slipping, strong bearing capacity, more sturdy and durable.
- Stainless steel zip ties with adjustable buckles, can be loosened or retracted, and can be reused.

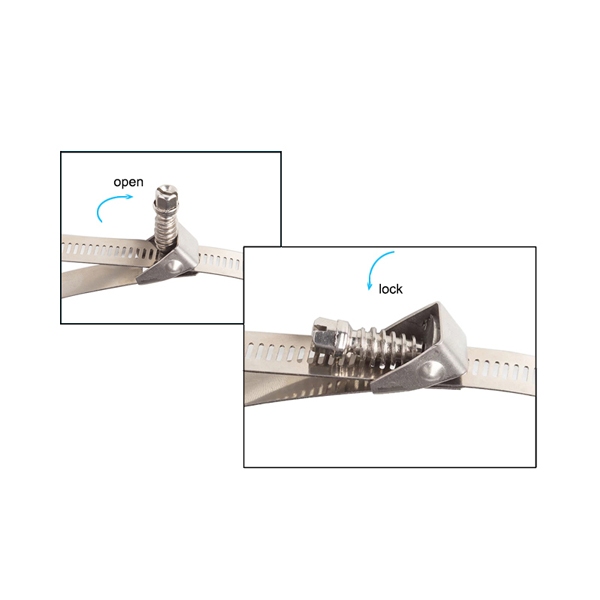

- Compared to self-locking stainless steel cable ties, it is more convenient to disassemble, only simply loosen the screws and open the lock, convenient and fast to use.
- Development style flip interface, universal slot for inner straight groove, hexagonal design for outer corner, with a bright appearance.
- The surface of the throat clamp is smooth and shiny, avoiding metallic luster, and remains shiny even after long-term use.
- The through-hole process can ensure the button and pressure resistance during product use, secure locking, and long service life.
- Non-standard size customization, diverse specifications, customized according to drawings.
Application
Binding cables, pipelines, ships, chemicals, and brackets, etc
Specification
| Model | ABC125 | ABC140 | ABC180 |
| SS strip width (mm) | 12.5 | 14 | 18 |
| SS strip depth (mm) | 0.4, 0.6, 0.7 | ||
| SS strip length (mm) | 200, 300,…1800 | ||
| Pole diameter (mm) | 55,71,87,…, 2221 | ||
| Installation torque (Nm) | 4.0 | ||
| Material | Stainless Steel 201, 304 | ||
| Color | Stainless steel natural color | ||
| Surface treatment | Polishing treatment | ||

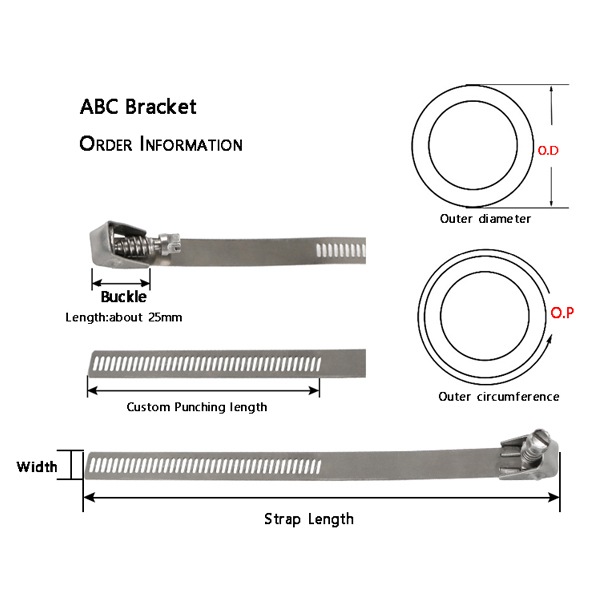

Note: Outer diameter refers to the outer diameter size and circumference of the applicable pipe
The commonly used specifications are as follows:
| 1.2” tube/pipe | 21-44 mm | Note： 1inch =25.4mm |
| 1.5” tube/pipe | 27-51 mm | |
| 2” tube/pipe | 40-63 mm | |
| 2.5” tube/pipe | 59-82 mm | |
| 3” tube/pipe | 72-95 mm | |
| 4” tube/pipe | 105-127 mm | |
| 5” tube/pipe | 130-152 mm | |
| 6” tube/pipe | 155-178 mm | |
| 8” tube/pipe | 213-235 mm |
