Description
Stainless Steel Straps Features
- Stainless steel has good anti-corrosion and anti-oxidation functions, and different grades of stainless steel can adapt to various environments;
- The surface of the steel strip is marked with a metric mark every 10cm. The user can use the mark to accurately measure the required length, improve construction efficiency and reduce waste;

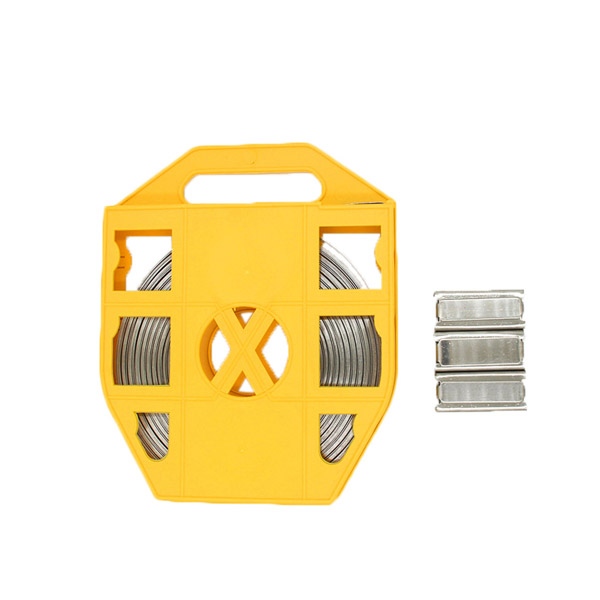

- It needs to be used with stainless steel buckles;
- It can provide up to 1.5 tons of bundle tension;

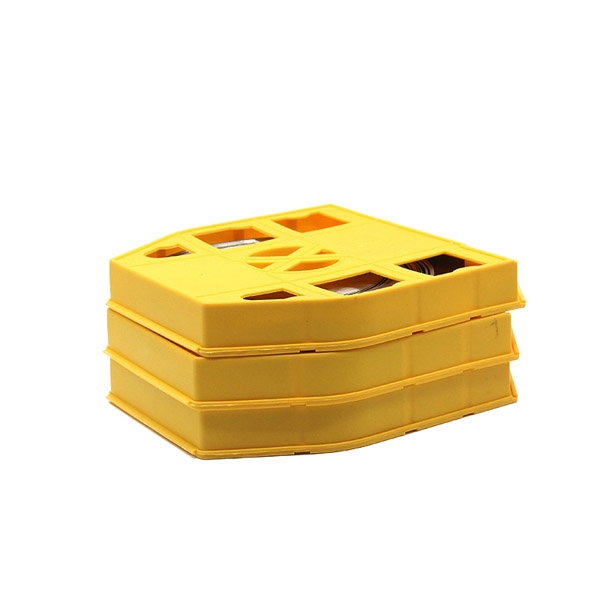

- Economical carton or portable plastic box package can be available;
- Materialcan be stainless steel 201, 304, or 316 upon request.
Stainless Steel Band Application
Cut into straps to bundle kinds of materials for transport, storage, or secure other items like cables or wires to pipes or poles.
Optional Dimension
| Item | SS-07 | SS-08 | SS-09 | SS-10 | SS-12 | SS-12.7 | SS-16 | SS-19 | SS-25 | SS-32 |
| Width(mm) | 6.4 | 7.9 | 9.5 | 10 | 12 | 12.7 | 16 | 19 | 25 | 32 |
| Thickness(mm) | 0.25/0.3 | 0.25/0.3 | 0.25-0.4 | 0.25-0.4 | 0.25-0.5 | 0.4-1.0 | 0.4-1.0 | 0.4-1.0 | 1.0 | 1.0 |
Installation Procedure
Order information (take width:19mm for example)
| Item | Width | Thickness | Length (meter) | Weight(kg/m) | ||
| mm | Inch | mm | Inch | |||
| SS-0.4*19 | 19 | 3/4(0.75) | 0.4 | 0.016 | 30/50/70 | 0.0608 |
| SS-0.5*19 | 19 | 3/4(0.75) | 0.5 | 0.02 | 30/50/70 | 0.076 |
| SS-0.6*19 | 19 | 3/4(0.75) | 0.6 | 0.024 | 30/50/70 | 0.091 |
| SS-0.7*19 | 19 | 3/4(0.75) | 0.7 | 0.027 | 30/50/70 | 0.106 |
| SS-0.8*19 | 19 | 3/4(0.75) | 0.8 | 0.03 | 30/50/70 | 0.1155 |
| SS-1.0*19 | 19 | 3/4(0.75) | 1.0 | 0.039 | 30/50/70 | 0.152 |
Pack information
| Quantity /carton | Carton size | Gross weight /carton | Package |
| 5pcs | 27*32*19cm | 26.5kg | 30meter
/roll /inner box |
