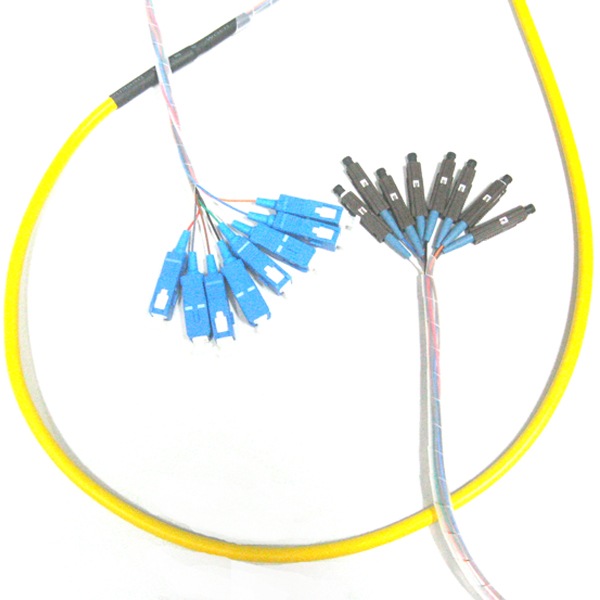

Multi fiber 8 cores SC to MU patch cord,SM 9 125um, fan-out colored pigtails 900um 50cm with sprial buffer tube

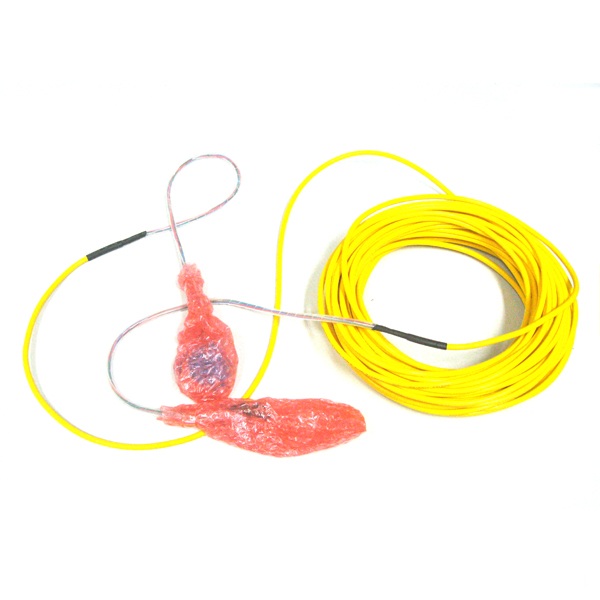

Bundle type multi fiber optic cable is made of 0.9mm tightly wrapped optical fibers wrapped in Kevlar, and then extruded with pressure resistant plastic to protect. The distribution cable assembly will be pre-terminated with sc lc fc st connectors in factory to connect with equipment, fanout pigtails 30cm o5 50cm which will be be protect by heat shrink tubes, and widely used in ftth indoor distribution wiring of optical communications.

Description

Features

  • Good mechanical and environmental characteristics with kevlar yarn;
  • Soft, flexible, solid, easy to strip, splice, especially applied to optical long-distance, field, building wiring, distribution connections;
  • Flame retardant characteristics and ROHS compliance;
  • All kinds of optical connectors SC LC ST FC MU MTRJ MPO MTP E2000 LX.5 FDDI ESCON can be use;
  • Single mode fiber, multimode fiber both ok;
  • Widely used in optical communication equipment rooms and optical distribution frames.



Fiber Optic Connector specification

ItemUnitFC/SC/LCST/MU
Fiber modeSMMMSMMM
Polish methodUPC/APCAPCPCPC/UPCPC
Fiber typeG652D,G657A50/125,62.5/125G652D,G657A50/125,62.5/125
Insertion lossdB≤0.3≤0.3≤0.3≤0.3≤0.3
Return lossdB≥50≥60≥30≥50≥30
Working wavelengthnm1310/15501300(OM1) 8501310/15501300(OM1) 850
RepeatabilitydB≤0.2
VibrationdB≤0.2
Working temperature-40~+75
Storage temperature-40~+85
